Description
Key Technical Specifications

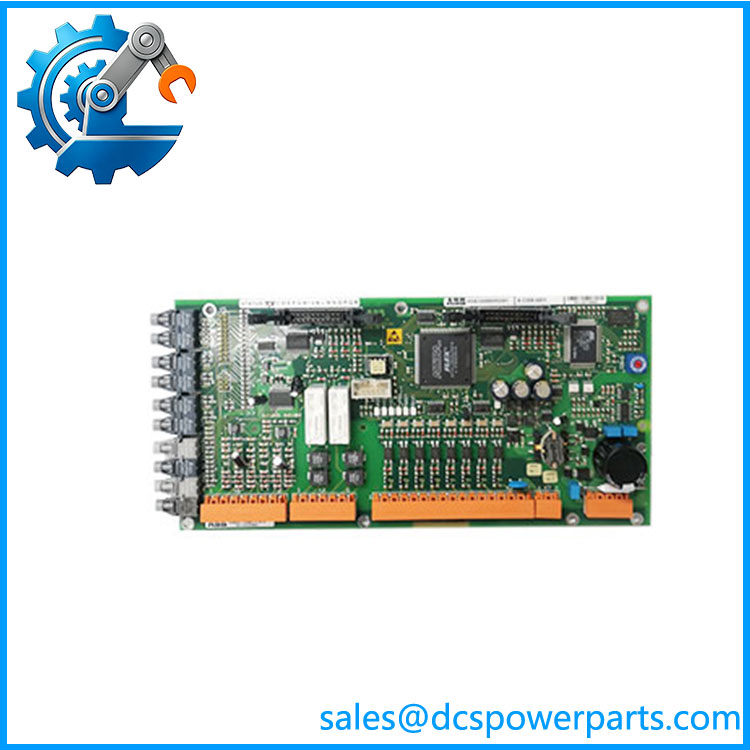

| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | UAC389AE01 |
| Ordering Number | HIEE300888R0001 |
| PCB Marking | UA C389 AE01 |
| Product Type | Control / Interface PCB |
| Functional Association | Pulse amplifier / control interface |
| Application Family | ABB industrial drives / excitation-control equipment |
| Signal Function | Analog and control-interface circuitry |
| Board Construction | Industrial printed circuit assembly |
| Typical Installation | ABB control cabinet / power-electronics system |
Engineering caution: Publicly available descriptions conflict on the exact role of UAC389AE01. Some identify it as a control processor or I/O board, while others specifically identify it as a pulse-amplifier interface or excitation-control board. I would not approve claimed channel counts, voltage ranges, communication protocols, or processor specifications without revision-specific ABB documentation.
UAC389AE01
Application Scenarios & Pain Points
The real headache with obsolete ABB control boards is not usually finding a board with the same general appearance. It is determining whether the board belongs to the same control architecture and revision. A visually similar PCB can still have different interface circuitry.
Typical Applications
- ABB Excitation Systems: Used as part of control/interface circuitry associated with generator excitation equipment. The board’s reported pulse-amplifier function makes it particularly relevant where gate or firing-control signals are involved.
- Industrial Drive Equipment: Some equipment references classify UAC389AE01 among ABB VFD-related spare boards. Verify the host drive model before treating it as a drive-control replacement.
- Legacy Power-Electronics Cabinets: Appropriate for maintenance of older ABB installations where the original board is no longer routinely stocked.
- Control-System Repair: Useful as an exact replacement candidate when troubleshooting a board-level control or interface fault rather than replacing an entire cabinet assembly.
Field Case:
On an older excitation cabinet, a technician may find that the converter bridge tests normally but firing pulses are missing. Before condemning the thyristor stack, check the control board, pulse-interface circuitry, connectors, and fiber/control wiring. A replacement UAC389AE01 should be tested against the actual control architecture—not merely powered on a workbench.
Related Products
- ABB UAC389AE02 — Closely related UAC389 family board with a different AE02 designation. It may appear physically similar, but the suffix indicates a different configuration or revision; it should not be treated as an automatic substitute for AE01.
- ABB UAC389AE01 HIEE300888R0001 — The exact target assembly. For procurement, retain both the UAC389AE01 and HIEE300888R0001 identifiers because either marking may be used for inventory or service documentation.
- ABB UAC383AE01 HIEE300890R0001 — Related UAC-series hardware with a different functional designation and ordering number. Same-family appearance does not establish electrical interchangeability.
- ABB LTC391AE01 HIEE401782R0001 — Related ABB control-board hardware encountered in legacy power-electronics applications. It performs a different function and should not be used as a drop-in replacement.
- ABB SDCS-PIN-48 — ABB pulse-interface hardware used in drive/converter systems. Functionally related to pulse-interface applications, but its architecture and mounting/interface arrangement differ from .
- ABB SDCS-PIN-51 — Another ABB pulse-interface board used in power-electronics control systems. It can be a useful reference when troubleshooting pulse-generation circuitry, but it is not an equivalent replacement.
- ABB SDCS-IOB-21 — ABB I/O board used in drive/converter systems. It provides a different I/O function and should not be substituted based solely on cabinet location.
- ABB DSPC172 — ABB processor-module hardware from the broader industrial-control ecosystem. It has a processor-oriented role rather than the pulse/interface function associated with .
