Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SCYC51090 |
| Ordering Number | 58053899E |
| Product Type | Pulse Trigger Board / Converter Control PCB |
| Application Platform | ABB ACS6000 / ACS5000 Medium Voltage Drives |
| Main Function | IGCT pulse generation and distribution |
| Control Interface | Converter control system interface |
| Communication Interface | Internal drive bus/interface connections |
| Signal Type | High-speed switching pulse signals |
| Compatible System | ABB medium voltage power converter assemblies |
| Installation | Converter cabinet control section |
| Board Construction | Industrial PCB module |
| Operating Environment | Industrial drive cabinet |
| Typical Application | Medium voltage motor control and power conversion |
Product Introduction

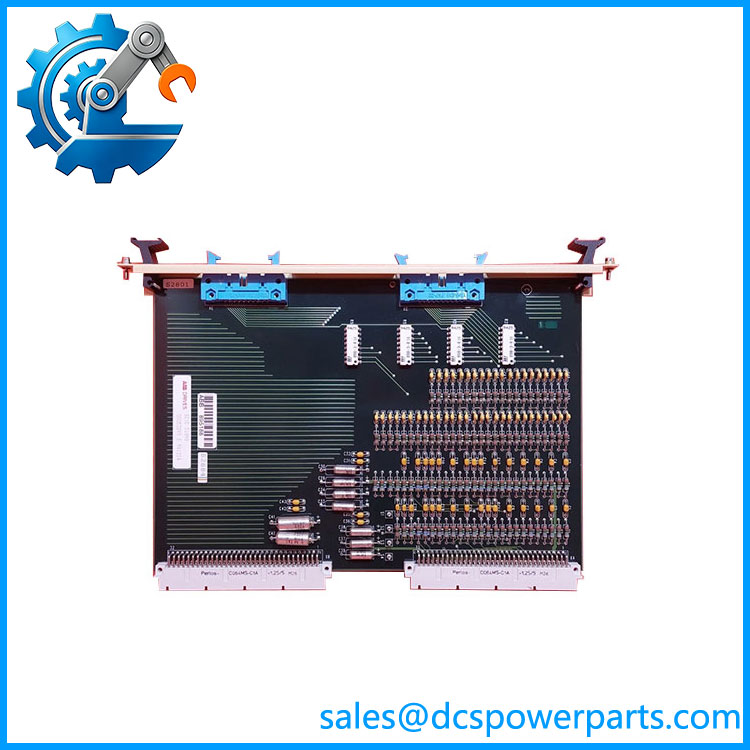

ABB SCYC51090 58053899E Overview
The ABB SCYC51090 58053899E is a pulse trigger board used in ABB medium voltage converter systems. It functions as part of the converter control chain, transferring precise switching commands from the control electronics toward the power semiconductor stage. In ABB ACS6000-type drive architectures, pulse control accuracy is critical because the converter must coordinate high-power switching devices during motor operation.
The ABB SCYC51090 58053899E is installed within the drive control and converter interface section rather than the standard PLC/DCS I/O layer. It works together with other converter control boards, gate driver assemblies, and IGCT-related hardware to maintain correct firing sequences. Replacement requires verification of the complete drive type, board revision, and connected power stage components.
SCYC51090 58053899E
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A large medium voltage motor suddenly trips with converter synchronization, firing pulse, or power cell communication alarms. The motor, incoming power, and cooling system appear normal.
In many cases, the troubleshooting path leads to the converter trigger chain. A pulse board failure can prevent correct semiconductor switching even when the main controller remains online.
The ABB SCYC51090 58053899E is a specialized converter board. It should be evaluated as part of the entire power electronics control loop, not as an isolated circuit card.
Typical Applications
- Mining Operations
Medium voltage drives controlling conveyors, crushers, grinding mills, and large auxiliary equipment. - Metallurgical Plants
High-power motor applications requiring controlled acceleration and speed regulation. - Cement Production Facilities
Large fans, mills, and process motors using ABB medium voltage drives. - Power and Utility Systems
Pumping stations and industrial rotating equipment requiring variable-speed control.
Technical Pitfalls to Avoid
1. Verify Exact Drive Platform
ABB converter boards are highly application-specific. Confirm the ACS6000/ACS5000 configuration, converter cabinet layout, and installed board revision before replacement.
2. Inspect Gate Driver and Fiber Connections
A pulse board alarm may originate from downstream gate units, fiber communication problems, or connector issues. Replacing the board without checking the complete signal path can result in repeated failures.
3. Check Power Supply Quality
Abnormal internal control voltages can create false trigger faults. Verify cabinet power supplies, grounding, and DC rails before replacing converter control electronics.
