Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | RFO810 |
| Product Type | Redundancy Fiber Optic Link Module |
| System Platform | ABB AC800M / System 800xA |
| Main Function | Redundant controller communication |
| Communication Medium | Fiber optic link |
| Application | Controller redundancy synchronization |
| Compatible System | AC800M redundant controller configurations |
| Interface Type | Optical communication interface |
| Isolation Method | Fiber optic electrical isolation |
| Diagnostics | Redundancy link status monitoring |
| Installation | AC800M controller assembly |
| Configuration Tool | ABB Control Builder / Automation Builder |
| Operating Environment | Industrial automation cabinet |
| Typical Applications | Process control, power, oil & gas, chemical industries |
Product Introduction
ABB RFO810 Overview

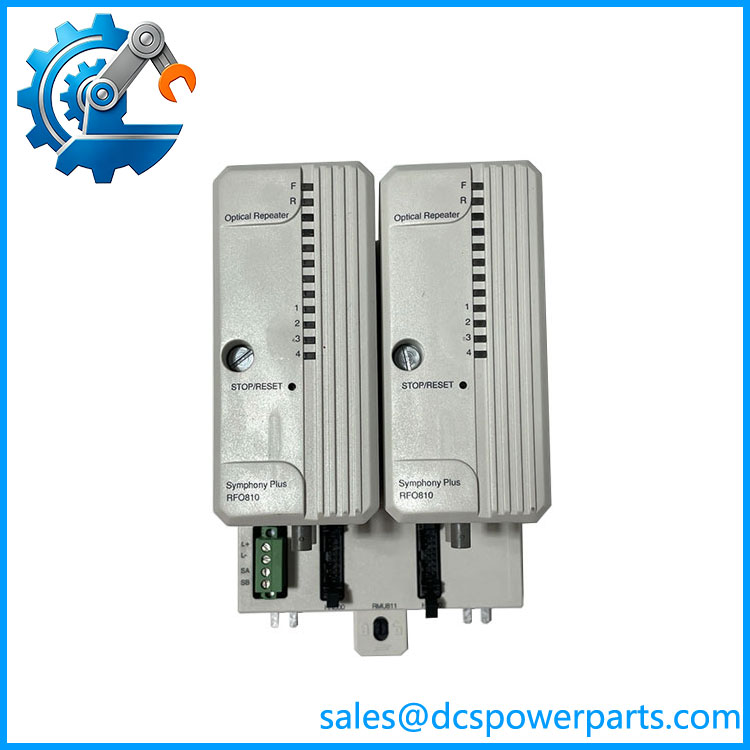

The ABB RFO810 is a fiber optic redundancy communication module designed for ABB AC800M controller architectures used in System 800xA process automation environments. It provides the optical communication path required for redundant controller operation, allowing two AC800M controllers to exchange synchronization information and maintain coordinated operation.
The ABB RFO810 is used in high-availability control systems where controller redundancy is required to minimize process interruption. By using fiber optic communication, the module provides electrical isolation between redundant controller units and reduces the impact of electromagnetic interference commonly present in industrial facilities.
The ABB RFO810 works together with other redundancy components, such as redundancy modules and AC800M controller units, to form a complete fault-tolerant control architecture. The module itself does not execute application logic; instead, it supports the communication layer that allows redundant controllers to maintain synchronized operation.
When replacing an ABB RFO810, engineers should verify the installed controller models, redundancy configuration, fiber optic connection type, firmware compatibility, and System 800xA project settings. A hardware replacement without checking the complete redundancy architecture may result in synchronization faults.
RMU811
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A redundant controller system reports loss of synchronization, controller switchover alarms, or redundancy communication failures. Both controllers may remain powered, but the system cannot maintain the expected primary/backup relationship.
The troubleshooting path should include:
- optical link status
- Fiber cable condition
- Controller redundancy configuration
- Controller firmware versions
- Redundancy module status
- System 800xA diagnostics
The is part of the redundancy communication path, so the fault may come from the fiber link, controller configuration, or related hardware.
Typical Applications
Power Generation
Used for:
- Turbine control systems
- Boiler automation
- Auxiliary process control
Oil and Gas Facilities
Applied in:
- Refinery DCS systems
- Compressor control applications
- Pipeline automation
Chemical Processing
Used for:
- Continuous process control
- Batch automation systems
- Critical production lines
Water and Infrastructure
Applied in:
- Large-scale pumping systems
- Treatment plant automation
- Utility control networks
Technical Pitfalls to Avoid
1. Verify Fiber Link Compatibility
Before replacement, confirm:
- Fiber connector type
- Fiber cable specification
- Link distance requirements
- Optical module compatibility
A damaged or incorrect fiber connection can appear as a module failure.
2. Check Controller Redundancy Settings
Verify:
- Primary/backup controller configuration
- Synchronization parameters
- Hardware configuration database
- System 800xA project settings
3. Inspect Related Redundancy Hardware
The operates together with other redundancy components. Check:
- RMU811 redundancy module
- controller status
- Power supply condition
- Communication interfaces
4. Confirm Firmware and Software Versions
ABB systems depend on compatibility between:
- Controller firmware
- Communication modules
- Control Builder / Automation Builder versions
- System 800xA releases
Related Products
- ABB RMU811
Redundancy module unit used with high-availability controller configurations. - ABB PM865K01 3BSE031151R1
controller package commonly used in redundant automation systems. - ABB PM866AK01 3BSE076939R1
Advanced controller used in System 800xA applications. - ABB CI854AK01
PROFIBUS communication interface module for systems. - ABB CI858
Communication interface module used for ABB drive and automation integration. - ABB System 800xA
Process automation platform supporting redundant controller architectures.
