Description
ABB RF533 3BSE014227R1 | 12SU Subrack with BB510 Backplane | Advant Controller 450 Spare
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| ABB Type Designation | RF533 |
| Product ID | 3BSE014227R1 |
| Product Type | Subrack / Central Unit |
| System | Advant Controller 450 |
| System Family | Advant Master |
| Rack Capacity | 12SU |
| Backplane | BB510 |
| Function | Module mounting and internal system interconnection |
| Net Dimensions | 482 × 300 × 330 mm |
| Net Weight | 16.25 kg |
| Batteries | None |
| RoHS Status | Exempt under specified Advant Master system declaration |
The ABB product data gives the dimensions as 482 mm wide × 300 mm high × 330 mm deep and net weight as 16.25 kg. ABB also identifies the product type as Central_Unit, although its actual hardware function is a subrack with integrated backplane rather than a processor.
ABB’s spare-parts documentation separately lists 3BSE014227R1 as an subrack, 12SU high, confirming its role within the Advant Master AC450 hardware family.
Product Introduction
The ABB 3BSE014227R1 is a 12SU subrack assembly designed for the ABB Advant Controller 450 system. The assembly includes the backplane, providing the physical mounting structure and internal electrical interconnection required by the compatible AC450 modules. It should therefore be treated as infrastructure hardware within the controller rack rather than as an independent CPU, I/O card, or communication interface.

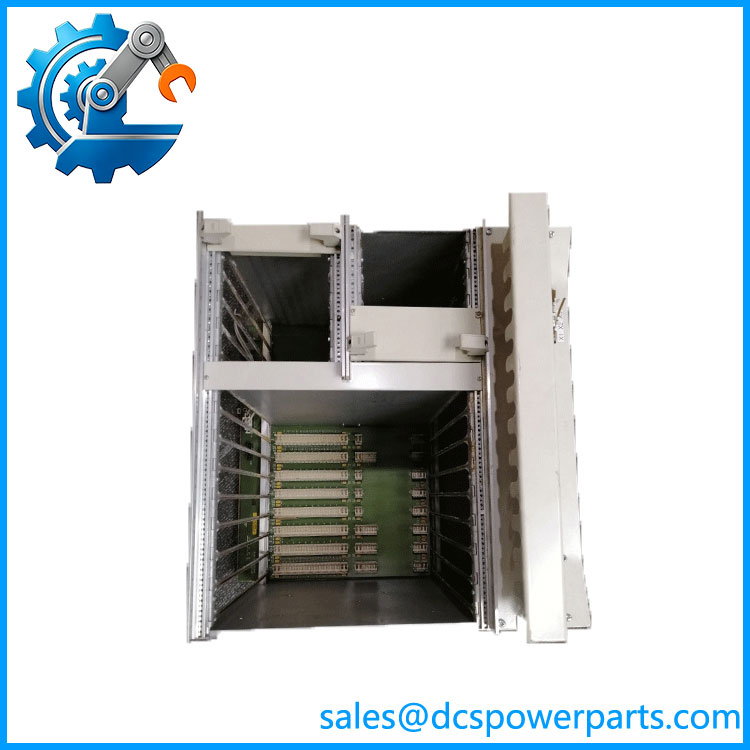

RF533-3BSE014227R1
For maintenance teams supporting an older Advant installation, ABB 3BSE014227R1 can become a critical spare when the original rack or backplane has mechanical damage, connector degradation, or other assembly-level problems. Replacing only an individual module will not address a defective rack/backplane, so identifying the correctly is important when troubleshooting intermittent module communication or physical connection problems.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A damaged controller subrack can produce symptoms that initially look like individual module failures: intermittent communication, modules disappearing from the system, unstable connections, or repeated faults after card replacement. With the , the rack and backplane are part of the hardware path, so maintenance teams should not automatically assume the problem is located on the installed controller or I/O card.
Typical Applications
- ABB Advant Controller 450 installations requiring the original 12SU rack architecture.
- Advant Master DCS maintenance where the existing controller hardware must remain operational.
- Controller cabinet refurbishment involving replacement of a damaged rack or backplane assembly.
- Legacy DCS spare-parts inventory for plants maintaining AC450 equipment.
- Hardware troubleshooting where backplane or module-slot integrity is suspected.
Technical Pitfalls
1. is not a CPU.
Despite ABB’s product database classifying it under the product type “Central_Unit,” the technical description clearly identifies it as a 12SU subrack including backplane. Do not order as a replacement for SC520, PM511, or another processor module.
2. Verify the backplane version.
The is specifically documented with the backplane. A rack with a different backplane or a different SU configuration should not be assumed to be a direct substitute.
3. Check the complete assembly.
Before replacement, record the modules installed in each slot and verify the rack configuration against the original system documentation. The subrack itself does not determine the controller’s processing or communication functions.
4. Do not confuse with RF522.
ABB’s Advant Master spare-parts documentation lists RF522 as a 14SU subrack, while is the 12SU subrack. The different SU capacity is an important mechanical distinction.
5. Check mechanical clearance before installation.
The ABB product data specifies approximately 482 × 300 × 330 mm for the assembly. Cabinet mounting space, cable routing, adjacent equipment, and service access should be checked before replacing the rack.
6. Legacy availability requires planning.
The is associated with the older Advant Master/ platform. ABB’s current spare-parts documentation still identifies the component, while secondary industrial suppliers classify it as legacy or discontinued. For an operating plant, keeping an exact spare rack can be more practical than discovering a backplane problem during a planned shutdown.
7. Avoid treating the rack as a plug-and-play modernization component.
is intended for the established architecture. It does not provide a migration to AC800M, AC 800xA, or another current ABB controller platform by itself.
Related Products
- ABB RF522 3BSE000743R1 — 14SU Advant Master subrack; different rack capacity from .
- ABB SC510 3BSE003832R1 — Submodule carrier without CPU used in the Advant Controller architecture.
- ABB SC520 3BSE003816R1 — Submodule carrier including local CPU.
- ABB RB510 3BSE003527R1 — Dummy module for submodule carrier.
- ABB RB520 3BSE003528R1 — Dummy module for submodule positions.
- ABB RC527 3BSE008154R1 — Fan unit associated with Advant Master hardware.
- ABB TC520 3BSE001449R1 — System Status Collector.
- ABB CS513 3BSE000435R1 — IEEE 802.3 LAN module for Advant OCS/ architecture.
- ABB CI522A 3BSE018283R1 — Advant Fieldbus 100 interface.
- ABB CI534V02 3BSE010700R1 — MODBUS interface submodule.
Procurement Note
Specify the complete part number as:
ABB — 3BSE014227R1 — 12SU Subrack Including Backplane
When purchasing a replacement, verify , 3BSE014227R1, 12SU configuration, and backplane against the existing rack. Do not substitute an RF522 or another Advant subrack simply because it belongs to the same product family; ABB documents RF522 and with different rack capacities.
For a plant still operating an Advant Controller 450, the most useful spare is an exact assembly with the correct backplane and clean slot/connectivity condition. Mechanical condition matters here just as much as the electrical identity because the component is the foundation for the modules installed in the controller rack.
