Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PU515A |
| Order Number | 3BSE032401R1 |
| Product Type | Real-Time Accelerator (RTA) Board |
| System Platform | ABB Advant OCS / 800xA for Advant Master |
| Communication Protocol | MB300 |
| Communication Channels | 2 |
| Communication Speed | 10 Mbit/s |
| Processor Count | 1 |
| CPU Clock Frequency | 25 MHz |
| Memory Size | 16 MB RAM |
| Communication Module | CS503V1 Dual Channel MB300 Module |
| Host Interface | 32-bit PCI / PCI-X Slot |
| PCI Compatibility | 3.3V or 5V PCI, 33 MHz operation |
| Connector Type | Two 15-pin female D-sub connectors |
| Installation | PCI slot mounting in engineering/operator PC systems |
| Net Weight | Approx. 0.4 kg |
Product Introduction

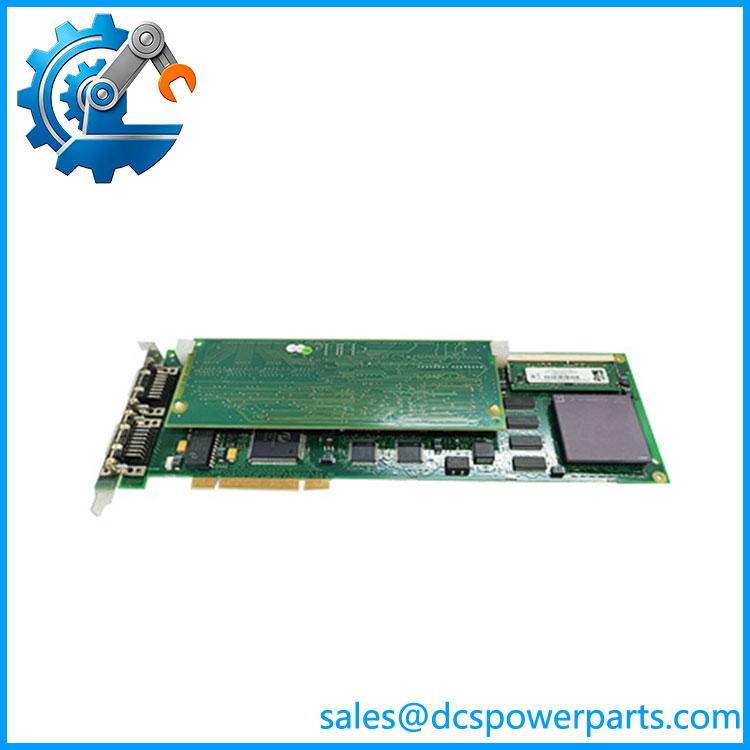

ABB PU515A 3BSE032401R1 Real-Time Accelerator Board Overview
The ABB PU515A 3BSE032401R1 is a Real-Time Accelerator (RTA) communication board used in ABB Advant OCS and 800xA for Advant Master environments. It provides MB300 communication processing between PC-based systems and ABB controller platforms, supporting real-time data exchange for supervisory and engineering functions.
The board integrates a CS503V1 dual-channel MB300 communication interface with onboard memory and processor resources. For legacy Advant installations, the ABB PU515A 3BSE032401R1 can be an important spare component when maintaining existing communication paths. Verify system version carefully, because ABB documentation notes that PU515A is not supported in newer 800xA for Advant Master 6.0 environments and may require migration to newer RTA hardware during upgrades.
PU515A 3BSE032401R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A common issue in aging DCS environments is losing communication between engineering stations, operator systems, and legacy controllers after a workstation replacement. The failure is often not caused by the controller itself. It can come from missing communication boards, incorrect drivers, PCI configuration differences, or unsupported software revisions. The ABB PU515A 3BSE032401R1 is typically maintained to preserve an existing Advant Master communication architecture without changing the installed controller network.
Typical Applications
- Power Generation – Advant OCS communication links for turbine auxiliary systems and plant control networks.
- Chemical Processing – Legacy DCS engineering stations communicating with Advant Master controllers.
- Oil & Gas Facilities – Operator and maintenance workstation interfaces for existing process control systems.
- Industrial Manufacturing – ABB Advant-based supervisory control and data exchange applications.
Technical Pitfalls to Avoid
- 800xA Version Compatibility
Do not assume this board is suitable for every 800xA installation. Newer 800xA for Advant Master releases removed support, requiring migration planning to newer RTA hardware.
- PCI Slot Configuration
Confirm the host computer motherboard supports the required PCI or PCI-X configuration. Physical slot compatibility alone does not guarantee correct operation.
- MB300 Network Verification
Check MB300 addressing, communication parameters, and existing CS503V1 configuration before replacement. Incorrect settings can appear as controller communication failures.
Field note: Before removing a working , record the workstation hardware model, PCI slot position, driver version, and configuration. Legacy communication modules often depend on details that are not stored in the board itself.
Related Products
- ABB PU410
Newer RTA hardware replacement path for systems upgraded beyond support. Used when migrating Advant Master communication infrastructure to newer 800xA versions. - ABB CS503V1
Dual-channel communication module integrated with . Handles the actual MasterBus 300 interface functions. - ABB 3BSE032401R1 Exchange Version
Exchange-designated replacement unit for the same RTA board. Used for direct maintenance replacement scenarios. - ABB AC450 Advant Controller 450
Legacy controller platform commonly associated with Advant Master communication systems. supports communication interfaces used around this ecosystem. - ABB Advant Master Software System
Control software environment using communication architecture. The serves as a hardware communication bridge for compatible installations. - ABB CI840A 3BSE041882R1
ABB communication interface module from newer control architectures. Application differs from but may appear in migration projects. - ABB CI854A 3BSE030220R1
PROFIBUS communication interface module used in ABB controller systems. Provides field network connectivity rather than workstation communication. - ABB PM511V08 3BSE011180R1
Advant Controller 450 processor module. Works within the same legacy ABB control ecosystem but performs controller execution rather than communication acceleration.
