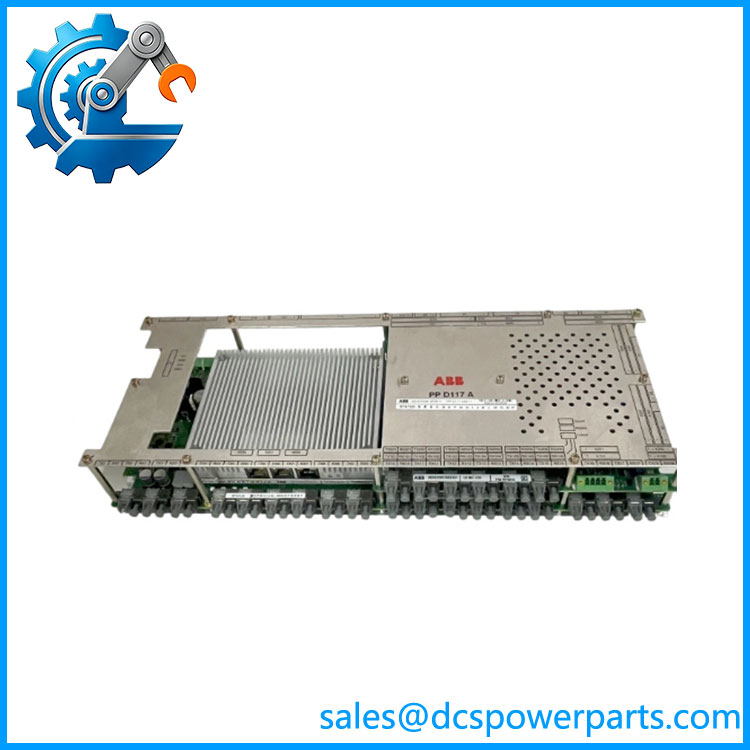

The ABB PPD117A3011 3BHE030410R3011 is a controller used within ABB AC 800PEC-based power-control and excitation systems. Its principal role is digital control of the excitation process, where the controller works with voltage, current, and operating-state feedback to regulate generator excitation and maintain the required electrical operating point. In a typical excitation system, this controller sits above the power-conversion stage and associated measurement/protection circuits, executing the control application rather than functioning as a conventional PLC I/O card. Available technical references identify the unit specifically as an AC 800PEC control unit and excitation controller.

For ABB PPD117A3011, the complete identification 3BHE030410R3011 should be retained when sourcing a replacement. The part appears in ABB-related documentation and industrial spare-part references as an excitation controller associated with the AC 800PEC platform. Its application is particularly relevant to generator voltage regulation, reactive-power control, excitation-system supervision, and associated protection functions.

The ABB PPD117A3011 3BHE030410R3011 should not be confused with a generic AC 800M CPU. Although both belong to ABB’s wider automation ecosystem, the PPD117A3011 serves a specialized power-control application. In practical maintenance work, the existing excitation application, firmware, parameter set, I/O configuration, and associated power stage must be checked before a controller is exchanged. A replacement that powers up normally is not necessarily ready to control the generator.

Product Introduction

Generator excitation control leaves little room for an incorrect controller configuration. PPD117A3011 provides the central digital control function within an AC 800PEC excitation architecture, coordinating regulation and protection-related functions rather than acting as a general-purpose I/O module.

For an ABB AC 800PEC excitation controller replacement, preserve the existing application configuration and firmware information before removing the original unit. The exact 3BHE part number should be matched, particularly when maintaining an established generator control system.

Key Technical Specifications

Important specification note: Publicly available references consistently identify the as an AC 800PEC excitation/control unit, but they do not provide a sufficiently reliable manufacturer-level datasheet for exact electrical I/O ratings, power consumption, dimensions, or communication-port assignments. Those values should therefore be taken from the equipment-specific ABB documentation rather than estimated from third-party listings.

Related Products

• — The primary AC 800PEC excitation control unit covered here. It performs the central digital control role.
• PPD113B01 — An ABB PPD-family control unit found in excitation-system applications. Its exact function and hardware configuration should be checked before considering it as an alternative.
• PPD517A3011 3BHE041576R3011 — Another PPD-family excitation control unit. It should not be treated as a direct replacement without application-specific compatibility verification.
• PPD513A0E110110 3BHE039724R0E41 — PPD-family control hardware used in specialized power-control applications. Functional and hardware differences require review before substitution.
• AC 800PEC — The controller platform associated with . It provides the broader control architecture in which the excitation controller operates.
• Excitation Power Converter — The power stage controlled by the excitation controller. Semiconductor configuration, firing/control signals, and feedback scaling must match the controller application.
• Generator Voltage Measurement Circuit — Provides the voltage feedback required for excitation regulation. Incorrect scaling can produce incorrect excitation behavior even when the controller itself is healthy.
• Generator Current Measurement Circuit — Supplies current-related feedback used by the excitation application for regulation, monitoring, and protection functions.

3BHE030410R3011-PPD117A3011

Frequently Asked Questions

What is ABB 3BHE030410R3011 used for?

The is an AC 800PEC excitation control unit used for digital control of generator excitation systems. Its function includes regulation of excitation-related operating parameters and coordination with feedback and protection functions.

It is therefore better classified as a specialized power-control controller than as a standard PLC CPU.

Is a PLC CPU?

Not in the conventional Series PLC sense.

The unit belongs to the AC 800PEC platform and is intended for power-electronic and excitation-control applications. Although it performs processing and control functions, its application software and hardware interfaces are tied to the excitation/control architecture rather than general-purpose PLC programming.

Can I use another PPD-series controller as a replacement?

Not without engineering verification.

A similar PPD designation does not guarantee:

• Identical firmware
• Identical I/O assignments
• Identical application software
• Identical control algorithms
• Identical power-stage interface
• Identical communication configuration

For a generator excitation system, use the reference as the starting point and compare the complete system configuration before approving an alternative.

Will replacing cause me to lose the excitation control logic?

The replacement hardware should not be assumed to contain the existing application.

Before removing the installed controller, preserve:

1. Application program/configuration.
2. Firmware version.
3. Parameter set.
4. Generator voltage scaling.
5. Current-transformer scaling.
6. Protection thresholds.
7. Communication settings.
8. Startup and shutdown parameters.
9. Calibration data.
10. Existing diagnostic records.

This is especially important because excitation control is tightly coupled to the generator and power-converter hardware.

Does directly control the generator output voltage?

It controls the excitation system, which in turn influences generator terminal voltage and reactive-power behavior.

The controller typically operates as part of a larger chain:

Voltage/current measurement → AC 800PEC control → excitation power stage → generator field → generator electrical output

The exact control loops depend on the installed excitation application.

Can I hot-swap ?

Do not assume hot-swapping is permitted.

This controller can sit directly in the control chain of a generator excitation system. Removing it while energized can affect regulation, firing/control signals, protection functions, or communications with other equipment.

Before replacement, place the generator/excitation system in the manufacturer-approved maintenance condition and verify that the excitation power stage is safely isolated.

How should a New Surplus be tested?

For this type of controller, a simple power-up test is insufficient.

Recommended acceptance procedure:

1. Confirm markings.
2. Record hardware revision and serial number.
3. Inspect connectors and PCB condition.
4. Verify firmware identification.
5. Confirm the intended AC 800PEC application.
6. Load or verify a controlled test configuration.
7. Check controller startup diagnostics.
8. Verify voltage and current feedback scaling.
9. Verify communication with associated control hardware.
10. Test regulation logic under controlled conditions.
11. Test alarm and protection functions.
12. Confirm output/control signals to the excitation power stage.
13. Perform controlled excitation startup.
14. Monitor generator voltage and reactive-power response.
15. Record final firmware, parameters, and test results.

Procurement note: The strongest available references identify as an ABB AC 800PEC excitation/control unit. Exact I/O, electrical ratings, and firmware details should be verified against the installed system documentation rather than inferred from generic PPD-family listings.
