ABB PP865A 3BSE042236R2 | Industrial HMI Touch Panel with 1024×768 TFT Display

Description

Key Technical Specifications

Product Introduction

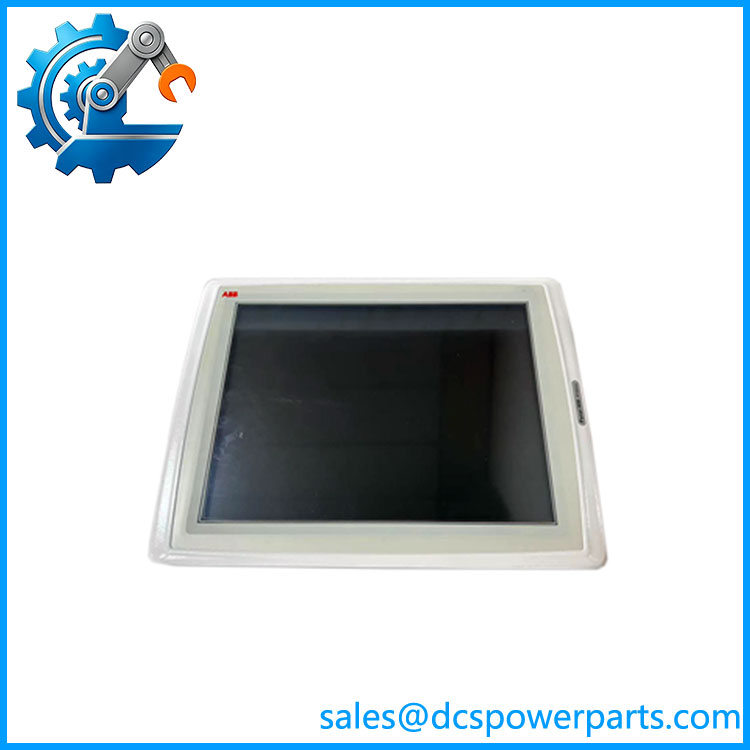

ABB PP865A 3BSE042236R2 Overview

The ABB PP865A 3BSE042236R2 is a Panel 800 series industrial HMI designed for operator interaction with ABB automation systems. It provides graphical display, touch-based control, alarm visualization, and process monitoring functions for industrial applications. The unit features a 15-inch TFT color display with 1024 × 768 resolution.

The ABB PP865A 3BSE042236R2 is commonly installed in System 800xA environments and machine control applications where operators require direct access to process values, equipment status, and control commands. Replacement requires checking the existing Panel Builder project, communication configuration, and mounting dimensions before commissioning.

PP865A 3BSE042236R2

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

An operator station fails during production, leaving technicians without access to alarms, trends, and equipment controls. The controller may still be running, but the HMI layer becomes the bottleneck.

This situation is common in older process plants. The display hardware, communication settings, application files, and panel configuration all need to be considered. Replacing the touchscreen alone does not restore operation if the engineering project or communication parameters are missing.

The PP865A 3BSE042236R2 is the operator interface layer. Treat it as part of the automation system, not just a display.

Typical Applications

• Oil & Gas Facilities – Operator stations for compressor skids, process units, and equipment monitoring.
• Chemical Plants – Process visualization, alarm management, and batch operation interfaces.
• Power Generation – Auxiliary system monitoring, equipment control panels, and local operator stations.
• Manufacturing Lines – Machine status display, recipe handling, and production control interfaces.

Technical Pitfalls to Avoid

1. Verify Panel Project Compatibility

   The PP865A requires the correct Panel Builder project file. A replacement panel without the original application configuration will only provide basic hardware functionality.

2. Check Communication Settings

   Confirm Ethernet addresses, serial communication parameters, and connected controller interfaces before startup. Incorrect network configuration is a common cause of commissioning delays.

3. Confirm Power Supply Quality

   HMI panels are sensitive to unstable DC power. Verify the 24VDC supply, grounding, and cabinet power distribution before diagnosing a panel fault.
