Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | PP825A |
| ABB Part Number | 3BSE042240R3 |
| Manufacturer | ABB |
| Product Type | Touch Operator Panel / HMI |
| Product Series | Panel 800 |
| System Compatibility | ABB System 800xA environments |
| Display Size | 5.7 inch |
| Display Type | Color TFT/CSTN LCD |
| Resolution | 320 × 240 pixels |
| Touch Technology | Resistive touch screen |
| Configuration Software | Panel Builder 800 Version 5 |
| Communication Interface | RS-232 / RS-422 / RS-485 (configuration dependent) |
| Ethernet | Available interface for automation communication |
| USB Interface | USB Host connection |
| Application Memory | Internal flash storage |
| Mounting | Panel cutout installation |
| Front Protection | IP66 front panel sealing |
| Typical Application | Machine HMI, process visualization, operator control |
Application Scenarios & Pain Points
An HMI replacement project often looks simple until the machine is stopped and the original engineering files cannot be found. A display swap alone does not guarantee recovery; communication settings, application backups, and hardware revisions all matter.
Typical applications:
- Process Automation: Used as a local operator station for displaying alarms, trends, process values, and control commands.
- Manufacturing Equipment: Installed on production machines where operators adjust recipes, monitor cycles, and respond to equipment faults.
- Water and Wastewater Systems: Supports local control panels for pumps, valves, and treatment process monitoring.
- Energy Systems: Applied for auxiliary equipment monitoring where a compact operator interface is required.
Field note: A packaging line lost its local operator display after years of service. The PLC remained healthy, but production operators had no access to settings or alarms. After installing a replacement PP825A and restoring the Panel Builder project, normal operation resumed without changing the controller program.

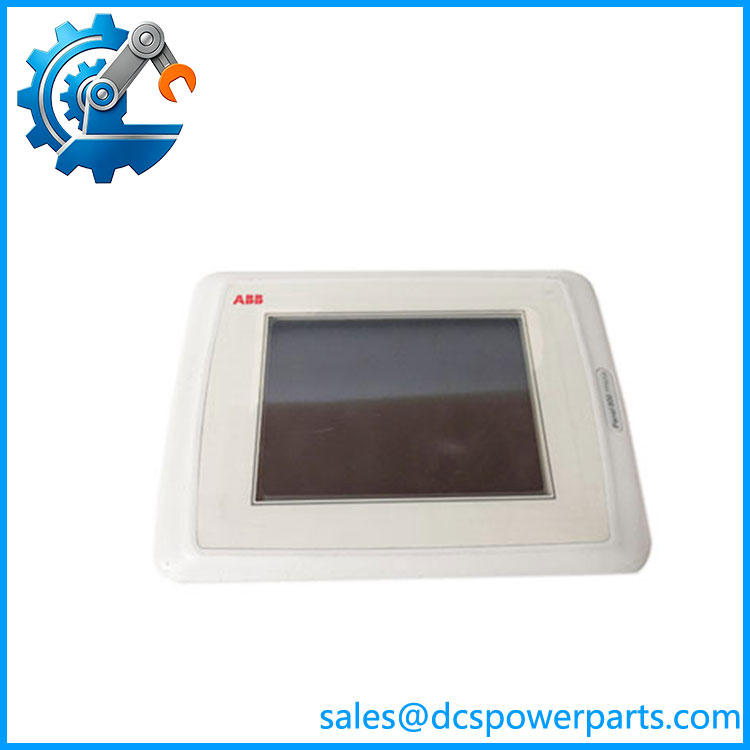

PP825A 3BSE042240R3
Related Products
- ABB PP815A 3BSE042239R2 — Smaller Panel 800 touchscreen terminal with a 3.5-inch display. Suitable where limited visualization space is required.
- ABB PP835A 3BSE042234R2 — Larger Panel 800 touch panel with a 6.5-inch display and higher resolution for more detailed graphics.
- ABB PP845A 3BSE042235R2 — 10.4-inch Panel 800 operator panel for applications requiring larger process screens.
- ABB PP865A 3BSE042236R2 — 15-inch Panel 800 touch panel used for larger visualization applications.
- ABB PP820A 3BSE042243R2 — Functional key panel variant for applications requiring physical operator keys instead of touch-only control.
- ABB CP800 Series Panels — Newer ABB operator panel family with updated hardware and software support.
- ABB Panel Builder 800 — Configuration software used to create and maintain PP825A operator applications.
- ABB AC800M Controllers — Controller family commonly connected with ABB operator panels in automation systems.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Missing Panel Builder Project Backup
The replacement panel may boot correctly but show an empty application if the original project file is unavailable.
How to avoid: Save the Panel Builder 800 project, communication parameters, and firmware information before removing the existing panel.
⚠️ Communication Driver Mismatch
A new HMI may fail to communicate even though the physical connection is correct.
How to avoid: Verify PLC protocol settings, baud rate, node address, Ethernet parameters, and cable pinout.
⚠️ Touch Calibration and Display Aging Issues
Older panels may show inaccurate touch response due to screen wear.
How to avoid: Perform touch calibration after installation and inspect the display for dead pixels or uneven backlight performance.
Frequently Asked Questions (FAQ)
What is the main function of the ABB PP825A 3BSE042240R3?
The PP825A is a Panel 800 touchscreen operator panel used to display process information and provide operator control functions in ABB automation systems.
Is the PP825A a PLC controller?
No. The is an HMI device. It communicates with PLCs, DCS controllers, and drive systems but does not execute the main control logic.
Can I replace an older ABB Panel 800 unit with ?
Only after checking the application requirements. Engineers should compare display size, mounting dimensions, communication protocol, firmware compatibility, and project files.
What software is required to configure the ?
The requires Panel Builder 800 for application development and configuration.
Why does a replacement show a blank screen?
Common causes include:
- Missing HMI application download
- Incorrect firmware version
- Communication configuration mismatch
- Damaged storage memory
- Incorrect power supply connection
What should be checked before purchasing 3BSE042240R3?
Recommended checks:
- Complete ABB part number
- Existing hardware revision
- Panel Builder project availability
- Communication interface type
- Mounting cutout size
- PLC or DCS connection method
Is a refurbished ABB suitable for industrial service?
A tested refurbished unit can be suitable when it passes display testing, touch calibration, communication verification, connector inspection, and application loading checks.
