ABB PNI800A | PN800 Communication Module | SD Series

Description

ABB PNI800A | PN800 Plant Network Interface Module | Symphony Plus

Key Technical Specifications

ABB’s product information specifically defines as the Plant Network Interface Module and states that it is required by a PC that needs to connect to . ABB categorizes it under S+ SD communications and identifies its product type as a communication module.

Product Introduction

The is a dedicated network-interface module for the plant network within the ABB Symphony Plus SD Series. Its primary role is to provide the required interface between a PC and the environment, making it a communication component rather than a conventional PLC CPU, analog I/O module, or discrete I/O module.

For maintenance and procurement teams, the should be evaluated as part of the complete interface arrangement. ABB identifies MB805A as the mounting base for the , while PNI800K01A is a coated interface kit containing one and one MB805A. ABB also states that the PNI800SWLIC-01 software license key must be ordered separately, which is an important consideration when replacing an existing installation.

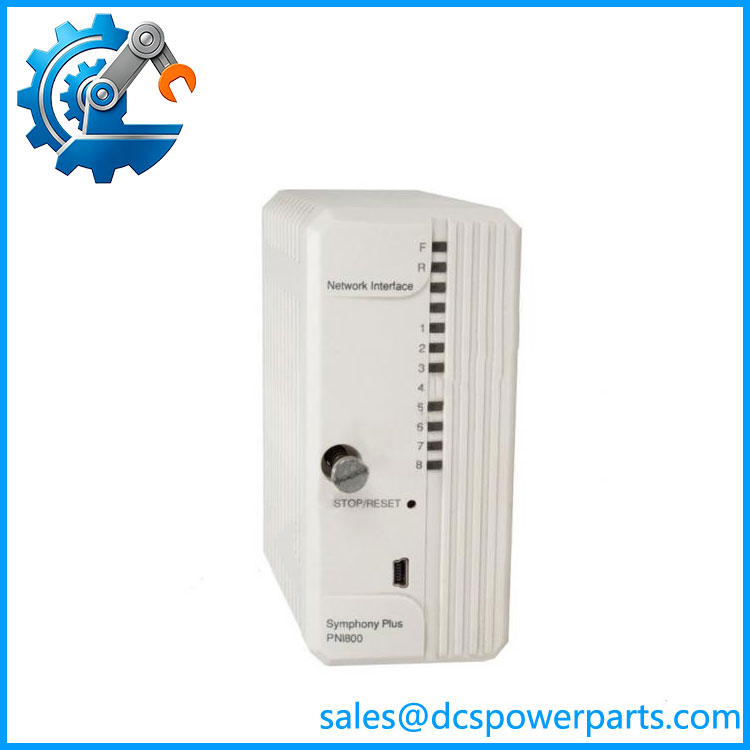

PNI800A

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A communication failure can easily be mistaken for a plant-network or controller problem. With the , the correct troubleshooting path includes the module, its mounting base, PC-side configuration, software licensing, physical network connection, and the system itself. Replacing the hardware without checking these dependencies may not restore communication.

Typical Applications

1. PC connection to

The primary documented application is providing the interface required for a PC to connect to the plant network.

2. Symphony Plus SD Series engineering environments

The module belongs to the Symphony Plus SD Series communication architecture and is relevant to systems where engineering or supervisory PCs require connectivity.

3. Legacy DCS maintenance

The is relevant when maintaining existing Symphony Plus installations where the original communication architecture remains in service.

4. Coated control-system installations

The can be supplied as part of the conformal-coated PNI800K01A kit, which includes the module and MB805A mounting base.

Technical Pitfalls

1. Do not classify as a generic Ethernet I/O module.
ABB’s own product description identifies it specifically as the Plant Network Interface Module. Public reseller descriptions that assign it unrelated analog or digital I/O functions should be disregarded.

2. Check the mounting base.
The is associated with the MB805A module mounting base. If replacing an assembly rather than only the electronics, confirm whether the existing base is being retained or replaced.

3. Check the software license requirement.
ABB explicitly states that PNI800SWLIC-01 must be ordered separately. Hardware replacement alone may therefore not reproduce the complete original installation if the licensing component is missing.

4. Do not confuse with PNI800K01A.
is the interface module itself. PNI800K01A is a kit containing and the conformal-coated mounting base.

5. Avoid inventing communication protocols.
Public reseller pages sometimes assign Modbus, PROFINET, EtherNet/IP, or other generic industrial protocols to the . ABB’s available product data does not substantiate those claims. The safe technical description is plant-network interface.

6. Verify the physical assembly before installation.
ABB lists approximately 243.84 mm depth, 170.18 mm width, and 73.66 mm height for the product. Cabinet clearance should be checked against the actual mounting arrangement rather than relying solely on nominal catalog dimensions.

7. Check whether conformal coating is required.
The coated kit is a distinct procurement option. Do not assume that every supplied separately has the same environmental treatment as the coated kit.

Related Products

• — Plant Network Interface Kit containing and conformal-coated .
• — mounting base specifically designed for the module with conformal coating.
• ABB PNI800SWLIC-01 — software license key associated with ; ordered separately.
• ABB CP800A — HPC800 communication processor module; different system function from .
• ABB HPC800 — Symphony Plus SD Series control processor associated with the broader system architecture.
• ABB RFO810K02 — redundant fiber-optic repeater kit in the Symphony Plus product family.
• ABB CTB810 — HPC800 communication terminal board, serving a different interface function.
• ABB PDP800 — PROFIBUS DP master module; not a direct replacement for .
• ABB SPC800 — Symphony Plus controller hardware family used in related SD Series systems.

Procurement Note

When sourcing , use the exact product designation — Plant Network Interface Module. Do not substitute another ABB communication module simply because it belongs to the Symphony Plus family.

The first checks should be the architecture, PC-side connection, hardware revision, mounting arrangement, and PNI800SWLIC-01 licensing requirement. If the original installation uses the coated configuration, verify whether the procurement requirement is actually rather than the module alone.

For used or surplus hardware, inspect the connector interfaces, mounting hardware, enclosure, PCB condition, corrosion, contamination, and evidence of thermal or electrical stress. If the replacement does not restore communication, test the PC-side software configuration and network path before assuming the interface module is defective.

Engineering classification: ABB — Plant Network Interface Module for PC connectivity within the Symphony Plus SD Series control-system environment.
