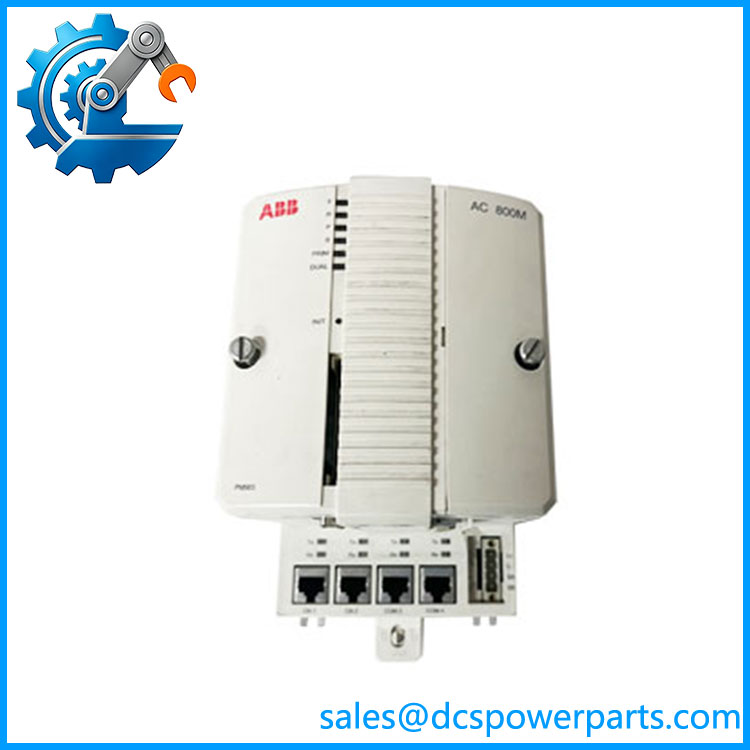

ABB PM865 3BSE030193R1 | AC800M Process Controller Unit with Redundancy Support

ABB PM865 3BSE030193R1 | AC800M Process Controller Unit with Redundancy Support

  • Model: PM865 3BSE030193R1
  • Brand: ABB
  • Series: AC800M Controller / System 800xA Platform
  • Core Function: Processor unit for ABB AC800M PLC/DCS systems, executing control logic, communication management, and process automation tasks.
  • Product Type: CPU Module / High Integrity Controller Processor
  • Key Specs:
    • Processor: MPC862P RISC processor, 96 MHz
    • Memory: 32 MB RAM, 4 MB Flash PROM
    • Power Supply: 24 VDC (19.2–30 VDC)
    • Ethernet: 2 × 10Base-T ports
    • Supports CPU redundancy configuration
Add To Quote
Category: SKU: ABB PM865 3BSE030193R1

Description

Key Technical Specifications

Parameter Value
Product Model ABB PM865 3BSE030193R1
Manufacturer ABB
Product Type AC800M Processor Unit
System Platform ABB AC800M / System 800xA
CPU Type MPC862P RISC Processor
Clock Frequency 96 MHz
Application Memory 32 MB RAM
Firmware Storage 4 MB Flash PROM
Power Supply 24 VDC nominal (19.2–30 VDC)
Power Consumption 287 mA typical / 487 mA maximum at 24 VDC
Power Dissipation Approx. 6.9 W typical
Ethernet Ports 2 × RJ45 Ethernet (IEEE 802.3, 10Base-T)
Serial Ports COM3 RS-232 with modem support; COM4 service port
CEX-Bus Support Up to 12 communication modules
ModuleBus Support S800 I/O connection support
Redundancy CPU redundancy supported
High Integrity Support Yes, with SM810/SM811 and certified software
Mounting DIN-rail with TP830 baseplate
Protection Rating IP20
Dimensions 119 × 186 × 135 mm
Weight Approx. 1.2 kg



Product Introduction



ABB PM865 3BSE030193R1 Product Introduction

ABB PM865 3BSE030193R1 is an AC800M processor module designed for ABB PLC and DCS applications within the System 800xA automation environment. It executes application logic, manages communication services, and controls connected I/O systems including S800 I/O, PROFIBUS DP, and FOUNDATION Fieldbus architectures.

The strength of ABB PM865 3BSE030193R1 is its ability to support standard process control as well as high integrity applications when combined with the appropriate SM810/SM811 safety module and certified software. For plants maintaining existing AC800M installations, this processor provides a practical replacement option without redesigning the complete control architecture. Verify firmware, Control Builder version, and hardware configuration before commissioning.

PM865 3BSE030193R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A failed controller CPU can stop an entire production area even when field instruments, remote I/O, and networks remain healthy. This situation is common in process plants where AC800M controllers have been running continuously for many years. The replacement challenge is not only installing a new CPU. The engineer must restore the application database, communication settings, redundancy configuration, and firmware compatibility.

A processor swap without configuration verification can turn a short maintenance task into a long commissioning event.



Typical Applications

  • Oil & Gas – Process control systems for compressors, pumps, pressure regulation, and safety-related monitoring.
  • Chemical Processing – Batch control, reactor monitoring, temperature regulation, and process sequencing.
  • Power Generation – Auxiliary control systems, balance-of-plant automation, and turbine-related process monitoring.
  • Water Treatment – Pump stations, filtration systems, chemical dosing control, and distributed process automation.



Technical Pitfalls to Avoid

  1. Verify Firmware and Control Builder Compatibility
    AC800M CPUs depend on matching firmware and engineering tool versions. Confirm the existing project environment before replacement.
  2. Check Redundancy Configuration
    If the controller operates in a redundant setup, verify CPU pairing, redundancy links, CEX-Bus configuration, and communication modules before startup.
  3. Preserve Battery and Application Data
    The PM865 uses battery-backed memory. Confirm application backup procedures and battery condition during maintenance activities.



Related Products

  • ABB PM864A 3BSE018182R1
    Related processor module with similar controller functions but different performance characteristics. Used in standard process automation applications.
  • ABB PM866AK01 3BSE076939R1
    Higher-performance CPU module with increased memory capacity and processing capability. Suitable for larger control applications.
  • ABB PM867K01 3BSE076355R1
    high integrity processor supporting SIL-certified applications with newer hardware architecture.
  • ABB SM811 3BSE018173R1
    Safety supervisor module used with PM865 for High Integrity controller configurations.
  • ABB TP830 3BSE018114R1
    Baseplate assembly used for mounting processor units and connecting system interfaces.
  • ABB CI854AK01 3BSE030220R1
    PROFIBUS communication interface module used for connecting distributed field devices.
  • ABB CI871K01 3BSE056899R1
    Ethernet communication interface module used for network integration.
  • ABB TU830 3BSE013234R1
    Terminal unit supporting ABB S800 I/O signal connections.
