Description

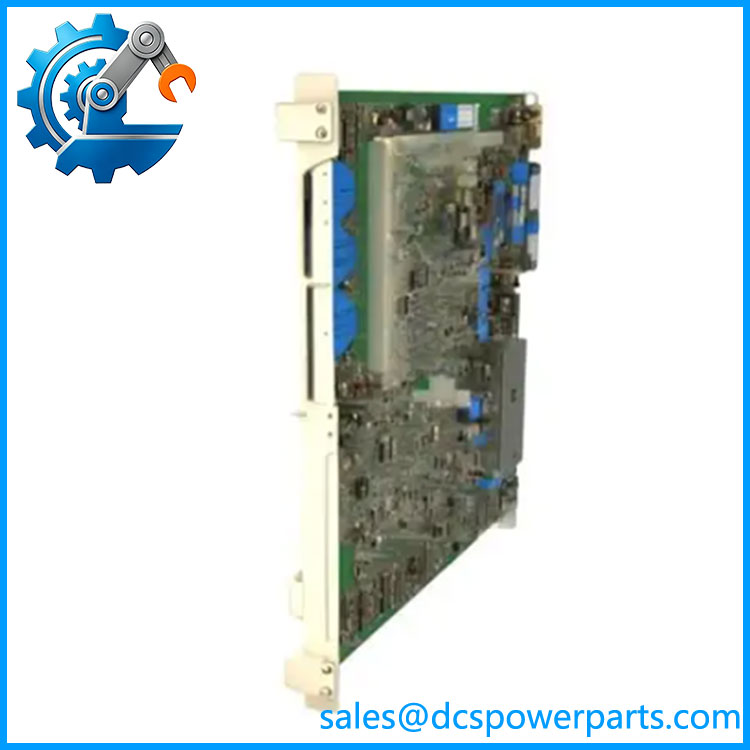

ABB PFSK163 3BSE016323R3 PROFIBUS Communication Board
Product Introduction
In a legacy ABB control installation, communication-board replacement is rarely as simple as matching a protocol name. The ABB PFSK163 3BSE016323R3 is identified in ABB-associated catalog records as a PFSK 163V3 PROFIBUS Communication Board, providing the communication interface required by the associated control architecture. The distinction matters because this is a dedicated system board, not a generic PROFIBUS adapter that can be substituted solely because both devices use PROFIBUS.
The ABB PFSK163 3BSE016323R3 is particularly relevant when maintaining older ABB automation equipment where the original communication hardware remains part of an operating DCS or process-control installation. Available records associate the board with ABB’s PROFIBUS communication hardware and identify it as a spare-parts item. Public technical information is limited, so exact bus configuration, connector arrangement, electrical supply and application-specific characteristics should be confirmed against the installed system documentation and original order number rather than inferred from generic PROFIBUS specifications.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PFSK163 |
| ABB Type Designation | PFSK 163V3 |
| ABB Product ID | 3BSE016323R3 |
| Manufacturer | ABB |
| Product Type | PROFIBUS Communication Board |
| Primary Function | PROFIBUS communication |
| Communication Protocol | PROFIBUS |
| Version / Revision Designation | PFSK 163V3 |
| Frame / Category | Spare Parts |
| Country of Origin Listed in Catalog Data | Sweden |
| Made to Order | No, according to available catalog record |
| Customer-Specific Versions | Yes — original order number should be supplied for identification |
| Selling Unit | Piece |
| Condition | Verify actual unit condition and revision |
ABB-associated catalog information specifically lists the invoice description as “Profibus comm.board PFSK 163” and the technical information as “PFSK 163V3 Profibus Communication.” It also warns that customer-specific versions exist and that the original order number should be provided.
I have intentionally not included the frequently repeated 24 VDC, 12 Mbps, M12 connector, -20 to +60°C, or similar figures found on secondary listings as confirmed specifications. Those values are not sufficiently corroborated by the ABB-associated catalog information I found for this exact PFSK163 version.
Application Scenarios & Pain Points
A PROFIBUS communication failure on an older control system can appear deceptively broad. The operator may see several devices disappear simultaneously, while the actual fault is confined to the communication interface board, its bus connection, configuration, or the network segment.
- Legacy ABB DCS communication: Used as the PROFIBUS communication interface within the applicable ABB control architecture.
- Process automation networks: Suitable for installations where existing ABB hardware depends on the PFSK163 communication architecture.
- System maintenance and replacement: Relevant when an installed has developed a board-level communication fault and the existing system must remain in service.
- Control-system migration projects: Useful when maintaining the legacy communication layer during a phased migration rather than replacing the complete control architecture at once.
The procurement issue is important: the ABB-associated record explicitly says customer-specific versions exist. Two boards carrying a similar designation should therefore not automatically be treated as interchangeable.
PFSK163 3BSE016323R3
Related Products
- PFSK160A — 3BSE009514R1: Another ABB PFSK-series spare-part board; function and system position should be verified before considering it as an alternative.
- PFSK162 — 3BSE015088R1: Related PFSK-series hardware, but not a documented drop-in replacement for .
- PFSK164 — 3BSE021180R1: Another PFSK-series communication/control board; exact application compatibility requires system-level confirmation.
- PM857K02: ABB controller hardware commonly encountered in the broader legacy ABB automation spare-parts environment, but it is a controller rather than a direct substitute.
- S800 I/O modules: Related ABB distributed-I/O hardware that may coexist with communication infrastructure in larger ABB control installations.
- ABB Advant control hardware: Relevant legacy platform family when tracing the original system architecture and board compatibility.
Do not order a related PFSK-series board simply because the physical format appears similar. The 3BSE016323R3 / identity and original system order information should remain the primary procurement references.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not confuse with a generic PROFIBUS adapter
The board is documented specifically as an ABB PROFIBUS Communication Board. That means its electrical and software interface is tied to the host ABB architecture.
Avoidance: Match the complete ABB product ID and system documentation, not merely “PROFIBUS.”
2. Watch the PFSK 163V3 designation
The ABB-associated catalog record identifies PFSK 163V3, while the commonly used model reference is .
Avoidance: Record both the model designation and the complete 3BSE016323R3 product ID from the existing board.
3. Customer-specific versions are a real procurement issue
This is the most important warning in the available catalog data. ABB-associated information explicitly states “Customer specific versions” and instructs that the original order number should be informed.
Avoidance: If the original equipment order number, project number, or system BOM is available, include it with the replacement request.
4. Do not diagnose a PROFIBUS fault as a board failure immediately
A communication dropout can originate from the bus cable, termination, connector, slave device, grounding, configuration or another node.
Avoidance: Check network diagnostics and segment health before replacing the communication board.
5. Verify firmware and host-system compatibility
A board-level replacement can still fail at commissioning if the host controller expects a different hardware revision or communication configuration.
Avoidance: Capture the installed board revision and system configuration before removal. Preserve the original board until the replacement has been commissioned successfully.
6. Do not rely on generic online specifications
Secondary listings disagree significantly about what actually is. Some describe it correctly as a PROFIBUS communication board, while others incorrectly label 3BSE016323R3 a real-time accelerator.
Avoidance: For procurement and engineering documentation, give priority to the ABB product ID, type designation and original order information.
FAQ
What is ABB 3BSE016323R3?
It is an ABB PFSK 163V3 PROFIBUS Communication Board, with ABB product ID 3BSE016323R3. ABB-associated catalog data identifies the board specifically for PROFIBUS communication.
Is a PROFIBUS communication board or a real-time accelerator?
The stronger identification is PROFIBUS Communication Board. ABB-associated catalog information gives the type designation as PFSK 163V3 and the technical description as PFSK 163V3 Profibus Communication. Some secondary suppliers use the “real-time accelerator” description, but that conflicts with the more specific catalog identification.
What is the exact ABB part number?
The complete product ID is 3BSE016323R3. The type designation is , also written PFSK 163V3 in ABB-associated catalog data.
Is compatible with every ABB PROFIBUS system?
No such assumption should be made. The available catalog data specifically states that customer-specific versions exist and that the original order number should be supplied. This indicates that application-level identification matters when sourcing a replacement.
Does support PROFIBUS DP?
The board is documented as a PROFIBUS communication board, but I would not state a particular PROFIBUS profile or maximum transmission rate for 3BSE016323R3 without the applicable ABB technical manual or project documentation. Several secondary listings provide different detailed specifications, so those figures should be treated cautiously.
What should I provide when requesting a replacement ?
Provide the complete / 3BSE016323R3 designation, the board revision, photographs of the identification label, the original system or equipment order number if available, and information about the host ABB control system. This is especially important because the catalog data identifies customer-specific versions.
How should a suspected failure be diagnosed?
First separate the board from the network problem. Check PROFIBUS diagnostics, bus termination, cable condition, connector integrity and the affected devices. If the network evidence points toward the communication board, compare the installed identification and revision against the proposed replacement before removing the original.
