Description
Product Overview
The ABB PCD530A102 3BHE041343R0102 is a Communication, Control & Measurement (CCM) module designed for ABB UNITROL 6000 excitation systems. This module performs essential processing functions within generator excitation architectures by handling control signals, measurement data acquisition, and communication tasks between excitation hardware and higher-level control systems. The ABB PCD530A102 3BHE041343R0102 is identified as the PC D530 A102 CCM module within ABB’s UNITROL 6000 X-power platform.
Installed in power generation applications, the ABB PCD530A102 3BHE041343R0102 acts as an important control interface between the excitation controller, measurement circuits, converter assemblies, and plant automation equipment. It supports generator voltage regulation functions by processing operational data required for stable excitation control. The module is typically applied in turbine generator systems, hydroelectric units, and industrial power plants where precise field excitation management is required.
The ABB PCD530A102 3BHE041343R0102 belongs to the UNITROL 6000 family, a platform developed for static excitation systems used with medium and large synchronous machines. Its communication and measurement functions allow the excitation system to exchange status information, monitor operating conditions, and coordinate with related control components. The module is not a standalone PLC controller; its function depends on the complete UNITROL hardware arrangement, firmware revision, and configured excitation application.
For engineers maintaining installed excitation equipment, replacement evaluation should include more than the part number. To be completely transparent, revision level, application configuration, controller compatibility, and stored parameters should be reviewed before installation. A matching ABB PCD530A102 hardware unit may still require verification of software configuration and commissioning settings.
The practical value of the ABB PCD530A102 3BHE041343R0102 is maintaining existing generator excitation infrastructure without unnecessary cabinet redesign. Proper testing should include communication checks, measurement verification, excitation response testing, and system alarm validation before returning the generator to normal operation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB |
| Ordering Number | 3BHE041343R0102 |
| Manufacturer | ABB |
| Product Type | Communication Control & Measurement (CCM) Module |
| System Platform | UNITROL 6000 X-power Excitation System |
| Main Function | Communication, control, and measurement processing |
| Application | Generator excitation regulation |
| Controller Environment | ABB AC800PEC based excitation architecture |
| Supply Voltage | 24VDC control system supply |
| Communication Function | Internal excitation system communication |
| Measurement Function | Excitation system operating data processing |
| Mounting | Excitation cabinet installation |
| Dimensions | Approx. 380 × 142 × 73.5 mm |
| Weight | Approx. 1.54 kg |
| Typical Application | Steam, gas, and hydro generator excitation systems |

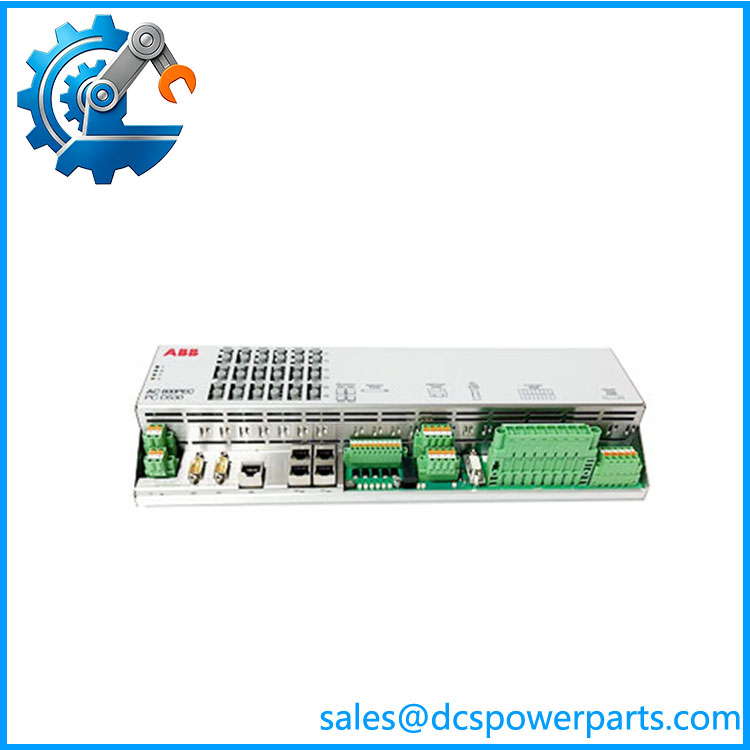

PCD530A102-3BHE041343R0102
Related Products
- ABB PCD230A102 — UNITROL 6000 communication and control module variant. Used in earlier UNITROL configurations with different system arrangements.
- ABB PCD231A102 — Related UNITROL communication/control hardware. Applied where converter interface functions differ from standard CCM applications.
- ABB PP D113 B01 AC800PEC Controller — Controller module used within UNITROL 6000 systems. Provides higher-level processing functions while the handles CCM tasks.
- ABB PC D232 A CIO Module — Combined input/output module for UNITROL 6000 systems. Supports signal acquisition and interface functions.
- ABB UA D215 A102 — Converter Signal Interface module. Handles converter-related measurement and interface functions within excitation cabinets.
- ABB UNITROL 6000 Excitation System — Main application platform for . Used for synchronous generator excitation control in power plants.
- ABB UNS0881a-P GDI Module — Gate Driver Interface component used in UNITROL converter sections.
Frequently Asked Questions (FAQ)
1. What is the ABB 3BHE041343R0102 used for?
The ABB 3BHE041343R0102 is a Communication Control & Measurement module used in ABB UNITROL 6000 excitation systems. It processes communication, measurement, and control-related functions required for generator excitation operation.
2. Can I hot-swap the ABB ?
Normally, no. Excitation control modules should be replaced only under approved maintenance procedures.
Typical replacement steps:
- Record existing hardware configuration.
- Backup applicable excitation parameters.
- Isolate control power.
- Replace the module.
- Restore settings and perform functional checks.
Excitation systems directly affect generator voltage control, so controlled commissioning is required.
3. Does the ABB support firmware v3.1?
The is not typically managed like a standard PLC CPU with user-selected firmware versions.
Compatibility depends on:
- UNITROL 6000 software release
- AC800PEC controller configuration
- Hardware revision
- Application parameters
The installed system revision should be checked before replacement.
4. Will replacing the ABB erase my excitation settings?
The module itself is not the same as the complete excitation application database.
After replacement, engineers should verify:
- Communication configuration
- Measurement scaling
- Excitation parameters
- Alarm settings
- Generator response performance
5. How can I verify a New Surplus ABB 3BHE041343R0102?
Recommended inspection steps:
- Confirm ABB identification label.
- Verify order code 3BHE041343R0102.
- Check module revision information.
- Inspect connectors and housing condition.
- Test communication before installation.
6. What systems are compatible with ABB ?
The module is associated with ABB UNITROL 6000 X-power excitation systems. Compatibility depends on the installed excitation cabinet design, controller version, and application configuration.
7. Is ABB suitable for generator modernization projects?
It is primarily used for maintaining existing UNITROL 6000 installations. During modernization projects, engineers should review excitation topology, converter hardware, communication requirements, and commissioning procedures before selecting replacement components.
