ABB MCU2A02V24 | Motor Protection Controller | MCC Spare

Description

ABB INSUMMCU2 MCU2A02V24 | Motor Control Unit | Motor Protection & Control

Key Technical Specifications

The ABB documentation describes the MCU as an electronic motor-control and protection device with a fieldbus interface. It is installed in the motor starter and communicates with other starter equipment through digital/analog I/O while communicating with other MCUs and control systems through the fieldbus.

Product Introduction

The ABB INSUMMCU2 MCU2A02V24 is a high-function Motor Control Unit within ABB’s INSUM motor-management architecture. Its primary job is to protect, control, and monitor AC motors and their associated starter equipment. Compared with MCU1, the MCU2 platform provides a broader set of motor and starter protection, control, and monitoring functions, with additional process-control capabilities.

The is intended to operate as part of an integrated motor-starter assembly rather than as a standalone PLC. The hardware architecture consists of a baseplate, main unit, current-measurement unit, and—on installations—a voltage unit when voltage measurement is required. The current-measurement unit contains the measurement transformers, while the main unit contains the MCU electronics.

This distinction matters when sourcing a replacement. Purchasing the electronic MCU without confirming the installed baseplate, current-measurement range, voltage-unit configuration, and communication architecture can result in a unit that cannot reproduce the original motor-starter configuration.

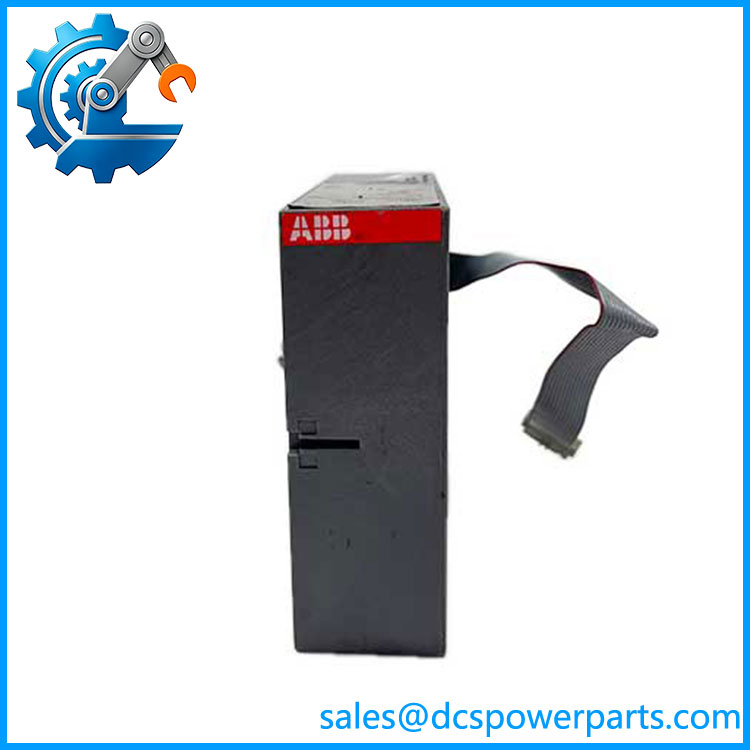

INSUMMCU2 MCU2A02V24

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A motor-control unit in an MCC drawer does much more than issue a start/stop command. It sits between the motor starter, current and voltage measurement hardware, protection functions, local control circuitry, and the plant-level control network. When an INSUM unit fails, replacing the electronics without checking the measurement unit and configured motor data can create nuisance trips, incorrect current readings, or communication problems.

Typical Applications

1. Low-Voltage Motor Control Centers

The INSUM architecture is intended for motor starters and motor-control applications where individual motor protection and control need to be integrated with the higher-level automation system.

2. Motor Protection

provides a more comprehensive protection and monitoring function set than the basic MCU1 platform. The controller can supervise motor operating conditions and starter status rather than relying solely on conventional electromechanical protection.

3. Motor Starter Monitoring

The MCU exchanges information with starter equipment through digital and analog I/O and communicates with other MCUs and control systems through the fieldbus interface.

4. Process Plant MCC Applications

INSUM equipment is particularly relevant to installations where many motors are managed as part of an integrated MCC and automation architecture. The design supports additional process-control-related functions beyond basic motor protection.

Technical Pitfalls

1. Confirm the current-measurement range.
The architecture supports two primary current-measurement ranges: 0.1–3.2 A and 2.0–63 A. The correct range is determined by the installed Current Measurement Unit, so the MCU electronics should not be treated as a universal replacement regardless of motor rating.

2. Verify the 24 VDC configuration.
The V24 designation identifies the 24 VDC auxiliary-power configuration. also exists in configurations using a voltage unit and different auxiliary-power arrangements, so similar-looking units should not be substituted solely on the basis of the family designation.

3. Check the baseplate.
The MCU is a modular assembly. The main unit and Current Measurement Unit plug into the baseplate, while the optional voltage unit connects separately. A replacement MCU should therefore be checked against the installed mechanical and electrical assembly rather than considered an independent PLC module.

4. Confirm the voltage-measurement arrangement.
The voltage unit is an option and contains three-phase voltage measurement transformers and electronics for auxiliary power supply 2. Its presence is automatically detected by internal code signaling.

5. Do not assume every has identical communication hardware.
INSUM MCU documentation covers multiple fieldbus and gateway configurations. The exact installed communication architecture should be checked before replacing a unit. The INSUM documentation separately identifies Modbus, PROFIBUS, Ethernet, and system-clock/gateway documentation, so a generic claim that every uses one particular protocol would be unsafe.

6. Record motor parameters before replacement.
For a field replacement, preserve the existing motor protection parameters, current-transformer range, starter configuration, communication address, control logic, and trip settings where applicable. A physically compatible MCU with an incorrect parameter set can behave differently from the original unit.

7. Be cautious with online claims about processor and I/O specifications.
Several secondary listings assign specific CPU architectures, memory capacities, I/O counts, IP ratings, and unrelated communication protocols to . Those values are not necessary to identify the product and should not be used as acceptance criteria without matching the exact ABB hardware revision. The ABB MCU documentation instead defines the product through its modular motor-control architecture.

Related Products

• ABB MCU1 — Basic INSUM Motor Control Unit with a smaller function set.
• — Higher-function Motor Control Unit family.
• ABB MCU2A01C0-4 — Related configuration with different ordering characteristics.
• ABB INSUM Baseplate — Mechanical/electrical carrier for the MCU main unit and measurement hardware.
• ABB INSUM Current Measurement Unit — Provides the current transformers used by the MCU.
• ABB INSUM Voltage Unit — Optional assembly for three-phase voltage measurement.
• ABB INSUM PROFIBUS Gateway — Gateway hardware for connecting the INSUM system to PROFIBUS-based control architectures.
• ABB INSUM Modbus Gateway — Gateway option for Modbus-based system integration.
• ABB INSUM Ethernet Gateway — Ethernet communication option within the INSUM architecture.

Procurement Note

For ABB INSUMMCU2 MCU2A02V24, the safest procurement approach is to match the complete MCU designation, hardware revision, current-measurement unit, baseplate, voltage-unit arrangement, and fieldbus architecture.

The most important field checks are:

1. Photograph the existing MCU nameplate.
2. Record the installed current-measurement-unit range.
3. Confirm whether a voltage unit is installed.
4. Record the auxiliary supply configuration.
5. Identify the fieldbus/gateway arrangement.
6. Preserve the original motor protection and control parameters before replacement.

Engineering classification: ABB INSUMMCU2 is an INSUM Motor Control Unit for integrated AC motor protection, control, measurement, and monitoring in motor-starter/MCC applications.
