Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | LDSTA-01 |
| Part Number | 63940143B |
| Related ABB ID | 3BHB007441P0001 |
| Manufacturer | ABB |
| Product Type | Thyristor Status Board |
| Primary Function | Thyristor/SCR status monitoring |
| Application | ABB excitation and power-converter cabinets |
| Board Format | Cabinet-installed PCB |
| Signal Function | Status sensing, isolation and signal conditioning |
| Fieldbus | Not confirmed as a standalone fieldbus module |
| Input/Output Channel Count | Not reliably confirmed |
| Supply Voltage | Exact rating for revision B not reliably confirmed |
| Operating Temperature | Exact rating for revision B not reliably confirmed |
ABB-related references identify LDSTA-01 / 3BHB007441P0001 as a THY. STATUS BOARD, with 63940143 listed as the replacement product ID.
There is substantial catalog-quality noise around LDSTA-01 63940143B. Some reseller pages classify it as an analog-input module and publish 24 VDC, 16-channel digital input, isolation, and DIN-rail specifications. Those descriptions conflict with the stronger references identifying LDSTA-01 as a thyristor status board. I would not publish those electrical specifications as confirmed for this part.
Product Introduction
The ABB LDSTA-01 63940143B is a legacy thyristor status monitoring board used with ABB power-electronics equipment. Its documented role is associated with monitoring the condition or status of thyristor/SCR power sections and providing conditioned status information to the associated control architecture. ABB documentation and product references identify the LD STA-01 as a THY. STATUS BOARD, rather than a conventional PLC analog-input module.
For maintenance engineers, the important point is that this is a system-specific power-electronics board. The exact cabinet, thyristor assembly, connectors, PCB revision, and mating control hardware should be confirmed before replacement. Generic descriptions such as “analog input module” are not sufficient evidence of compatibility.

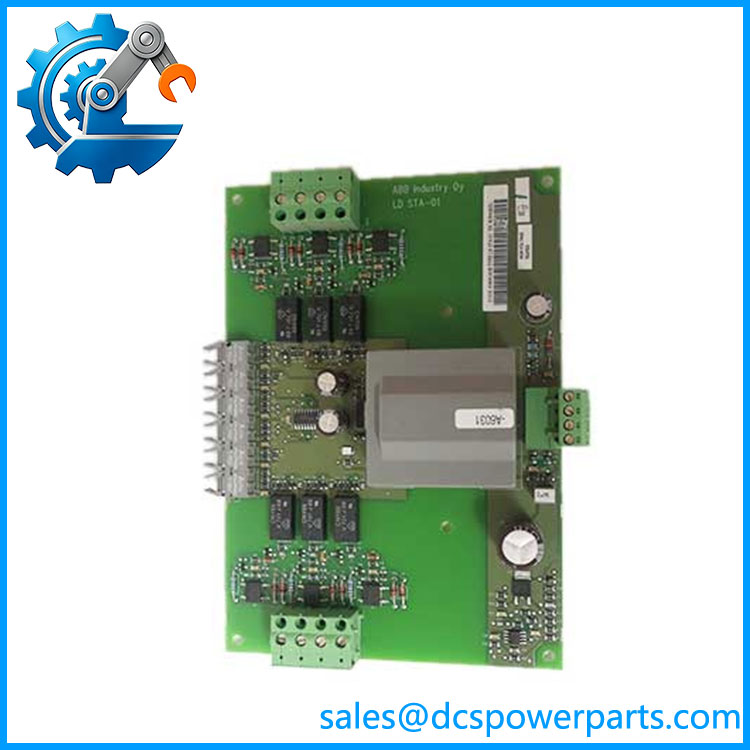

LDSTA-01 63940143B
Application Scenarios & Field Pitfalls
Engineering Pain Point
Legacy thyristor converters and excitation systems often divide measurement, firing, status monitoring, and control functions among several dedicated PCBs. A failed status board can therefore produce converter alarms without the actual thyristor power devices being defective. Replacing the wrong board based on a generic I/O description can introduce a second fault.
Typical Applications
- ABB excitation systems — monitoring SCR/thyristor power-section status.
- Industrial rectifier cabinets — status feedback from thyristor-based power conversion.
- Legacy medium/high-power drive systems — interface between power-unit status signals and control electronics.
- Power-generation equipment — maintenance of older ABB excitation and converter control cabinets.
Technical Pitfalls to Avoid
- Do not classify LDSTA-01 as a standard analog-input card. The stronger identification is THY. STATUS BOARD.
- Do not rely on generic 24 VDC/16-DI specifications. Those values appear in reseller listings but are not adequately supported for this exact 63940143B assembly.
- Verify the complete identification. Check , 63940143B, 3BHB007441P0001, PCB revision, and the installed cabinet before approving a replacement.
- Check neighboring power-electronics boards. appears in the same legacy ABB ecosystem as LDMTR-01, LDMUI-01, SCYC51213, and SCYC51220, but these boards have different functions and are not substitutes.
Related Products
- 3BHB007441P0001 — ABB identification associated with ; ABB references list 63940143 as the replacement product ID.
- LDMTR-01 63940135F — Related legacy ABB converter hardware; associated with the measurement/module-register function rather than thyristor status monitoring.
- LDMUI-01 61320946C — Legacy ABB interface module used in related power-converter architectures.
- SCYC51213 63911607C — Thyristor/cycloconverter firing unit; performs firing control rather than status monitoring.
- SCYC51220 63901075C — Pulse-amplifier hardware in the same legacy converter ecosystem.
- SCYC51204 63912476C — Transient-absorber hardware for related converter protection.
- PPC907BE 3BHE024577R0101 — ABB processor/control hardware used in related power-conversion systems.
- UFC911B106 3BHE037864R0106 — ABB power-converter control hardware from a related architecture.
- UFC921A101 3BHE024855R0101 — Related ABB converter-control board requiring application-specific verification.
Procurement Check
For a replacement, specify ABB 63940143B and verify the 3BHB007441P0001/63940143 identification, PCB revision, host excitation or converter cabinet, thyristor power-unit arrangement, connectors, and adjacent control boards.
Do not approve this part as a generic 24 VDC analog/digital I/O module solely from a reseller specification. The available evidence supports its identification as a thyristor status board, while detailed electrical ratings for the exact 63940143B revision remain insufficiently documented.
