Description

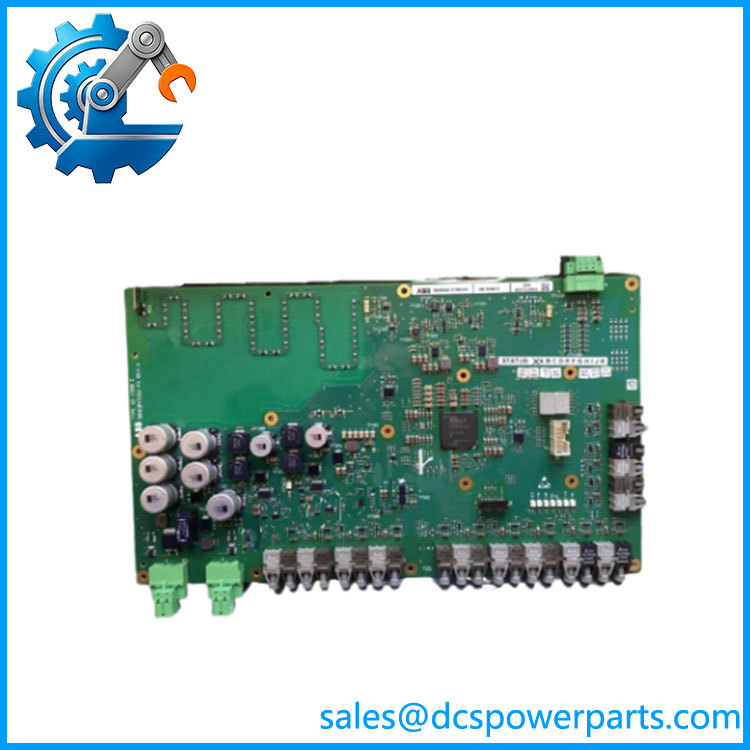

ABB GDD360C 3BHE047217R0101 Gate Driver Board
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | GDD360C / GD D360 C |
| ABB Part Number | 3BHE047217R0101 |
| Board Type | Gate Driver / Power Electronics Interface |
| Primary Function | Semiconductor gate control and protection |
| Power Devices | IGCT / IGBT applications reported |
| Control Interface | Fiber-optic trigger input |
| Status Interface | Fiber-optic feedback reported |
| Auxiliary Supply | 24 VDC reported |
| Gate Drive | +15 V / -8 V reported for applicable configurations |
| Drive Channels | 6 channels reported for an IGBT configuration |
| Protection | DESAT / overcurrent / undervoltage protection reported |
| Installation | Power-unit / converter assembly |
| Application | Medium-voltage drives and power converters |
The GDD360C is described as the interface between low-voltage control electronics and the high-power semiconductor stage. Available technical descriptions specify fiber-optic command reception, isolated gate driving, and fault/status feedback, with IGCT and IGBT power-device applications reported.
The commonly published 24 VDC auxiliary supply and +15 V/-8 V gate-drive levels should be treated as configuration-dependent values, not universal specifications for every GDD360C installation. ABB system drawings and the board nameplate should take priority.
Product Introduction
The ABB GDD360C 3BHE047217R0101 is a specialized gate-driver board used in high-power ABB converter and medium-voltage drive architectures. Its role is fundamentally different from a conventional PLC I/O card: it sits close to the power semiconductor stage and converts control commands into appropriately isolated gate-drive signals while monitoring the switching device for fault conditions.
Fiber-optic signaling is particularly important in this application because the gate-driver circuitry operates at the interface between low-voltage control electronics and high-voltage/high-current power devices. A failure here can present as a drive power-unit fault rather than a conventional controller or communication error.
GDD360C 3BHE047217R0101
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The critical issue with the GDD360C is power-stage compatibility. This is not a general-purpose ABB control card that can be selected solely by physical dimensions or connector arrangement.
Typical Applications
- Medium-Voltage Variable-Frequency Drives — Gate control within ABB MV inverter power units.
- IGCT Power Stacks — Fiber-optic triggering and protection associated with high-power IGCT devices.
- IGBT Power Units — Applicable configurations use dedicated gate-drive channels for IGBT modules.
- Power Conversion Equipment — High-power converter systems requiring isolated semiconductor control.
Technical Pitfalls to Avoid
- Do not classify it as a generic digital I/O module.
Several reseller pages use this description, but it conflicts with the more technically consistent gate-driver identification. A 24 V/4–20 mA I/O specification found on such pages should not be used to engineer a replacement. - Verify the exact power-semiconductor configuration.
IGCT and IGBT gate-drive requirements are not interchangeable. Confirm the power unit, semiconductor device, gate-driver wiring, and optical-fiber assignments before commissioning. - Check fiber routing and channel assignment.
Fiber connectors may carry device-specific firing commands or status feedback. A swapped fiber can produce immediate power-unit faults or incorrect switching behavior. - Do not energize a repaired power unit without checking protection feedback.
DESAT, overcurrent, undervoltage-lockout, and interlock functions are part of the gate-driver protection chain in reported configurations.
Related Products
- ABB 3BHE047217R0101 — Exact gate-driver board covered by this page.
- ABB GDD471A001 2UBA002322R0001 — Related ABB power-electronics control hardware; function differs from .
- ABB GFD563A101 3BHE046836R0101 — Related ABB drive/power-electronics board.
- ABB GFD563A102 3BHE046836R0102 — Related hardware revision within the same general power-electronics environment.
- ABB 5SHX2645L0004 — ABB 4.5 kV IGCT power semiconductor used in compatible high-power drive architectures.
- ABB 5SHX1960L0004 — Related IGCT device for ABB medium-voltage power applications.
- ABB ACS6000 — Medium-voltage drive platform associated with this class of power-electronics hardware.
- ABB UNITROL — Excitation-system family in which related power-electronics hardware may be encountered; verify the exact system configuration before substitution.
Procurement Check
For an ABB 3BHE047217R0101 replacement, verify:
- Type: / GD D360 C
- ABB Part Number: 3BHE047217R0101
- Power-unit model
- IGCT or IGBT configuration
- Gate-driver revision
- Fiber-optic connector arrangement
- Fiber channel assignment
- Auxiliary supply requirements
- Existing protection/interlock wiring
- Controller and power-stack revision
- Original ABB cabinet or drive drawing
Field recommendation: treat 3BHE047217R0101 as a power-semiconductor gate-driver board, not as a standard PLC/DCS I/O module. The conflicting online descriptions are significant enough that the installed drive’s power-unit documentation should be used to validate the replacement before energization.
