Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DSMB-02C |
| Product ID | 64666606 |
| Reference Number | 3AFE64666606 |
| Product Type | Control Board |
| Primary Platform | ABB ACS800 drive systems |
| PCB Construction | 4-layer |
| Board Dimension Reference | 384 × 54.5 mm |
| Net Weight | Approx. 0.3 kg |
| Drive Functions | Control, parameter processing, signal handling |
| Speed Reference | Supported within configured drive application |
| Analog Inputs | Application/configuration dependent |
| Digital Outputs | Application/configuration dependent |
| Analog Outputs | Application/configuration dependent |
| Fieldbus | Application/configuration dependent |
| Modbus | Supported through applicable drive/control configuration |
| DDCS / DriveBus | Associated with ABB drive control architecture |
| Mounting | Internal drive/control assembly |
| Firmware | Drive-system dependent |
The ABB product record gives the official catalog description simply as “CONTROL BOARD”, rather than assigning it a generic PLC or DCS I/O designation.
Product Introduction
The ABB DSMB-02C 3AFE64666606 is a control board used within ABB drive-system hardware, particularly the ACS800 family. ABB’s product data identifies the component as a control board and associates product ID 64666606 with the DSMB-02C designation.
The ABB DSMB-02C handles functions associated with drive control and parameter processing rather than acting as a conventional standalone PLC CPU or S800 I/O module. A secondary technical listing reproduces a parameter/function structure covering start/stop selection, speed references, analog and digital I/O, speed control, torque control, motor temperature, brake control, current control, field excitation, 12-pulse operation, fieldbus, Modbus, DDCS, DriveBus, and adaptive programming.
The exact application depends on the host ABB drive and its software configuration. This is important when sourcing a replacement: DSMB-02C should be matched by the complete part number and host drive configuration, not treated as a generic digital output or Ethernet adapter.

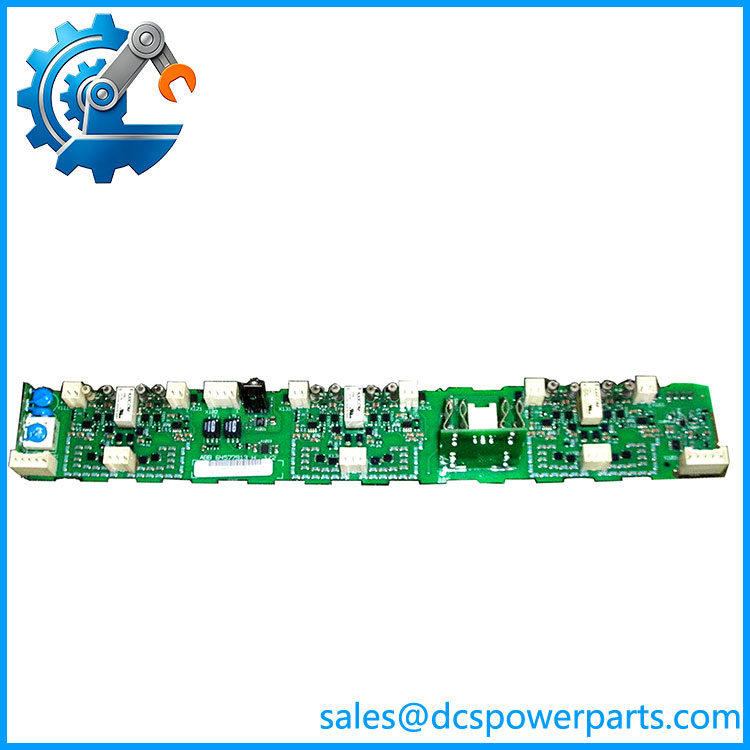

DSMB-02C 3AFE64666606
Main Features & Field Considerations
Drive control board
The DSMB-02C is a control-board assembly rather than a conventional field I/O module. ABB’s product record explicitly categorizes it as a CONTROL BOARD.
ACS800 association
ABB-derived product information lists ACS800DSUV3 under the products where this board is used. This provides useful evidence for its ACS800 drive-system association.
Drive parameter functions
Available documentation associated with the includes functions for start/stop, speed reference, speed control, torque reference, current control, field excitation, brake control, fieldbus, Modbus, DDCS, DriveBus, and adaptive programming. These are better understood as drive-system functions rather than independent capabilities of the PCB when removed from its host drive.
PCB identification
The ABB record identifies the board as a 384 × 54.5 mm 4-layer assembly and gives a net weight of approximately 0.3 kg.
Replacement risk
A replacement may be physically identical while carrying different firmware, hardware revision, or drive configuration. Before replacing the board, back up the drive parameters and record the existing control-board revision.
Replacement Checks
Before replacing an ABB 3AFE64666606, verify:
- designation
- 3AFE64666606 / 64666606 identification
- Host drive model
- Drive hardware revision
- Control-board revision
- Firmware/software revision
- Motor-control parameters
- Speed-reference configuration
- Torque/current settings
- Fieldbus or Modbus configuration
- DDCS/DriveBus connections
- Drive parameter backup
For an operating drive, record the existing parameter set before removing the control board. A board replacement should be followed by verification of motor identification, control mode, speed/torque limits, I/O assignments, and communication settings.
Important Specification Caution
Several reseller pages incorrectly describe the as a digital-output module, Ethernet adapter, or generic PLC/DCS controller. The ABB product data is much clearer: Product ID 64666606, ABB Type Designation , Catalog Description CONTROL BOARD.
I would also not publish 220 VAC input, 50 kHz output frequency, 16 digital channels, 118 mA rated current, IP45 protection, or 233 kW motor rating as intrinsic specifications. Those figures appear in reseller-generated pages and are not supported by the ABB product record.
Likewise, the 24 VDC / 100–150 mA figures found on another secondary listing should not be treated as confirmed board-level electrical specifications without the relevant ABB manual.
Procurement Note
Recommended procurement description:
ABB 3AFE64666606 / 64666606 — ACS800 Drive Control Board
For an installed ACS800 system, provide the supplier with the complete part number, control-board revision, host drive model, and existing firmware/parameter information. That is much safer than purchasing based on the generic description “ABB digital output module.”
