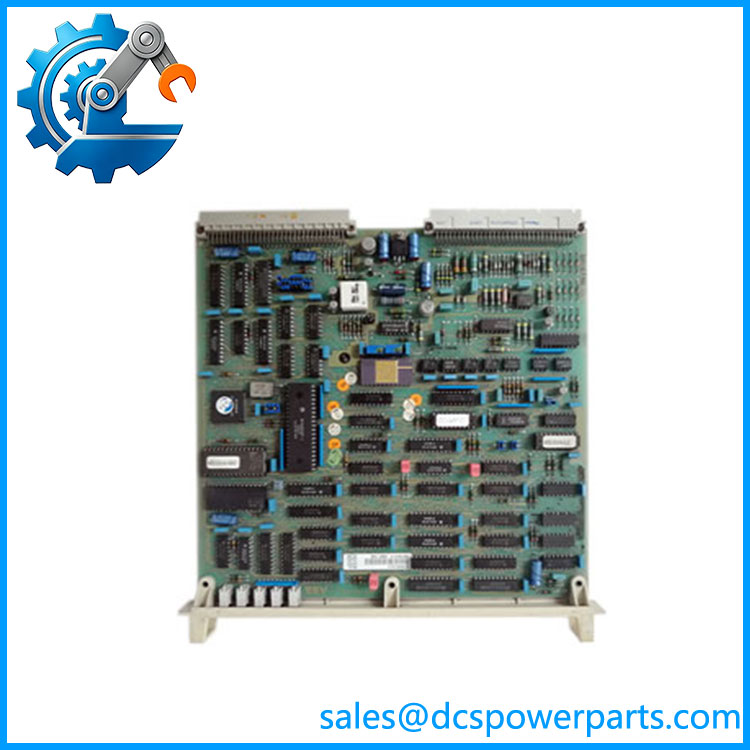

ABB DSDP140B 57160001-ACX Counter Board
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DSDP 140B |
| Product ID | 57160001-ACX |
| Exchange Number | EXC57160001-ACX |
| Product Type | Counter Board |
| System | ABB Advant Master Process Control System |
| Function | Pulse/counting signal processing |
| Net Width | 255 mm |
| Net Height | 20 mm |
| Net Depth | 350 mm |
| Net Weight | 0.44 kg |
| Battery | None reported |
| HS Code | 85389091 |
ABB’s product record explicitly describes the DSDP 140B as a Counter Board and associates the part with the Advant Master Process Control System. It also identifies the unit as a control-system accessory rather than a standalone PLC CPU, communication module, or drive.
Some secondary technical listings describe the as a high-speed pulse-counting board with additional digital I/O and analog-output functions. Those sources are not sufficiently consistent to treat every claimed channel count, frequency limit, or electrical rating as an OEM-level specification. For procurement purposes, the verified identification and the actual installed-system documentation should take precedence.
Product Introduction
The ABB 57160001-ACX is a specialized counter board used within ABB’s legacy Advant control architecture. Its primary role is the processing of counting or pulse-related signals where the control system needs hardware-level measurement rather than relying solely on ordinary analog or digital process inputs. This makes the board relevant to applications involving rotating equipment, pulse-generating instruments, measurement systems, and other process signals that require counting.
For maintenance engineers, the important distinction is that is a dedicated counter board, not a general-purpose I/O card. ABB identifies it specifically as a Counter Board, and its physical dimensions and exchange number are important when sourcing a replacement for an existing Advant installation.
DSDP140B 57160001-ACX
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed counter board can be difficult to diagnose because the symptom may appear elsewhere in the control loop. A speed value may stop updating, a pulse total may remain fixed, or a position-related calculation may become invalid while the controller itself continues running normally. Replacing the CPU or general I/O hardware in this situation can waste considerable troubleshooting time.
The ABB 57160001-ACX should therefore be considered when the fault is isolated to a counting or pulse-processing function within an Advant installation. Before replacement, compare the failed board’s complete part number, hardware revision, connected field wiring, and configuration with the proposed spare.
Typical Applications
1. Pulse Counting
The board can be used where pulse-generating field devices provide signals that must be accumulated or processed by the control system.
2. Rotating Equipment Monitoring
Counting pulses from speed or position-related devices can support measurement functions associated with rotating machinery.
3. Position and Motion-Related Measurement
Where a process produces discrete pulses corresponding to movement or position, a dedicated counter board can provide a more suitable interface than conventional process I/O.
4. Legacy Advant Control Systems
The is particularly relevant for plants maintaining older ABB Advant-based installations where the existing application and I/O architecture remain in service.
Technical Pitfalls
Do not mistake the for a servo drive.
Several online listings incorrectly describe this part as a digital servo drive and publish unrelated motor-control specifications such as 400 VAC input and 16 A output. Those claims conflict directly with ABB’s identification of the unit as a DSDP 140B Counter Board.
Verify the host system before substitution.
The board belongs to ABB’s legacy Advant control ecosystem. A modern ABB AC 800M or S800 I/O component should not be assumed to be a functional substitute simply because it can perform counting functions.
Check the complete ordering code.
The correct identification is 57160001-ACX, with EXC57160001-ACX shown as the exchange number. The suffix should be retained during procurement because similar ABB DSDP-family designations may represent different hardware.
Do not rely on generic channel specifications from reseller pages.
Online listings vary substantially in their descriptions of pulse inputs, digital I/O, analog outputs, and maximum counting frequency. If those values affect the replacement decision, verify them against the plant’s original ABB documentation or the installed board revision rather than using an unverified listing.
Inspect the field signal source.
A counter-board fault should not be assumed when the actual problem may be a failed encoder, proximity switch, pulse generator, field cable, terminal connection, or signal-conditioning circuit.
Check the configuration after replacement.
A physically correct spare does not automatically mean that the complete counting function will operate correctly. Review the controller configuration, signal assignments, scaling, counting mode, and any associated application logic before returning the system to service.
Related Products
- ABB 57160001-ACX — Dedicated counter board for the legacy Advant control architecture.
- ABB DSAI130 — Analog input hardware in the Advant/S100 family; intended for analog process signals rather than dedicated pulse counting.
- ABB DSAO120A — Analog output hardware in the same general legacy architecture; functionally different from .
- ABB DSAX110 — Mixed I/O hardware; should not be treated as a direct counter-board replacement.
- ABB DSBC176 — S100 bus-related hardware with a different system role.
- ABB DSCS 140 — Communication-related Advant hardware; not a substitute for a counting interface.
- ABB DSDI 451 — Remote input expansion hardware with a different signal-interface function.
- ABB DSTC 121 — Advant connection-unit hardware rather than a counter board.
Procurement Note
For a replacement , the safest procurement approach is to match the complete ABB part number and installed system architecture, rather than relying on the generic description “counter module.” ABB’s own product data identifies this unit as a Counter Board for the Advant Master Process Control System and lists EXC57160001-ACX as its exchange number.
For used or refurbished inventory, request photographs of the nameplate, PCB markings, connector area, and revision information. Also verify whether the existing board is being replaced on a like-for-like basis or as part of a larger Advant migration. This distinction matters because a modern replacement strategy may require changes to the I/O architecture, configuration, and field wiring rather than a simple board swap.
