ABB DSAO110 57120001-AT/1 | 4-Channel Analog Output Module | S100 DCS Replacement

Description

Key Technical Specifications

ABB’s product information identifies DSAO 110 as a four-channel analog output module with 0–10 V and 0–20 mA signal ranges, 0.05% accuracy, and isolated outputs. The S100 I/O guide specifically shows DSAO 110 connected to a DSTA 160 through a DSTK 153 cable, with four isolated voltage or current outputs.

Revision note: The /1 suffix is documented in service/repair references as 57120001-AT/1, while ABB’s base product documentation identifies the underlying product as 57120001-AT / DSAO 110. Do not assume /1 and /2 are electrically identical without checking the board marking and system documentation.

Product Introduction

The ABB DSAO110 57120001-AT/1 is a four-channel isolated analog output module belonging to the ABB S100 I/O architecture used with legacy Advant process control systems. It converts controller output commands into field-level 0–10 V or 0–20 mA signals for devices such as control valves, actuators, positioners, and other analog process equipment. The I/O documentation identifies DSAO 110 as the four-channel analog-output object and specifies the DSTA 160 connection unit for field termination.

For maintenance teams, the important characteristics are the four-channel configuration, isolated outputs, and 0.05% accuracy. The ABB DSAO110 57120001-AT/1 is therefore primarily a legacy-system replacement component rather than a modern standalone analog output card; compatibility depends on the I/O architecture, connection unit, cable arrangement, and controller configuration.

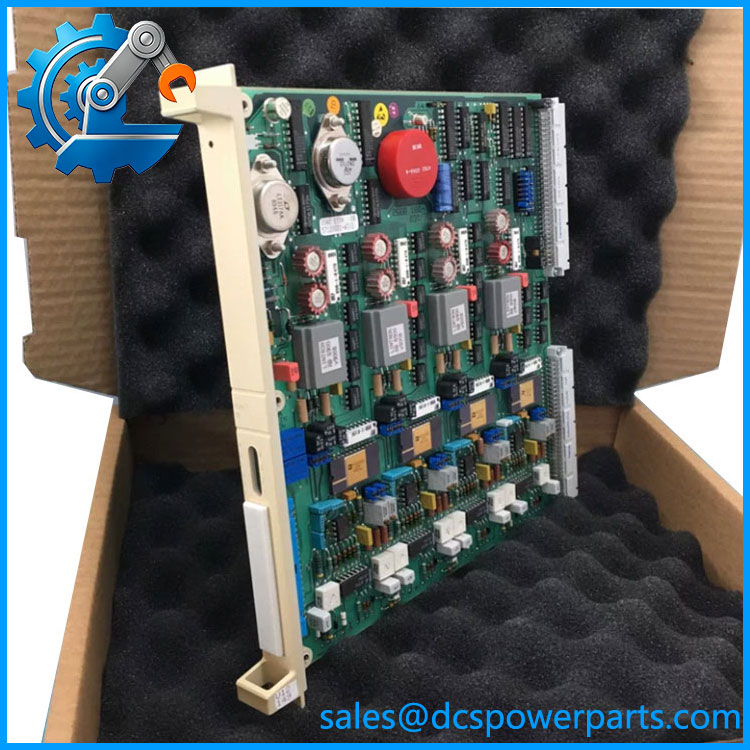

DSAO110 57120001-AT/1

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

The difficult part of replacing a DSAO110 57120001-AT/1 is rarely the analog signal itself. The real issue is preserving the existing I/O wiring and channel assignment without introducing a mismatch between the board, connection unit, cable, and controller configuration.

The original architecture uses a DSTA 160 connection unit and DSTK 153 cable between the DSAO 110 and field wiring. The I/O guide shows four individual output circuits with separate voltage/current terminals, so channel-by-channel documentation matters during replacement.

Typical Applications

• Process control valves: 0–10 V or 0–20 mA command signals for valve positioners and actuators.
• Industrial drive interfaces: Analog reference signals for legacy motor-control and variable-speed equipment where the control architecture still uses analog commands.
• Chemical and petrochemical processes: Output control for flow, pressure, temperature, and level loops within legacy Advant control systems.
• Utilities and power processes: Analog commands to field controllers, dampers, actuators, and other process equipment.
• Legacy DCS maintenance: Replacement of failed analog-output boards without immediately migrating the complete control system.

Technical Pitfalls to Avoid

1. Do not substitute a modern output board based only on channel count.
The DSAO 110 is specifically a four-channel isolated output module. Signal type, isolation, terminal arrangement, and controller configuration all need to match the existing installation.

2. Verify the DSTA 160 and DSTK 153 before replacing the board.
ABB’s documentation explicitly associates DSAO 110 with the DSTA 160 connection unit and DSTK 153 interconnection cable. A board replacement should therefore include a physical inspection of the cable and terminal assembly, not just the PCB.

3. Pay attention to the /1 revision suffix.
The base ABB product is 57120001-AT, while the requested component is 57120001-AT/1. For a control-system spare, the complete marking should be compared against the installed board before installation. Revision differences can matter even when the functional product designation remains DSAO 110.

4. Do not treat the documented replacement as a direct plug-in swap.
ABB identifies DSAO 120A + DSTA 171 as the replacement for the DSAO 110 + DSTA 160 combination and specifically notes that wire reconnection is required. This is an engineering migration, not simply a board-for-board exchange.

5. Verify output scaling in the controller.
A field device expecting 4–20 mA should not be assumed to be equivalent to a 0–20 mA configuration. Confirm the controller’s engineering range, output scaling, field device input specification, and loop wiring before commissioning.

Related Products

• DSAO 120A — 57120001-EY — Eight-channel analog output module. It provides twice the channel capacity of DSAO 110 and is part of ABB’s documented replacement path when combined with DSTA 171.
• DSTA 160 — Original connection unit associated with DSAO 110. It provides the field termination for the four isolated analog outputs.
• DSTK 153 — Interconnection cable used between the DSAO 110 and DSTA 160. Cable condition should be checked during board replacement.
• DSTA 171 — Newer connection unit used with DSAO 120A in the documented DSAO 110 replacement arrangement.
• DSAO 120 — 57120001-EY — Eight-channel analog output family member; useful when evaluating a higher-channel-count architecture, although the exact replacement configuration should follow ABB system documentation.
• DSAI 130 — analog input module for systems requiring analog signal acquisition rather than analog output.
• DSAI 133 — Higher-channel-count analog input board for larger analog input requirements.
• DSDO 120 — digital output family component for discrete rather than continuous analog control.
• I/O Chassis — The rack/backplane architecture in which DSAO 110 operates; compatibility must be established at the complete system level.

Procurement Note

For ABB 57120001-AT/1, verify the complete board marking, revision suffix, front-plate version, associated DSTA 160, DSTK 153 cable, controller configuration, and field signal type before procurement. ABB’s own product information identifies the DSAO 110 as a legacy component and documents DSAO 120A + DSTA 171 as its replacement combination, but also explicitly states that reconnection of field wiring is required.

For an installed plant, retaining a correctly matched DSAO 110 spare can be preferable to starting an unplanned migration during a production outage, particularly when the surrounding hardware remains serviceable.
