Description
Product Overview

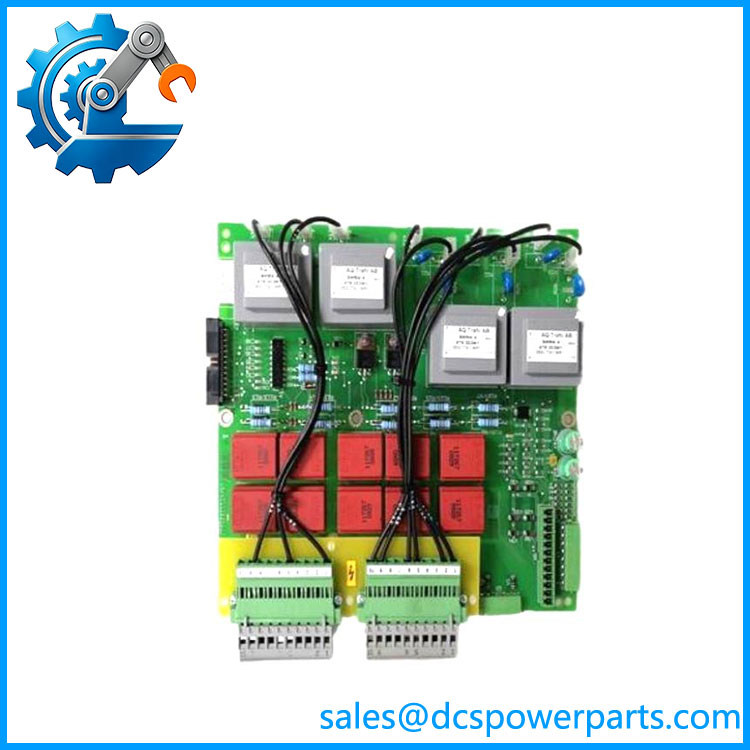

ABB 3ASC25H208 DATX100 is a pulse transformer board designed for ABB industrial power-electronics systems where reliable isolation between control electronics and high-power switching devices is required. The board forms part of the gate-trigger interface system, transferring controlled firing pulses from the regulation electronics to semiconductor power stages such as thyristor converters. ABB lists the unit as “DATX 100; Pulse transformer board”, confirming its primary role as a pulse transformer interface board rather than a conventional PLC or DCS I/O module.
The ABB DATX100 3ASC25H208 is commonly associated with ABB drive and converter applications where accurate pulse timing and electrical separation are required. In a thyristor-based power converter, the firing pulse determines when the semiconductor device begins conduction. The pulse transformer circuitry provides the necessary isolation between the low-voltage control section and the higher-energy power section, helping protect sensitive control electronics from switching transients.
Unlike standard automation I/O cards, ABB 3ASC25H208 DATX100 operates as a power-electronics interface component. It does not process field signals, execute application logic, or replace a controller module. Its purpose is within the trigger chain between the control board and the converter power stage.
For maintenance engineers working with legacy ABB drive or excitation equipment, ABB 3ASC25H208 DATX100 should be matched by the complete board identification because similar ABB boards within the 3ASC25Hxxx family may perform different interface functions. A replacement should be verified against the installed converter type, firmware/control board combination, connector arrangement, and pulse-channel requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DATX100 |
| Part Number | 3ASC25H208 |
| Product Type | Pulse Transformer Board |
| Main Function | Gate pulse isolation and transmission |
| Application Area | Industrial drives and power converters |
| Signal Type | Trigger/firing pulse signals |
| Isolation Method | Pulse transformer isolation |
| Typical System Role | Interface between control electronics and power modules |
| Compatible Equipment | ABB drive/converter systems (model dependent) |
| Board Weight | Approx. 1.03 kg |
| Dimensions | Approx. 215 × 200 × 35 mm (reported) |
| Lifecycle | Legacy ABB spare component |
ABB product data identifies the board as a Pulse transformer board with product ID 3ASC25H208 and ABB type designation DATX 100.
Main Features and Advantages
Pulse Signal Isolation
The primary function of DATX100 3ASC25H208 is electrical isolation of trigger signals. Power converters operate with high voltage and high current switching devices, requiring separation between the control electronics and the power stage.
The pulse transformer interface allows the firing command to cross this isolation boundary while maintaining the timing relationship required for semiconductor operation.
DATX100
Thyristor Converter Interface
The board is mainly associated with power-electronics systems using controlled rectifiers and similar switching structures. Correct pulse timing is essential for:
- Converter output regulation
- Current control
- Voltage control
- Excitation control
- Motor drive operation
Protection of Control Electronics
The isolation provided by the pulse transformer reduces exposure of low-voltage control circuitry to electrical disturbances generated by power switching devices.
This is especially important in older industrial drives where converter assemblies remain in operation for decades.
Legacy ABB Drive Support
Many ABB power-control systems installed in industrial plants continue operating beyond their original service life. Maintaining spare boards such as can reduce downtime when a trigger interface board fails.
Direct Board-Level Replacement
Replacing the pulse transformer board is often more practical than replacing a complete converter assembly when the fault is isolated to the trigger interface section.
Application Scenarios
Industrial Motor Drives
The can be used within ABB drive systems where controlled semiconductor switching is required for motor-speed regulation.
Typical equipment includes:
- Large industrial motors
- Rolling mills
- Pumps
- Fans
- Compressors
- Mining equipment
Generator Excitation Systems
Controlled rectifier systems used for generator field excitation rely on accurate firing pulses for voltage regulation.
Thyristor Power Converters
Applications include:
- DC drives
- Controlled rectifiers
- Converter bridges
- Industrial power-control systems
Heavy Industry Automation
Legacy ABB converter systems in steel, marine, energy, and process industries may still depend on DATX-series boards.
Related Components
- ABB (3ASC25H208) — Pulse transformer board.
- ABB DATX110 (3ASC25H209) — Related DATX-series board.
- ABB DATX120 / DATX121 series — Related power-electronics interface boards.
- ABB DASD series power modules — Associated ABB drive power-stage components appearing in DATX documentation references.
- ABB drive control boards — Provide firing commands and regulation signals to the pulse transformer interface.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Classify as a PLC I/O Module
Some online databases incorrectly describe 3ASC25H208 as a digital I/O module or general control module.
ABB’s own product description identifies it as:
DATX 100; Pulse transformer board
This distinction matters because the board belongs to the power-electronics trigger circuit.
⚠️ Verify the Complete Drive Application
Before replacement, confirm:
- ABB drive/converter model
- Control board type
- Power semiconductor module type
- Pulse-channel arrangement
- Connector assignment
- Software/control revision
A board from a similar ABB converter may fit physically but produce incorrect firing signals.
⚠️ Inspect the Power Stage Before Replacing the Board
A failed may be a symptom rather than the original cause.
Check:
- Thyristor/IGBT condition
- Gate wiring
- Pulse transformer outputs
- DC bus faults
- Snubber circuits
- Cooling system condition
- Converter protection alarms
⚠️ Refurbished Testing Requirements
A proper evaluation should include:
- Visual PCB inspection
- Connector inspection
- Power supply verification
- Pulse output testing
- Isolation verification
- Channel response testing
- Comparison against reference waveform
A simple “powers on” test is not sufficient for a trigger board.
Frequently Asked Questions
What is ABB 3ASC25H208 ?
It is an ABB Pulse Transformer Board used for isolated pulse transmission in industrial power-electronics systems.
Is a PLC module?
No. It is a power-electronics interface board, not a standard PLC I/O module.
What does the pulse transformer board do?
It transfers firing pulses from control electronics to semiconductor switching devices while maintaining electrical isolation.
Where is used?
Typical applications include ABB industrial drives, thyristor converters, excitation systems, and power-control equipment.
What should be checked before replacing 3ASC25H208?
Verify:
- Exact part number: 3ASC25H208
- ABB type:
- Drive/converter model
- Connector layout
- Trigger-channel requirements
- Existing control-board revision
- Pulse output test results
Is still produced?
It should be treated as a legacy ABB spare board. For critical equipment, maintain a tested spare and verify compatibility before installation.
