ABB CP405 | CP400 Touch Panel | AC500 HMI Replacement

Description

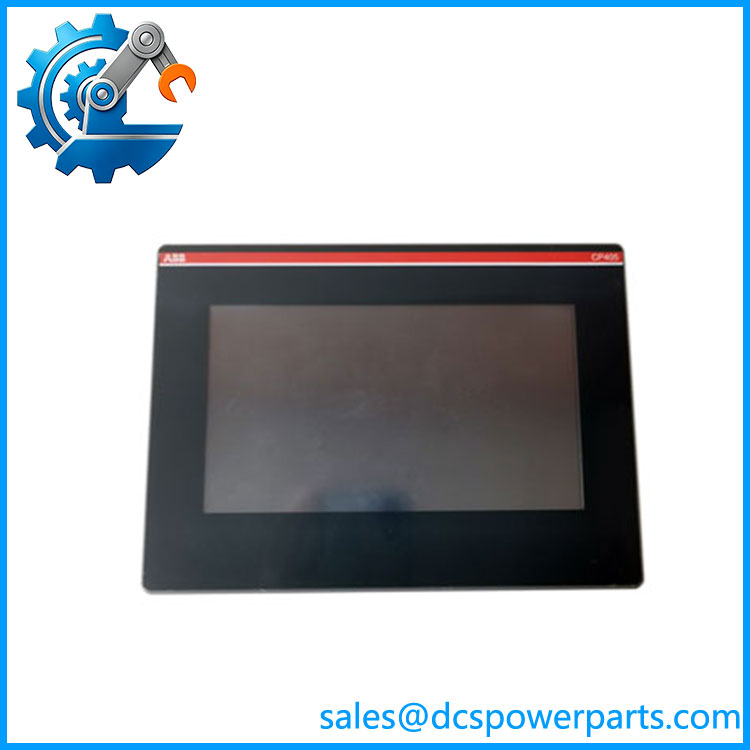

ABB CP405 | 7-Inch HMI Operator Panel | AC500 & Industrial Automation

Key Technical Specifications

ABB’s operating instructions specify the ‘s 4-wire resistive touchscreen, RS-232/RS-485/RS-422 serial interface, memory arrangement, environmental limits, and IP66 front-panel protection. The protection rating applies to the installed front face under the specified installation conditions, not automatically to the entire enclosure.

Product Introduction

The is a 7-inch CP400-series industrial HMI designed to provide a local operator interface for PLC and machine-control applications. Its 800 × 480 TFT display and resistive touchscreen support graphical process screens, alarms, trends, data entry, and operator commands, while the serial interface supports RS-232, RS-485, or RS-422 connections depending on the application configuration.

The is particularly relevant when maintaining installed automation equipment built around older ABB HMI hardware. ABB documentation identifies the as a product that runs CP400PB Panel Builder 400 applications, making the existing HMI project file and communication-driver configuration important when replacing a failed panel.

CP405

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

An HMI replacement is rarely just a matter of matching screen size. With a legacy , the critical issue is whether the existing application, communication driver, cable arrangement, and project software can be transferred to the replacement unit without changing the PLC-side configuration. A panel that powers up correctly but cannot communicate with the controller is still a failed replacement.

Typical Applications

AC500 PLC operator interface
The family was designed for industrial control applications and supports communication with ABB PLC platforms and other controllers through its available communication interfaces.

Machine control stations
The touchscreen can provide local access to machine status, commands, alarms, trends, and operating parameters.

Process equipment
The panel can serve as a local visualization and operator station where a dedicated industrial HMI is required.

Legacy automation maintenance
Existing installations can justify maintaining an exact spare when changing the HMI platform would require application redevelopment and site revalidation.

Technical Pitfalls

1. Do not confuse with newer CP600 models.
   belongs to the family and has a different hardware/software generation from CP600 panels.
2. Check the exact order number.
   ABB documentation identifies with ordering information including 1SAP500405R0001. Confirm the label on the installed unit before procurement.
3. Do not assume Ethernet is available.
   ABB’s documentation identifies the standard communication interface as RS-232/RS-485/RS-422, while ABB’s selection documentation specifically distinguishes from CP600 models that include Ethernet.
4. Preserve the original HMI project.
   The is designed around CP400PB Panel Builder 400. Before replacing a failed panel, recover the application project and document the PLC driver, address mapping, alarm configuration, and communication settings.
5. The resistive touchscreen is an aging component.
   Long-term use can produce calibration drift, reduced touch sensitivity, or localized response problems. A replacement should be checked across the entire touch area rather than only at the center of the screen.
6. Battery condition matters.
   The uses a backup battery for its hardware clock and also supports battery-backed RAM for certain memory functions. A used unit should therefore be inspected for battery condition and retained application/configuration data.
7. Lifecycle planning is important.
   ABB currently categorizes the family as legacy/limited-lifecycle hardware. For an installed base, keeping a tested spare can be more practical than waiting until a production outage forces an HMI platform migration.

Related Products

• ABB CP408 — 10.1-inch HMI with 1024 × 600 resolution; same /CP408 operating-instruction family.
• ABB CP604 — CP600-eCo 4.3-inch HMI with Ethernet; newer product family.
• ABB CP607 — CP600-eCo 7-inch HMI with Ethernet.
• ABB CP610 — CP600-eCo 10.1-inch HMI with Ethernet.
• ABB CP430B — Earlier 5.7-inch operator panel.
• ABB CP415M — Earlier 3.5-inch operator panel.
• ABB AC500 PLC — Common ABB controller platform used with CP-series HMI applications.
• ABB CP400PB / Panel Builder 400 — Engineering software used to create and manage HMI applications.

Procurement Note

For a replacement request, specify:

ABB — 7-inch TFT HMI — Series — Order Code 1SAP500405R0001

Also provide the existing project/application file, CP400PB version, PLC model, communication interface, cable/connector arrangement, and unit revision whenever available.

For used or surplus inventory, test the display for dead pixels and backlight degradation, exercise the complete touchscreen area, verify the serial communication port, inspect the front gasket, check the backup battery, and confirm that the unit can load the required CP400PB application. For a production-critical installation, an electrically tested spare is substantially more useful than a unit that has only passed a basic power-on test.

Engineering classification: ABB = -series 7-inch industrial HMI/operator panel, not a PLC CPU or standalone communication module.
