ABB CI534V02 3BSE010700R1 | 2-Channel MODBUS Interface | Advant OCS Communication
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | CI534V02 |
| Product ID | 3BSE010700R1 |
| Product Type | Communication Module |
| Interface Function | MODBUS Interface |
| Number of Channels | 2 |
| System Family | Advant OCS / Advant Master |
| Controller Context | Advant Controller 450 and related AC400 architecture |
| Module Architecture | Communication submodule |
| RoHS Status | Exempt from specified 2011/65/EU scope |
| Physical Dimensions | Approximately 238.5 × 108 × 27 mm, reported by secondary product records |
| Reported Weight | Approximately 0.8 kg in one current secondary record |
ABB’s own product detail confirms the two-channel MODBUS function and communication-module classification. The physical dimensions and weight are less consistently reported across secondary records, so they should be treated as procurement reference values rather than installation-critical specifications unless confirmed from the installed hardware documentation.
Important: Do not automatically apply specifications published for newer ABB AC 800M communication products to this part. Some third-party listings incorrectly associate with modern Ethernet, PROFINET, PROFIBUS, or multi-protocol functions. ABB’s own documentation places this exact part in the Advant Master/Advant Controller communication architecture and identifies it specifically as a MODBUS interface.
Product Introduction
The ABB 3BSE010700R1 is a two-channel MODBUS interface submodule designed for the communication architecture of ABB Advant OCS and Advant Controller systems. Its purpose is to provide MODBUS connectivity between the controller system and compatible external equipment, making it useful where an established Advant installation depends on MODBUS-based data exchange with drives, instruments, PLCs, or auxiliary control equipment. ABB explicitly identifies the module as a two-channel MODBUS interface rather than a general-purpose communication card.
For a plant maintaining an older Advant Controller 450 installation, is primarily a compatibility part. The communication protocol, controller generation, application configuration, and existing field wiring all need to match. It should not be selected simply because another ABB CI53x module appears physically similar; ABB’s spare-parts list distinguishes from CI532V02, CI532V03, CI534V04, CI541V1, and other protocol-specific interfaces.

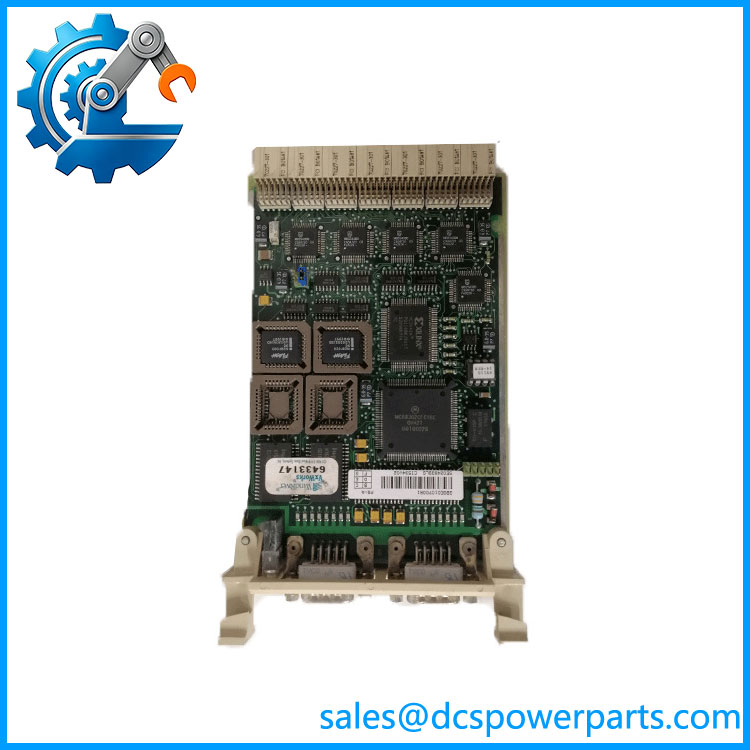

CI534V02 3BSE010700R1
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When an older DCS communicates with external MODBUS equipment, the communication module can become a surprisingly difficult spare to source. The controller may continue operating normally while one failed interface removes data from an entire group of connected devices. With , the practical challenge is not just finding a board that says “MODBUS”; it is finding the correct ABB submodule for the existing Advant architecture and application.
Typical Applications
- Advant Controller 450 communication — maintaining MODBUS connectivity within an existing AC450 installation.
- Legacy process-control systems — exchanging data between the Advant controller and compatible MODBUS equipment.
- Drive communication — maintaining established controller-to-drive communication where the original application uses MODBUS.
- Auxiliary PLC and instrumentation integration — supporting existing MODBUS-connected equipment without redesigning the controller architecture.
- DCS migration projects — keeping legacy MODBUS communications operational while a larger modernization project is engineered.
Technical Pitfalls to Avoid
- Do not confuse with CI532V02. ABB’s spare-parts documentation lists both parts separately. CI532V02 is identified as a MODBUS interface under a different CI532 family designation, while 3BSE010700R1 is specifically . Treat the complete ABB part number as the procurement identifier.
- Do not assume MODBUS means modern MODBUS TCP. Public listings sometimes describe this part as supporting MODBUS RTU and MODBUS TCP, but the ABB documentation retrieved for the exact part only establishes the general MODBUS Interface function. Do not publish a specific physical interface, baud rate, TCP capability, or serial standard without the applicable hardware manual or project documentation.
- Verify the controller architecture. belongs to the Advant Master communication-module population. ABB’s current spare-parts documentation places it alongside CI531, CI532 variants, CI541V1, CI543, CI547, and CI570 within the AC450 parts population.
- Check the communication configuration before replacement. A physical replacement does not automatically reproduce the controller application’s MODBUS configuration. Back up the existing application and document slave addresses, register mapping, communication parameters, and connected equipment before removing the installed module.
- Do not substitute by physical dimensions alone. Legacy ABB communication submodules can have similar mechanical formats while serving completely different protocols. CI541V1, for example, is a PROFIBUS-DP interface, while is the MODBUS variant.
- Inspect surplus units before energizing. Check connector condition, PCB contamination, corrosion, storage history, and board revision. For a legacy DCS spare, a functional test in the target controller environment provides considerably more useful evidence than a visual inspection alone.
- Check the exact revision and application baseline. The “V02” designation is part of the ABB type identification. Do not assume that another CI534 revision or a CI53x-family board provides equivalent firmware behavior or application compatibility.
Related Products
- ABB CI532V02 3BSE003827R1 — another two-channel MODBUS interface in the Advant communication family; similar protocol function but a different hardware designation and part number.
- ABB CI534V04 3BSE010702R1 — Allen-Bradley communication interface variant; useful when the external network requires the corresponding Allen-Bradley protocol rather than MODBUS.
- ABB CI531 3BSE003825R1 — RS-232-C interface for Advant Controller communication applications.
- ABB CI532V01 3BSE003826R1 — RCOM interface, two-channel version; different communication function from .
- ABB CI532V03 3BSE003828R1 — Siemens 3964(R) communication interface for the Advant architecture.
- ABB CI541V1 3BSE014666R1 — PROFIBUS-DP interface; a different fieldbus function and not a direct MODBUS replacement.
- ABB CI543 3BSE010699R1 — GCOM communication interface within the same general Advant communication-module population.
- ABB CI522A 3BSE018283R1 — AF 100 interface for Advant systems; appropriate when the plant architecture uses ABB Advant Fieldbus 100 rather than MODBUS.
- ABB CI570 3BSE001440R1 — MasterFieldbus interface used in the Advant Controller architecture.
Procurement Note
For , verify four things before issuing a purchase order: exact part number, Advant controller generation, MODBUS application requirement, and installed board revision. The fact that a replacement is described as a “MODBUS interface” is not sufficient evidence of compatibility.
ABB continues to identify 3BSE010700R1 / in its Advant Master spare-parts documentation, while the associated Advant Controller platform is a legacy system population. For a running plant, an exact tested spare is preferable to an apparently similar CI532/CI534-family communication board.
