ABB AIM0006 2RCA021397A0001F | 8-Channel Analog Signal Acquisition Module

Description

Key Technical Specifications

([turn0search1]turn0search4)

Product Introduction

ABB AIM0006 2RCA021397A0001F Product Introduction

ABB AIM0006 2RCA021397A0001F is an analog input module used in ABB industrial control systems for collecting process measurement signals from field instruments. It interfaces with transmitters and sensors, converting analog values such as 4–20 mA signals into data that can be processed by ABB DCS controllers. ([turn0search1]turn0search4)

The main value of ABB AIM0006 2RCA021397A0001F is supporting existing ABB Advant, Symphony Plus, and 800xA-based installations where replacing individual I/O modules is often more practical than performing a complete control system migration. Verify the installed controller family, I/O architecture, firmware compatibility, and redundancy configuration before replacement. ([turn0search4])

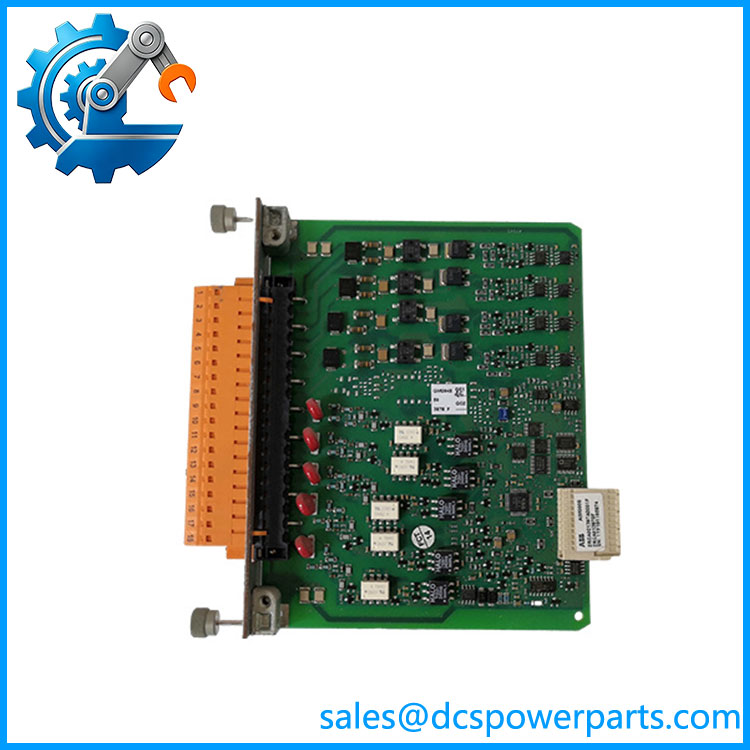

AIM0006 2RCA021397A0001F

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A pressure transmitter in a process unit starts showing unstable readings. The field device checks out, loop power is correct, and the transmitter output is within range. The issue turns out to be an aging analog input channel with degraded signal conversion or intermittent diagnostics.

Analog input modules are often overlooked during maintenance because they appear simple. They are not. They sit directly between field instrumentation and the control strategy.

Typical Applications

• Power Generation – Steam pressure, feedwater flow, boiler temperature, and turbine auxiliary monitoring.
• Chemical Processing – Pressure, level, flow, and temperature transmitter signal acquisition.
• Oil & Gas – Compressor stations, process skids, and refinery unit instrumentation monitoring.
• Water Treatment – Flow meters, tank level transmitters, chemical dosing measurement, and pump station monitoring.

Technical Pitfalls to Avoid

1. Verify Signal Type Before Replacement
   Confirm whether the field instrument uses 4–20 mA, HART-enabled communication, or another analog format. Incorrect channel configuration can create inaccurate process values.
2. Check Redundant Configuration Requirements
   If the module operates in a redundant arrangement, confirm the matching module type and system configuration. A single replacement card may not restore redundancy without proper engineering checks.
3. Record Existing Channel Parameters
   Before removing the original AIM0006, document scaling, alarm limits, and channel assignments. The hardware replacement does not automatically restore engineering settings.

Related Products

• ABB AIM0005 2RCA021396A0001F
  Analog input module from the same family with different channel capacity. Suitable for applications requiring fewer analog measurement points.
• ABB AOM0006 2RCA021398A0001F
  Analog output module used with AIM0006 in closed-loop control systems. Converts controller commands into field control signals for valves and actuators.
• ABB DIM0006 2RCA021400A0001F
  Digital input module for collecting equipment status signals such as switches, alarms, and interlocks.
• ABB DOM0006 2RCA021401A0001F
  Digital output module for controlling relays, solenoids, and other discrete field devices.
• ABB CI801
  Communication interface module used for connecting ABB I/O modules with higher-level control systems.
• ABB CI830
  Ethernet-based communication interface for ABB I/O systems used in newer control architectures.
• ABB AC800M 3BSE018161R1 PM864AK01
  Controller module commonly used in ABB 800xA systems to process signals received from distributed I/O modules.
• ABB S800 I/O System
  Modular I/O platform supporting analog and digital field signal integration in ABB process control systems.
