Description

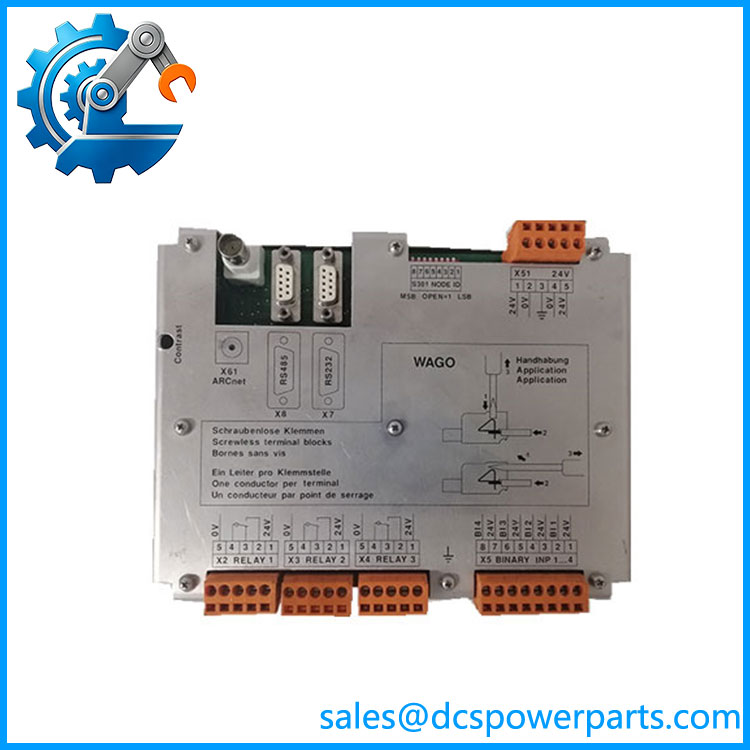

ABB AFC094AE02 HIEE200130R0002 | ARCnet Control Panel | UNITROL Excitation System
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | AF C094 AE02 |
| Model | AFC094AE02 |
| Product ID | HIEE200130R0002 |
| Product Type | ARCnet Control Panel |
| Communication Technology | ARCnet |
| Primary Role | Control/operator panel interface |
| Application | ABB industrial control / excitation systems |
| Product Net Weight | Approximately 1.2 kg |
| Product Net Depth | 285 mm |
| Product Net Height | 8 mm |
| Product Net Width | 21 mm |
| Country of Origin Listed | Switzerland |
| ABB Product Status | Legacy / configuration-specific spare |
ABB-derived product information identifies HIEE200130R0002 as AF C094 AE02 ARCnet control panel, with a listed net weight of approximately 1.2 kg and product dimensions of 285 mm depth, 8 mm height, and 21 mm width.
Some secondary listings state a 12 VDC supply and approximately 12.7 × 15.2 × 10.2 cm dimensions, while other records provide different physical data. Because these figures conflict with the ABB-derived product record, they should not be treated as verified specifications for the exact panel.
Product Introduction
The ABB AFC094AE02 HIEE200130R0002 is an AF C094 AE02 ARCnet control panel used as a legacy operator/control interface within ABB industrial automation architectures. The ARCnet designation is the important identification point: this is not a conventional AC 800M I/O module or a standard analog/digital input card.
The part is also associated in available industrial records with ABB UNITROL excitation systems, making it relevant to generator and power-generation control environments. For a replacement, the installed host system, ARCnet architecture, connector arrangement, and panel revision should be matched rather than relying on the AFC094AE02 model number alone.
AFC094AE02
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A failed AFC094AE02 can be mistaken for a controller or communication-module failure because the panel participates in the operator/control communication path. The correct troubleshooting approach is to separate the panel hardware, ARCnet communication path, host excitation controller, and application configuration.
Typical Applications
- ABB UNITROL excitation-system installations
- Generator excitation and power-generation control
- Legacy ABB ARCnet control architectures
- Industrial operator/control panel applications
- Existing ABB systems requiring a direct legacy spare
Technical Pitfalls to Avoid
- Do not classify AFC094AE02 as a generic digital I/O card.
ABB-derived product information identifies HIEE200130R0002 / AF C094 AE02 as an ARCnet control panel. A reseller description labeling it as a digital I/O card should not override the catalog identification. - Do not assume the panel is interchangeable with another ABB HMI.
The is tied to a specific legacy ARCnet architecture. A modern ABB operator panel may provide similar operator functions but is not automatically electrically or functionally compatible. - Verify the host excitation-system configuration.
The available records associate the unit with ABB excitation equipment, but the exact UNITROL generation and controller configuration should be confirmed from the cabinet drawing and original nameplate before replacement. - Reject unsupported electrical specifications.
Online listings disagree on dimensions, supply voltage, and I/O characteristics. Until an ABB manual or the original unit confirms those values, they should not appear in an engineering replacement specification.
Related Products
- ABB HIEE200130R0002 — Exact ABB material number corresponding to .
- ABB AF C094 AE02 — Alternate spacing/designation for .
- ABB UNITROL excitation systems — Host application family associated with available records for the panel.
- ABB UNS2880B-P V1 — Appears in some third-party databases under the same general ABB spare-parts ecosystem, but should not be treated as equivalent to without ABB documentation.
- ABB PP820 — Modern ABB operator panel family; different platform and not an automatic substitute.
- ABB AC 800M — ABB controller family often encountered in broader plant-control architectures, but should not be classified as an AC 800M I/O module.
- ABB ARCnet control hardware — Legacy communication/control components that may be present in the same system architecture.
Procurement Check
Before approving an ABB replacement, verify:
- Exact designation:
- ABB material number:
- Designation spacing: AF C094 AE02
- Original nameplate and revision
- Host ABB excitation/control system
- UNITROL system generation, if applicable
- ARCnet network architecture
- Connector and cable arrangement
- Physical panel dimensions
- Mounting arrangement
- Existing application/configuration
- Communication settings
- Any installed panel firmware or configuration data
Recommended procurement description:
ABB AF C094 AE02 ARCnet Control Panel, Legacy ABB Excitation / UNITROL System Operator and Control Interface.
The important distinction is simple: is an ARCnet control panel, not a conventional PLC/DCS I/O module. The safest replacement strategy is to match , the installed host excitation system, ARCnet architecture, physical interface, and original hardware revision rather than relying on generic specifications from reseller databases.
