Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Assembly Model | GVC736BE101 |
| IGCT Type | 5SHY4045L0003 |
| Associated ABB Number | 3BHB021400 |
| Assembly/Product Number | 3BHE019719R0101 |
| Product Type | IGCT Phase Module |
| Semiconductor Technology | IGCT — Integrated Gate-Commutated Thyristor |
| Primary Application | Medium-voltage power conversion |
| Drive Association | ABB ACS6000 |
| Power-Stage Position | Inverter / phase module |
| Switching Function | High-power controlled semiconductor switching |
| Gate Control | Integrated IGCT gate-drive architecture |
| Cooling | Application-dependent converter cooling system |
| Condition | New Surplus or Fully Tested Refurbished |
The identification chain is supported by multiple technical references: 5SHY4045L0003 / 3BHB021400 / 3BHE019719R0101 / GVC736BE101 is listed as an ABB phase-module combination, while an ACS6000 reference describes it specifically as an IGCT module in the INU unit.
One secondary technical listing reports a 0–55 VDC input range, 14–60 kHz frequency range, and a −40 to 85°F operating-temperature figure for this combined product. Those figures appear to describe the associated driver/control interface rather than the IGCT’s own power rating, so I would not use them as the semiconductor’s electrical limits without the original ABB converter documentation.
Application Scenarios & Pain Points
A failed IGCT is rarely an isolated event. The semiconductor may be the visible casualty of a DC-link fault, gate-drive problem, cooling issue, commutation abnormality, or another power-stage event.
- ABB ACS6000 medium-voltage drives: The GVC736BE101 phase module is associated with the ACS6000 INU inverter power stage.
- High-power motor drives: The IGCT provides controlled high-current switching within the inverter phase.
- Industrial power conversion: IGCT technology is suited to high-power converter architectures where switching losses and controlled commutation are significant design considerations.
- Legacy MV-drive repair: Useful when the installed phase module carries the complete 5SHY4045L0003 / 3BHB021400 / 3BHE019719R0101 / GVC736BE101 identification.
Field note: Do not replace an IGCT phase module in isolation after a catastrophic phase fault. Check the gate unit, snubber/clamping network, DC capacitor condition, cooling path, bus insulation, and neighboring semiconductor phases first. A fresh module can be destroyed during the first firing sequence if the original fault remains.
Brief Field Case
A typical MV-drive failure presents as an inverter-phase fault followed by a shutdown. The replacement decision should begin with the failed semiconductor and its gate circuit, then move outward through the DC link and cooling system. If the gate pulse is distorted or the clamping network is damaged, installing another expensive IGCT without correcting that condition is simply repeating the failure.

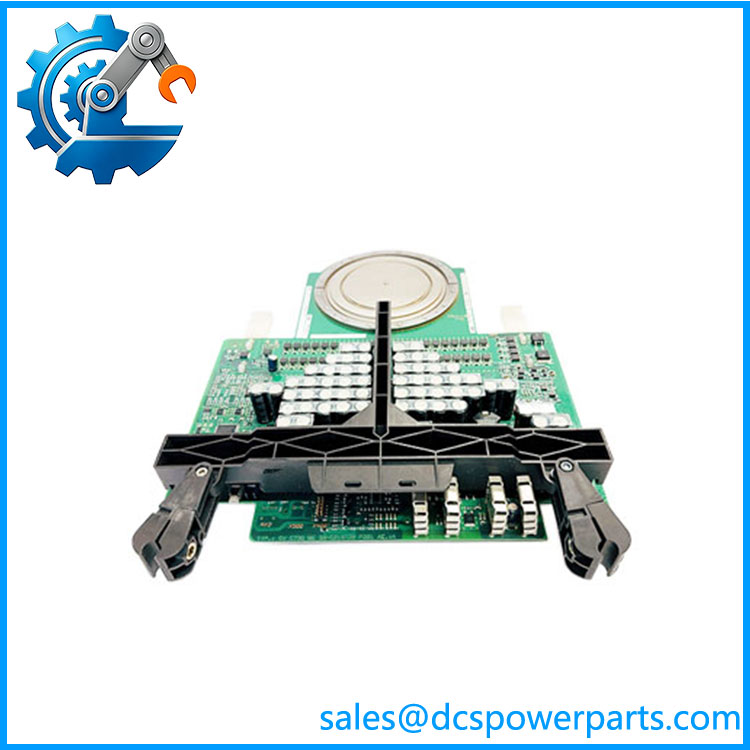

5SHY4045L0003
Related Products
- ABB GVC736BE101 / 5SHY4045L0003 — Subject phase-module assembly. The complete identification should be retained for a direct replacement.
- ABB 3BHB021400 — Associated ABB identification appearing with the 5SHY4045L0003/GVC736BE101 combination. Match the physical label when sourcing the assembly.
- ABB 3BHE019719R0101 — Associated product/assembly number used with . It should be checked against the converter spare-parts documentation.
- ABB 5SHY5055L0002 — Related IGCT/power-semiconductor identification found with the same / 3BHE019719R0101 family. Different semiconductor designation means it is not automatically interchangeable.
- ABB 5SHY3545L0016 / 3BHB020720R0002 — Another IGCT-related ABB combination associated with . Its part number and hardware configuration differ and require verification before substitution.
- ABB GVC736CE101 — Related GVC736 phase-module assembly. Available records associate it with different 5SHY/3BHB/3BHE identifiers, so it should not be treated as a direct replacement.
- ABB GVC750BE101 — Related high-power converter phase-module family using different IGCT assemblies such as 5SHY3545 variants. It is useful as a family reference, not a drop-in substitute.
- ABB 5SHX2645L0004 / GVC707AE01 — Another ABB power-semiconductor/converter combination. Different device and assembly architecture; applicable only to its specified converter design.
- ABB 5SHX1445H0001 / 5SXE05-0152 — Related ABB high-power semiconductor hardware. It belongs to a different device/assembly configuration and should not be substituted by physical similarity alone.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — Do not confuse the IGCT number with the complete phase-module identification.
5SHY4045L0003 identifies the IGCT device, while identifies the associated phase-module configuration. 3BHB021400 and 3BHE019719R0101 are additional ABB identifiers appearing with the assembly.
How to avoid it: Record every number from the original assembly. For procurement, specify the complete combination rather than requesting “a 5SHY4045L0003.”
WARNING 2 — Do not reuse an IGCT after a questionable gate-drive event.
The semiconductor and gate unit operate as a tightly coupled system. A gate-drive fault can produce abnormal turn-on or turn-off behavior and cause severe semiconductor stress.
How to avoid it: Verify gate-drive supply, pulse shape, isolation, gate-cathode circuit condition, and protection circuitry before commissioning the replacement.
WARNING 3 — Check the entire phase before energization.
A failed IGCT may be the result of another fault rather than the root cause.
How to avoid it: Inspect the DC-link capacitors, snubbers/clamps, bus insulation, cooling system, gate unit, neighboring phases, and mechanical mounting/contact surfaces. Look for carbon tracking, discoloration, cracked insulation, and loose thermal interfaces—small physical clues can tell you more than a generic fault code.
Frequently Asked Questions (FAQ)
What is ABB ?
is an ABB high-power IGCT phase-module assembly, associated with 5SHY4045L0003, 3BHB021400, and 3BHE019719R0101. References associate the assembly with the inverter/INU section of ABB ACS6000 equipment.
It is power-stage hardware, not a conventional PLC or DCS I/O module.
What is 5SHY4045L0003?
5SHY4045L0003 is an ABB IGCT semiconductor designation. IGCT means Integrated Gate-Commutated Thyristor. In the configuration, the device forms part of a high-power inverter phase module.
The IGCT should be evaluated together with its gate-drive and protection circuitry rather than as an isolated replacement component.
What is the relationship between 5SHY4045L0003 and ?
The available references associate 5SHY4045L0003 with the phase-module assembly. The same records also associate 3BHB021400 and 3BHE019719R0101 with this combination.
For purchasing, keep all four identifiers in the specification.
Is used in ABB ACS6000?
Available technical documentation specifically places 5SHY4045L0003 / 3BHB021400 / 3BHE019719R0101 / in the context.
That makes the association a useful procurement clue, but the exact drive rating and phase configuration should still be confirmed from the installed equipment nameplate.
Can I replace 5SHY4045L0003 with another 5SHY IGCT?
Not without engineering verification.
A different 5SHY designation can indicate a different semiconductor rating or electrical construction. Even if the mechanical package appears similar, the gate-drive requirements, switching characteristics, voltage/current capability, and protection arrangement may differ.
Match the original IGCT designation first. Consider an alternative only after comparing the complete converter design.
What should be inspected before installing a replacement ?
At minimum:
- DC-link voltage and capacitor condition.
- Gate-drive supply.
- Gate pulse waveform and timing.
- Snubber/clamping components.
- Cooling system.
- Semiconductor mounting/contact surfaces.
- Phase-to-phase and phase-to-ground insulation.
- Neighboring inverter phases.
- Busbar and connection torque.
- Evidence of arcing or carbon tracking.
This is particularly important because the phase module sits directly in the high-energy portion of the converter.
How should a refurbished be tested?
For a production-critical spare, request evidence covering:
- Exact identification.
- 5SHY4045L0003 device marking.
- 3BHB021400 identification.
- 3BHE019719R0101 identification.
- Semiconductor visual inspection.
- Insulation testing appropriate to the assembly.
- Gate-drive/interface verification.
- Controlled switching test where suitable.
- Thermal inspection.
- Test report and warranty.
A continuity check or visual inspection alone is not enough for an IGCT phase module.
Is 3BHE019719R0101 the same product as 5SHY4045L0003?
They should not be treated as interchangeable part numbers. Available records place 3BHE019719R0101 alongside and the 5SHY4045L0003/3BHB021400 semiconductor identification.
For procurement, use the complete identification chain so the supplier understands whether you need the semiconductor itself, the phase-module assembly, or the complete converter subassembly.
What condition should I specify when buying this ABB IGCT module?
For an emergency MV-drive spare, specify factory sealed/new surplus when possible, or fully tested refurbished with documented electrical testing.
Do not accept “tested” as sufficient by itself. Ask what was actually tested, at what conditions, and whether the test covered the gate interface and relevant power-stage behavior.
