Description
Key Technical Specifications
| Parameter | Value |
|---|---|

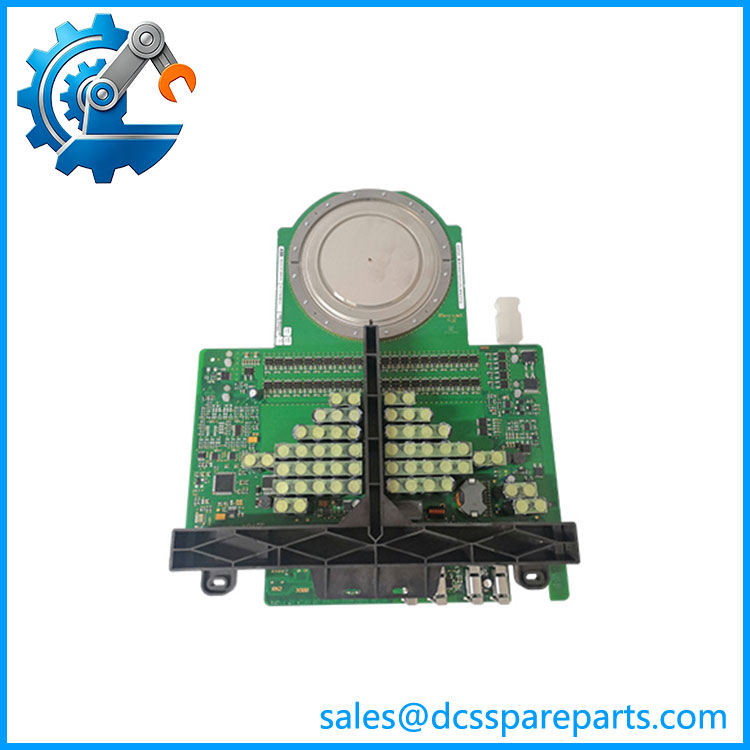

| Product Model | 5SHY35L4503 |
| ABB Material Number | 3BHB004693R0001 |
| Associated Part Number | 3BHB004692R0002 / 5SXE01-0127 |
| Manufacturer | ABB |
| Product Type | IGCT Power Semiconductor Module |
| Semiconductor Technology | Asymmetric Integrated Gate-Commutated Thyristor |
| Voltage Class | 4500 V |
| Current Rating | Approx. 3500 A class |
| Switching Function | High-power controlled switching |
| Package Style | Press-pack semiconductor module |
| Cooling Method | Forced cooling / converter cooling system dependent |
| Typical Systems | ACS6000 medium voltage drives, excitation systems, power converters |
| Application | Motor drives, power conversion, grid control equipment |
Application Scenarios & Pain Points
A failed IGCT does not always announce itself clearly. Sometimes the converter cabinet shows overcurrent trips, DC-link disturbances, or phase imbalance alarms before the actual semiconductor failure is confirmed.
Typical applications:
- Medium Voltage Motor Drives: Used inside ABB ACS6000 converter power stages for large motors in compressors, pumps, fans, and mills. The IGCT handles repeated high-energy switching during speed and torque control.
- Power Generation Systems: Applied in excitation and power conversion equipment where controlled energy transfer is required.
- Metals and Mining Equipment: Supports heavy-duty drive applications where converter downtime can interrupt production lines.
- Industrial Power Conversion: Used in high-power inverter and rectifier assemblies requiring high current switching capability.
Field note: A plant reported repeated converter trips during acceleration. Testing showed the control boards were healthy, but one power cell had abnormal switching behavior. After replacing the damaged IGCT assembly and checking gate drive timing, the drive returned to normal operation.
5SHY3545L0016
Related Products
- ABB 5SHY3545L0010 / 3BHB013088R0001 — Another ABB IGCT module family used in medium-voltage converter applications. Different electrical ratings require system verification before substitution.
- ABB 5SHY3545L0016 / 3BHB020720R0002 — Higher-performance IGCT variant used in ABB power converter assemblies. Requires matching with the original converter design.
- ABB 5SHX1960L0006 / 3BHB016120R0002 — Related power semiconductor component used in ABB converter systems.
- ABB 5SXE10-0181 / AC10272001R0101 — Larger IGCT module family for higher-power converter applications.
- ABB GVC736BE101 — IGCT gate control interface assembly used with specific ABB converter power modules.
- ABB GVC750BE101 — Gate unit assembly supporting different IGCT configurations. Requires exact semiconductor matching.
- ABB UFC721AE101 / 3BHB002916R0101 — ABB control electronics module used in power conversion systems, supporting control functions rather than direct power switching.
- ABB ACS6000 Drive System Components — Complete converter hardware family where IGCT modules, gate units, and control boards operate together.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Installing an IGCT Without Matching Gate Drive Hardware
The semiconductor module and gate unit operate as a matched pair. A correct-looking IGCT can still fail if the gate circuit parameters do not match.
How to avoid: Verify the gate unit model, firmware revision, and original converter documentation before replacement.
⚠️ Ignoring Mechanical Clamping Requirements
Press-pack IGCT devices depend on correct mechanical pressure for electrical and thermal performance.
How to avoid: Use the specified installation procedure and confirm clamping force. Uneven pressure can create overheating and premature failure.
⚠️ Replacing Only the Failed Semiconductor Without Checking the Cause
An IGCT failure may result from cooling problems, gate drive faults, snubber issues, or overcurrent events.
How to avoid: Inspect cooling paths, gate signals, DC-link conditions, and surrounding power modules before energizing the converter.
Frequently Asked Questions (FAQ)
What is the ABB 5SHY35L4503 used for?
The ABB 5SHY35L4503 is a high-power IGCT semiconductor module used in ABB medium-voltage converter systems, including ACS6000 drive applications and related power conversion equipment.
Is the 5SHY35L4503 a complete drive module?
No. It is a power semiconductor component inside a converter power stage. The complete system also includes gate units, cooling hardware, control electronics, and protection circuits.
Can 5SHY35L4503 replace other ABB IGCT modules?
Not automatically. Check:
- Voltage rating
- Current rating
- Gate unit compatibility
- Converter model
- Mechanical mounting arrangement
Different IGCT families may look similar but operate differently.
What causes ABB IGCT failures?
Common causes include:
- Excessive current stress
- Cooling problems
- Gate drive malfunction
- DC-link faults
- Mechanical installation errors
How should a replacement IGCT be inspected before installation?
Recommended checks:
- Visual inspection of the press-pack surface
- Verification of part numbers
- Inspection of gate connections
- Confirmation of cooling interface condition
- Review of converter fault history
Does replacing the IGCT require commissioning?
Yes. After installation, engineers should verify gate drive operation, converter diagnostics, current sharing, and startup behavior before returning the equipment to normal operation.
Is a refurbished ABB 5SHY35L4503 suitable for industrial service?
A tested refurbished unit can be suitable when semiconductor characteristics, physical condition, gate interface compatibility, and converter application requirements are verified before installation.
