ABB 5SHX2645L0004 3BHL000389P0104 | IGCT RC Power Semiconductor, 2.6 kV Class

Description

Key Technical Specifications

ABB’s own product-detail record is particularly useful here because it identifies 5SHX2645L0004 / 3BHL000389P0104 specifically as “IGCT RC”, rather than a generic control board.

The 2.6 kV / 450 A identification is also repeated by current technical listings, but I would treat those figures as device-class identification rather than a complete operating specification until the exact ABB semiconductor datasheet for the revision is available.

Product Introduction

ABB 5SHX2645L0004 3BHL000389P0104

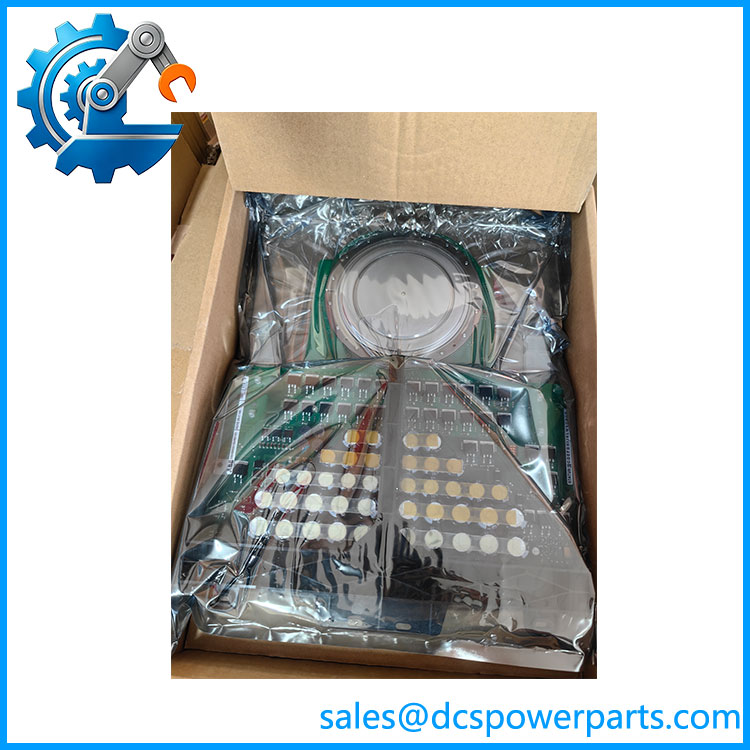

The ABB 5SHX2645L0004 / 3BHL000389P0104 is an IGCT power semiconductor assembly used in high-power power-conversion equipment. ABB’s product record explicitly identifies the catalog item as “IGCT RC,” with 5SHX2645L0004 as the ABB type designation.

This is power-stage hardware, not an automation I/O module. In a medium-voltage drive, the device is part of the switching path that converts and controls electrical power. The associated references 3BHB003154R0101 and 5SXE05-0156 appear with the same ABB component in equipment and spare-part records, so they should be retained when matching an installed assembly.

5SHX2645L0004

Application Scenarios & Field Pitfalls

Engineering Pain Point

When a medium-voltage drive trips catastrophically, replacing the failed semiconductor is rarely the whole repair. A shorted IGCT may be the result of a gate-drive problem, snubber fault, overvoltage event, cooling failure, or DC-link abnormality. Install a new device without finding the original failure mechanism and you can lose the replacement just as quickly.

Typical Applications

• Steel Mills — High-power variable-speed drives for rolling mills, pumps, fans, and auxiliary machinery.
• Mining — Medium-voltage drives for conveyors, mills, crushers, and large process motors.
• Cement Plants — High-power motor drives for mills, fans, compressors, and material handling.
• Power and Heavy Industry — Medium-voltage power-conversion equipment requiring high-current semiconductor switching.

Technical Pitfalls to Avoid

1. Do not classify this as a PLC or DCS module.
   The 5SHX2645L0004 is a power semiconductor component. ABB identifies it as an IGCT RC spare part.
2. Match the complete device identification.
   Confirm 5SHX2645L0004, 3BHL000389P0104, and the associated 3BHB003154R0101 / 5SXE05-0156 references. Do not substitute another 5SHX device simply because its voltage/current ratings look similar.
3. Inspect the gate unit before energizing.
   An IGCT depends on its gate-drive circuitry. Check the gate connection, gate-driver supply, firing signals, optical interface where applicable, and associated protection circuits.
4. Inspect the RC/snubber network.
   The ABB catalog description includes “IGCT RC.” Do not assume the semiconductor alone is the complete functional assembly. The associated snubber/RC arrangement and mounting configuration need to match the original drive design.
5. Check thermal interfaces.
   A semiconductor can be electrically correct and still fail because of poor thermal contact. Inspect heatsink surfaces, clamping hardware, thermal interface material, cooling airflow, and temperature monitoring.
6. Do not reuse damaged mounting hardware blindly.
   High-power semiconductor assemblies depend on controlled mechanical mounting. Uneven clamping can create excessive thermal resistance or mechanical stress.
7. Check the DC-link before replacing the device.
   Look for abnormal DC-bus voltage, capacitor problems, precharge faults, commutation issues, and evidence of overvoltage.
8. Inspect neighboring semiconductor positions.
   If one IGCT has failed catastrophically, inspect the other devices in the same converter leg. Do not assume the damage is isolated.
9. Do not apply generic gate-drive specifications.
   Gate voltage, gate current, firing characteristics, and protection thresholds are equipment-specific. The drive’s gate unit documentation takes precedence over generic IGCT information.
10. Perform controlled commissioning.
    After replacement, verify insulation, mechanical mounting, gate-drive operation, cooling, phase-leg behavior, DC-link measurements, and protective trips before returning the drive to full load.
