Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Device Type | IGCT Power Semiconductor Module |
| ABB Type | 5SHX2645L0002 |
| ABB Part Number | 3BHB012961R0001 |
| Associated Code | 3BHE009681R0101 |
| GVC Designation | GVC750BE01 |
| Semiconductor Technology | IGCT |
| Full Technology Name | Integrated Gate-Commutated Thyristor |
| Application Class | High-power converter switching |
| Typical Converter Topology | 3-level voltage-source converter |
| Rectifier Application | Active Rectifier Unit (ARU) |
| Typical Frequency Range | Approximately 1 kHz class, application-dependent |
| Primary System Association | ABB ACS 6000 / medium-voltage converter systems |
| Switching Function | High-power turn-on/turn-off semiconductor switching |
| Installation | Converter power stack |
| Product Category | Power semiconductor / converter spare |
Specification caution: The available documentation does not provide enough reliable evidence to publish a complete electrical rating table for voltage, current, gate drive limits, surge current, and thermal resistance. Those values should be taken from the exact ABB/semiconductor datasheet for the installed revision rather than inferred from the part number.
Product Introduction

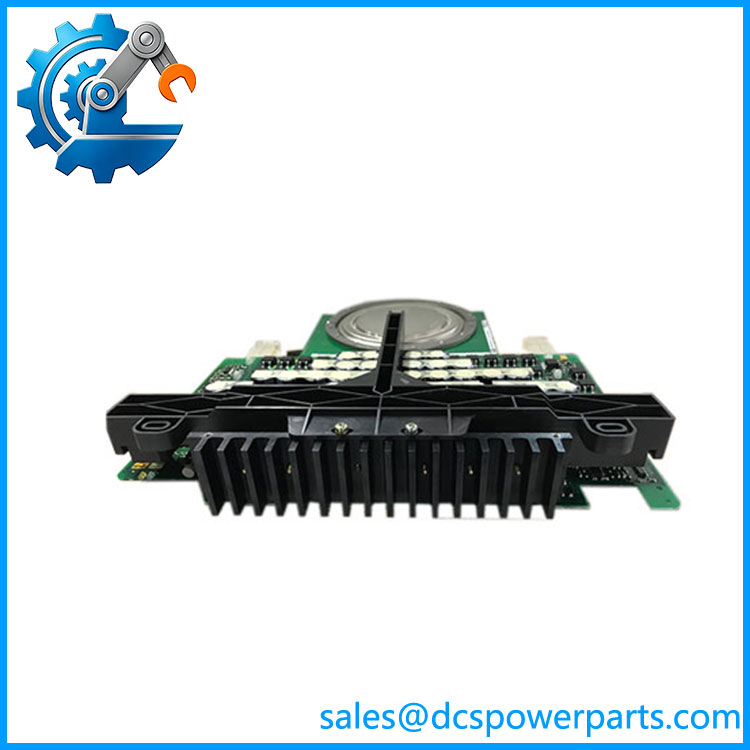

ABB 5SHX2645L0002 3BHB012961R0001
The ABB 5SHX2645L0002 3BHB012961R0001 is an IGCT power semiconductor module used in high-power converter architectures. IGCT technology combines a gate-controlled thyristor structure with an integrated low-inductance gate-drive arrangement, making it suitable for high-power switching applications.
For maintenance teams, this is a power-stage component, not a control-board spare. It is associated with ABB converter systems including ACS 6000-class applications and topologies such as active rectifiers and three-level voltage-source converters.
5SHX2645L0002
Application Scenarios & Field Pitfalls
Engineering Pain Point
When an IGCT fails in a medium-voltage converter, the visible symptom is often much larger than the failed component itself: converter trips, DC-link abnormalities, phase imbalance, or repeated semiconductor faults can bring an entire drive offline. Do not replace the IGCT and immediately re-energize the converter. A gate-driver fault, snubber problem, cooling issue, or DC-link fault can destroy the replacement just as quickly.
Typical Applications
- Medium-Voltage Drives — High-power inverter stages for large motors, compressors, pumps, and fans.
- Power Conversion — Three-level voltage-source converter architectures requiring high-power semiconductor switching.
- Active Rectifiers — Grid-side active rectifier units where controlled semiconductor switching regulates power flow.
- Industrial Power Systems — High-power converter equipment where IGCT technology is used to reduce semiconductor conduction and switching losses.
Technical Pitfalls to Avoid
- Do not treat it like a conventional thyristor.
The 5SHX2645L0002 is an IGCT, with its own gate-drive requirements and mechanical/electrical interface. The gate unit must match the semiconductor and converter design. - Do not replace only the visibly damaged device.
A failed IGCT can be the consequence rather than the root cause. Inspect the gate driver, clamp/snubber network, bus voltage, cooling system, and associated phase-leg components. - Check the exact part-number chain.
5SHX2645L0002 → 3BHB012961R0001 → 3BHE009681R0101 / GVC750BE01 appears in available records. Preserve the complete identification when purchasing a replacement. - Do not substitute by voltage/current rating alone.
Mechanical dimensions, gate-driver characteristics, switching behavior, thermal interface, and converter control timing all matter. - Inspect the thermal interface.
An IGCT power module depends on proper mounting pressure and thermal coupling. Poor mounting can create localized overheating even when the cooling circuit itself appears normal. - Check gate-drive signals before applying full DC voltage.
The control and gate-drive circuit should be verified according to the converter service procedure. A defective gate unit can cause an immediate repeat semiconductor failure. - Inspect the DC-link circuit.
Excessive DC-link voltage, commutation problems, or abnormal stored energy can overstress the semiconductor. - Do not use generic resistance measurements as a complete test.
A basic multimeter check can identify an obvious short, but it does not prove that an IGCT is electrically healthy under operating conditions. - Keep semiconductor handling controlled.
ESD, contamination, mechanical shock, and incorrect handling of the gate connection can damage or degrade the device. - Verify the converter topology.
The 5SHX2645L0002 is associated with applications including active rectification and three-level voltage-source conversion. The surrounding power stack determines the correct replacement strategy.
Related Products
- ABB 3BHB012961R0001 — The ABB part-number identification associated with 5SHX2645L0002. Use both numbers during procurement to avoid receiving a different semiconductor variant.
- ABB 3BHE009681R0101 — Related identification appearing with the 5SHX2645L0002 / GVC750BE01 configuration. Verify the exact physical marking before treating it as an equivalent.
- ABB GVC750BE01 — Associated GVC designation for this IGCT assembly. It is useful when cross-referencing converter documentation and cabinet drawings.
- ABB 5SHX2645L0004 — Related ABB IGCT-family device used in other converter configurations. It is not automatically interchangeable with 5SHX2645L0002; the complete converter power-stage specification must be matched.
- ABB 5SHX1445H0001 — Another ABB high-power semiconductor module associated with converter applications. It belongs to the same broad power-electronics component family but has different electrical characteristics.
- ABB 5SHX1960L0006 — Related ABB semiconductor module used in high-power converter hardware. The different type designation means electrical and gate-drive compatibility must be established before substitution.
- ABB 5SHY3545L0010 — Another ABB IGCT-family device associated with the GVC750BE101 converter hardware family. It is a related device, not a direct replacement for 5SHX2645L0002.
- ABB 5SHY3545L0016 — Higher-power-class IGCT-family hardware associated with GVC736BE101 configurations. It belongs to a different converter implementation and should not be cross-installed without OEM confirmation.
- ABB ACS 6000 — Medium-voltage drive/converter platform associated with this class of ABB IGCT power hardware. The exact converter type and power stack should be checked before selecting a replacement semiconductor.
- ABB GVC736BE101 — Related GVC power-electronics assembly designation used with other ABB IGCT devices. It is useful for distinguishing alternative converter power-stack configurations from GVC750BE01.
