Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 5SHX1445H0002 |
| Part Number | 3BHL000387P0101 |
| Product Type | RC-IGCT Power Module |
| Semiconductor Technology | Integrated Gate Commutated Thyristor |
| Voltage Rating | Approx. 4500 V |
| Current Rating | Approx. 1400 A |
| Device Structure | Reverse-conducting IGCT with integrated diode |
| Switching Function | High-power converter switching |
| Cooling Method | System-dependent forced cooling |
| Mounting Type | Press-pack / power stack installation |
| Application Systems | ACS6000, PCS6000, industrial converter platforms |
| Typical Use | Medium-voltage inverter and excitation applications |
Product Introduction

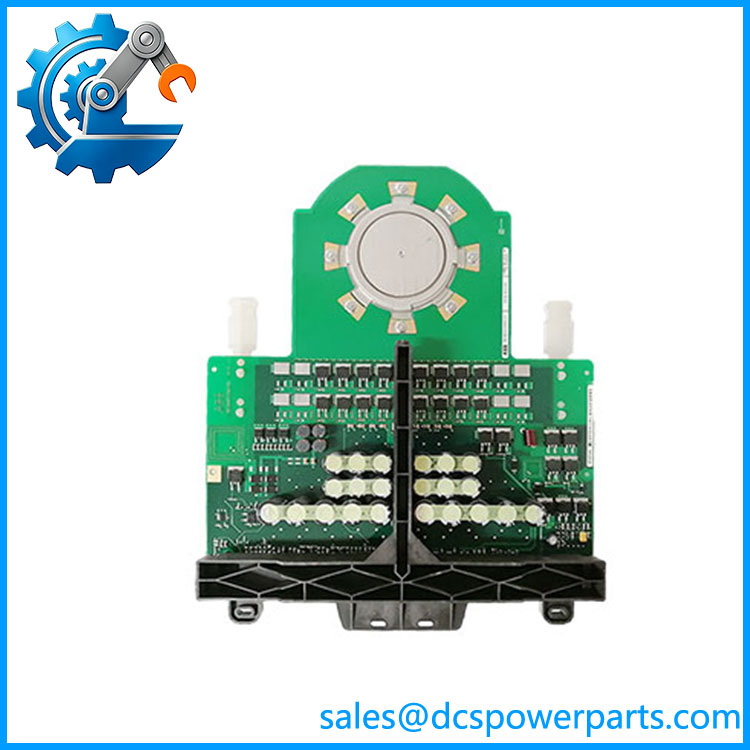

ABB 5SHX1445H0002 3BHL000387P0101 Overview
The ABB 5SHX1445H0002 3BHL000387P0101 is a high-power RC-IGCT (Reverse Conducting Integrated Gate Commutated Thyristor) module designed for demanding medium-voltage power conversion applications. It functions as a key switching component inside ABB converter platforms, where controlled switching of high electrical energy is required for motor drives, excitation systems, and industrial power conversion equipment.
The ABB 5SHX1445H0002 IGCT module combines a high-voltage semiconductor switching element with integrated gate control technology. Compared with conventional thyristor solutions, IGCT technology provides faster switching capability while maintaining the high current and voltage handling characteristics required in medium-voltage systems.
The ABB 3BHL000387P0101 power module is commonly installed in ABB ACS6000 and PCS6000 converter systems. Within these platforms, the module operates inside the power stack and controls current flow through inverter or converter circuits. Its performance directly affects converter efficiency, output stability, and equipment protection functions.
The ABB 5SHX1445H0002 RC-IGCT is typically used in applications involving large motors, compressors, pumps, fans, and industrial process equipment where variable-speed control is required. It is also used in specialized power conversion systems such as static excitation equipment and high-power converter installations.
When replacing an ABB 5SHX1445H0002, engineers should verify more than the part number. IGCT modules are integrated into carefully designed power stacks, and replacement requires confirmation of mechanical mounting, gate driver compatibility, cooling arrangement, snubber components, and converter configuration.
The 3BHL000387P0101 IGCT module should be evaluated as part of the complete power circuit. A converter trip may not always indicate semiconductor failure; possible causes include gate driver faults, cooling problems, DC link abnormalities, overcurrent events, or control system issues.
5SHX1445H0002 3BHL000387P0101
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving the ABB 5SHX1445H0002 include:
- Converter overcurrent trips
- IGCT firing failures
- DC link protection alarms
- Power stack imbalance
- Drive startup failures
Possible causes:
- Gate driver malfunction
- Cooling system problems
- Incorrect firing signals
- Excessive electrical stress
- Aging power components
Recommended troubleshooting steps:
- Check converter fault history
- Verify gate driver status
- Inspect cooling conditions
- Measure electrical parameters
- Check surrounding power stack components
- Confirm correct replacement module specification
The ABB 5SHX1445H0002 operates as part of a complete converter assembly, and semiconductor replacement should include inspection of related power components.
Typical Applications
Medium Voltage Drives
Used for:
- Large motor speed control
- Pump and fan applications
- Compressor drives
Industrial Power Conversion
Applied for:
- AC/DC conversion systems
- High-power inverter stages
- Energy conversion equipment
Static Excitation Systems
Used for:
- Generator excitation control
- Power plant rotating equipment
- Voltage regulation systems
Heavy Industry
Applied for:
- Steel production equipment
- Mining machinery
- Large process motors
Technical Pitfalls to Avoid
1. Verify Exact Semiconductor Variant
Confirm:
- 5SHX1445H0002 model
- 3BHL000387P0101 part number
- RC-IGCT configuration
- Converter compatibility
2. Inspect Gate Drive System
Check:
- Gate driver board
- Fiber optic trigger signals
- Protection circuits
- Fault feedback signals
3. Check Thermal Conditions
Verify:
- Cooling system operation
- Thermal interface condition
- Heat sink mounting
- Operating temperature history
4. Validate After Replacement
Perform:
- Insulation checks
- Gate signal verification
- Converter commissioning tests
- Load operation testing
