Description
Product Introduction
The ABB 500BIO01 1MRB150005R0001 is a binary input/output module used for discrete signal interfacing in ABB legacy automation and protection systems. The 1MRB200060/E designation is commonly associated with the same hardware assembly or PCB reference. Available technical references place the 500BIO01 within ABB’s 500-series and PROCONTROL-related equipment, where binary field signals must be acquired and control commands transferred between the system electronics and external equipment.
The ABB 500BIO01 is therefore best treated as a dedicated binary I/O interface, not as a modern standalone PLC CPU. Its practical role is to provide discrete signal acquisition and output switching within the host ABB system. Typical applications include monitoring circuit-breaker and disconnector states, processing alarm contacts, and issuing discrete control commands in substation or industrial automation environments.
There is conflicting information in secondary sources regarding exact channel counts, voltage ranges, and whether 1MRB200060/E represents the PCB revision or a subassembly. For procurement, those values should not be assumed from generic web listings. The physical nameplate, complete ordering code, system manual, and existing cabinet configuration should take precedence.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500BIO01 |
| Main Part Number | 1MRB150005R0001 |
| Hardware Reference | 1MRB200060/E |
| Product Type | Binary Input/Output Module |
| Signal Type | Binary / discrete |
| Application | Protection, control, and automation |
| Typical System | ABB 500-series / PROCONTROL P13-related systems |
| Input Function | Discrete field-state acquisition |
| Output Function | Discrete control command |
| Mounting | Rack/system-specific |
| Backplane Interface | System-dependent |
| Field Termination | System-dependent |
| Input Voltage | Verify exact hardware documentation |
| Output Rating | Verify exact hardware documentation |
| Channel Count | Revision/system dependent |
| Operating Temperature | Verify exact hardware documentation |
| Product Status | Legacy/service hardware |
Main Features and Engineering Considerations
Combined Binary I/O
The 500BIO01 integrates binary input and output functions into a single module. This makes it useful where a protection or automation system needs to both read discrete equipment states and issue discrete commands.
Typical field information can include breaker auxiliary contacts, isolator/disconnector positions, alarms, interlocks, and equipment status. Output circuits can be used for control commands or relay interfaces, depending on the installed system configuration.

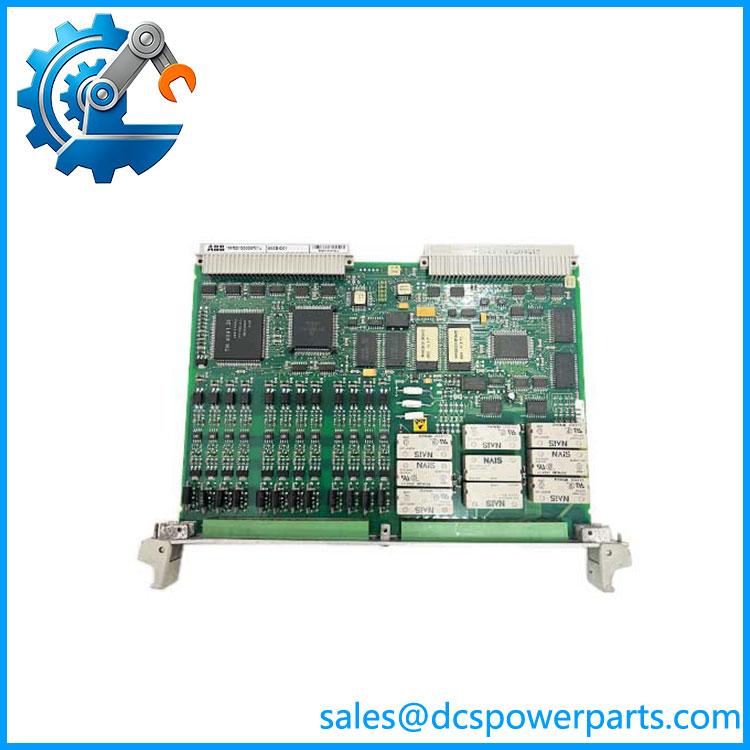

500BIO01 1MRB150005R0001 1MRB200060/E
Substation and Protection Applications
The 500BIO01 is particularly associated in available documentation with ABB PROCONTROL P13 and substation automation applications. The module provides the interface between external binary signals and the host control/protection electronics.
Hardware Identification
For this product, three identifiers are important:
- 500BIO01 — functional/model designation
- 1MRB150005R0001 — primary part number
- 1MRB200060/E — associated hardware/assembly reference
A replacement should ideally carry the same combination. Secondary sources describe 1MRB200060/E differently, so it should not be treated as an independently interchangeable module without checking the original ABB documentation.
Application Scenarios
The ABB 500BIO01 is relevant to:
- Substation automation
- Electrical protection systems
- Circuit-breaker status monitoring
- Disconnector position monitoring
- Alarm acquisition
- Interlocking systems
- Industrial control panels
- Legacy ABB PROCONTROL installations
- Power-system automation
- Discrete control applications
Engineer’s Guide: Field Pitfalls
⚠️ Do not trust generic electrical specifications.
Online listings disagree significantly on input voltage, channel count, and output ratings. The exact 1MRB150005R0001 / 1MRB200060/E hardware should be checked against the applicable ABB documentation.
⚠️ Confirm the host system.
A 500BIO01 from an ABB legacy system should not automatically be installed in another ABB rack simply because the connector appears compatible.
⚠️ Verify field termination.
Before replacement, record every binary input/output assignment and terminal number. A wiring mismatch can create incorrect breaker status or unintended control commands.
⚠️ Check relay outputs carefully.
Where the module drives external control circuits, confirm the actual output rating and circuit voltage before energizing the field wiring.
⚠️ Preserve configuration information.
Record channel assignments, signal inversion, alarm logic, interlocks, and output functions before removing the existing module.
Frequently Asked Questions
What is ABB 500BIO01?
It is an ABB binary input/output module used for discrete signal acquisition and control in legacy automation and protection systems.
What is the main part number?
The commonly associated part number is 1MRB150005R0001, with 1MRB200060/E appearing as an associated hardware/assembly reference.
Is 500BIO01 a PLC CPU?
No. It is an I/O interface module, not a standalone PLC processor.
Where is it commonly used?
Available references associate it with ABB PROCONTROL P13 and substation automation/protection applications.
What should be verified before purchasing?
- 500BIO01
- 1MRB150005R0001
- 1MRB200060/E
- Exact hardware revision
- Host ABB system
- Rack/backplane compatibility
- Binary input voltage
- Binary output rating
- Channel assignment
- Field termination arrangement
- Existing configuration
- Functional I/O test
Procurement note: For this legacy ABB module, I would request a clear photograph showing all three identifiers, especially 1MRB150005R0001 and 1MRB200060/E. Because public secondary documentation is inconsistent, the safest replacement decision is based on the physical hardware reference and the installed system documentation—not on a generic 500BIO01 description.
