Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 500AIM02 |
| Ordering Number | 1MRB150022R0002 |
| Additional ID | 1HDF930412X010 |
| Product Type | Analog Input Module |
| Product Family | ABB 500 Series |
| Signal Type | Analog field signals |
| Typical Process Signal | Current / voltage signals, configuration dependent |
| Application | Process measurement and control |
| System Function | Analog signal acquisition |
| Installation | ABB 500-series control architecture |
| Hardware Status | Legacy / discontinued |
| Channel Configuration | Verify against original system documentation |
| Input Wiring | Verify against installed hardware and drawings |
Technical caution: Several secondary sources publish conflicting specifications for this part, including claims of 16 channels, 4–20 mA / 0–10 V / ±10 V inputs, 16-bit resolution, and 1500 V isolation. Those values are not sufficiently corroborated by authoritative ABB documentation, so they should not be treated as confirmed specifications for the exact R0002 version.
Product Introduction
The ABB 500AIM02 1MRB150022R0002 is a legacy analog input module associated with ABB’s 500-series control hardware. Its function is to acquire analog information from field instrumentation and make that information available to the control system for monitoring, logic, regulation, and process-control functions.

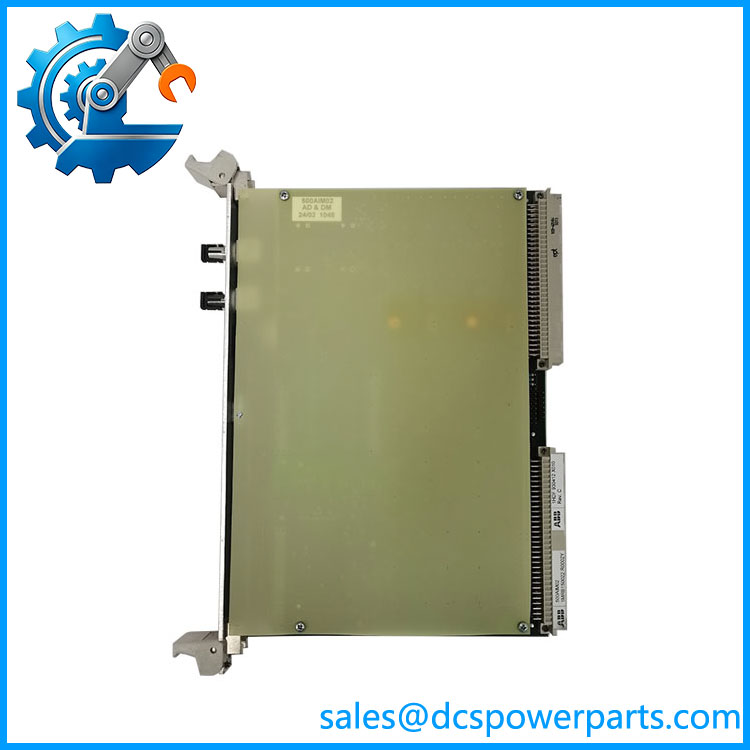

500AIM02 1MRB150022 R0002 1HDF 930412 X010
The ABB 500AIM02 is used where continuously varying process measurements need to be brought into the control architecture. Depending on the original system configuration, these signals may represent process variables such as pressure, temperature, flow, level, speed, or other transmitter outputs. The module therefore sits between field instrumentation and the higher-level control processor.
The ABB 1MRB150022R0002 500AIM02 should be regarded as a system-specific legacy I/O component rather than a generic modern analog-input card. ABB’s indexed material lists the exact 500AIM02 identification alongside other 500-series modules, including 500PSM02, 500PSM03, 500BIM01, 500BIO01, and 500MTM02.
The additional marking 1HDF930412X010 is useful when identifying the physical board. It should be recorded together with 500AIM02 and 1MRB150022R0002 when sourcing a replacement.
Main Features & Field Considerations
Analog signal acquisition
The primary role of the 500AIM02 is processing analog process signals for the control system. This makes it different from the 500BIM01, which is associated with binary/discrete signal acquisition.
Legacy-system integration
Because the module belongs to an older ABB hardware family, compatibility depends on the complete system architecture, rack arrangement, signal wiring, and controller configuration.
Signal-type verification
Do not assume that every 500AIM02 installation uses the same analog range. Before replacement, verify the original engineering drawings and field transmitter specifications.
Replacement checks
Before installing an ABB 500AIM02 1MRB150022R0002, verify:
- Full ordering number
- 1MRB150022R0002 marking
- 1HDF930412X010 board marking
- Number of active channels
- Current/voltage input type
- Field transmitter wiring
- Common/reference connections
- Rack/backplane compatibility
- Controller configuration
- Hardware revision
Troubleshooting
If an analog value is incorrect, check the complete measurement chain before condemning the module:
- Field transmitter output
- Instrument power supply
- Field wiring
- Terminal connections
- Input channel configuration
- Module status
- Controller scaling and engineering units
A faulty reading can originate from the transmitter or wiring even when the 500AIM02 itself is operating normally.
Typical Applications
The ABB 500AIM02 can be encountered in legacy ABB control installations involving:
- Process instrumentation
- Industrial plant control
- Power-system control
- Petrochemical process monitoring
- Analog feedback loops
- Temperature, pressure, flow, and level measurement
The exact application should be established from the original system documentation rather than inferred solely from the module number.
Procurement Note
For ABB 500AIM02 1MRB150022R0002 1HDF930412X010, use the complete identification string when sourcing a replacement. Current ABB-related indexes confirm the part-number association, while secondary commercial sources disagree on several electrical specifications.
I would therefore not state a definitive channel count, input range, accuracy, isolation voltage, or supply voltage without the original ABB datasheet/manual or the installed module’s nameplate. For a legacy control-system replacement, matching the exact hardware revision and field wiring is more important than relying on generic specifications copied from reseller listings.
