Description
ABB 3BHB003154R0101 5SXE 05-0156
Product Introduction
The ABB 3BHB003154R0101 5SXE 05-0156 is an ABB high-power semiconductor component associated with the 5SHX2645L0004 IGCT family. The available ABB-related product records identify 5SHX2645L0004 / 3BHL000389P0104 as an IGCT RC device, placing the component in the power-conversion section of an industrial drive or converter rather than in the PLC, DCS I/O, or communications portion of the automation system.
The ABB 3BHB003154R0101 5SXE 05-0156 is therefore best treated as power-stage hardware. An IGCT is a high-power switching semiconductor used to control electrical energy in converter applications. Its actual performance depends on the complete power-stack design, including the gate-control arrangement, mechanical clamping, snubber or RC network where applicable, cooling system, current path, and protection circuitry. Current records associate the part with ABB medium-voltage converter equipment, but the exact host-drive compatibility should be established from the original equipment documentation rather than inferred from the part number alone.
For procurement, the ABB 3BHB003154R0101 5SXE 05-0156 identification should be retained together with any markings for 5SHX2645L0004 and 3BHL000389P0104 found on the installed assembly. This is particularly important because several related ABB 5SHX and 5SXE components have similar physical and electrical roles but are not automatically interchangeable. A semiconductor with a similar voltage or current class is not sufficient evidence of compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3BHB003154R0101 |
| Manufacturer | ABB |
| Associated Reference | 5SXE 05-0156 |
| Associated ABB Type | 5SHX2645L0004 |
| Associated Product ID | 3BHL000389P0104 |
| Product Type | IGCT power semiconductor module / assembly |
| Semiconductor Technology | Integrated Gate-Commutated Thyristor (IGCT) |
| Catalog Description | IGCT RC |
| Application | High-power / medium-voltage power conversion |
| Typical System | ABB medium-voltage converter / drive power stage |
| Communication Protocol | None; not a communications module |
| Interface | Gate-control interface; exact interface depends on the associated power-stack design |
| Cooling | Equipment-specific |
| Mounting | Equipment-specific power-stack installation |
| Protection Rating | Not reliably established for the complete assembly |
| Operating Temperature | Verify from the applicable ABB semiconductor/system documentation |
| Voltage / Current Rating | Verify against the exact 5SHX2645L0004 device documentation |
| Weight | Approximately 2.5–2.6 kg reported by current component records |
ABB-related records identify the 5SHX2645L0004 as an IGCT RC product and associate it with 3BHB003154R0101. Some secondary sources publish conflicting voltage/current figures, so those figures should not be treated as definitive specifications for this exact order number without the applicable ABB datasheet.

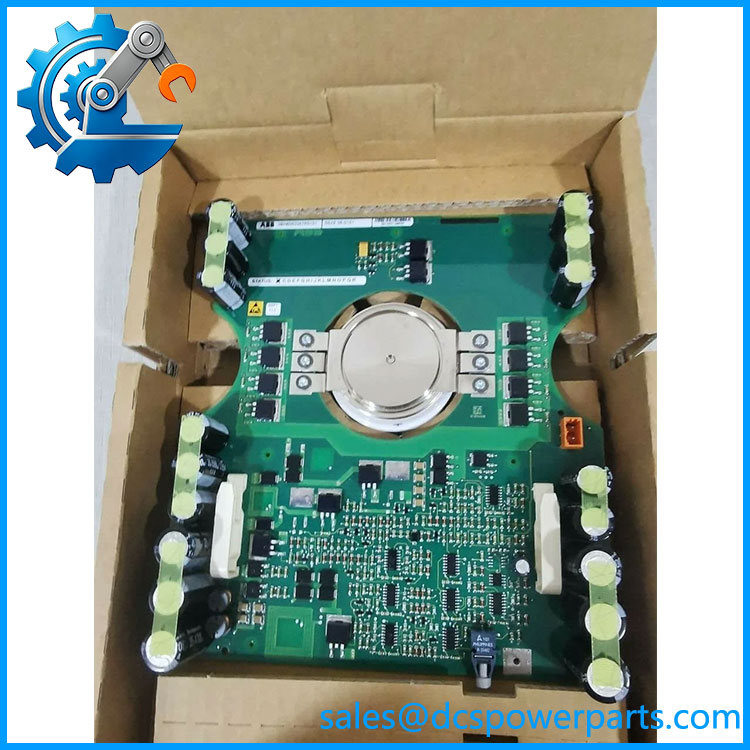

3BHB003154R0101–5SXE-05-0156
Main Features and Engineering Considerations
High-Power Semiconductor Switching
The primary function is power switching within a converter architecture. Unlike an ABB AC800M controller, S800 I/O module, or drive communication card, this component operates directly in the high-energy power stage. Its failure can therefore have consequences beyond a simple control-module fault.
IGCT-Based Power Conversion
IGCT technology is intended for high-power switching applications. The semiconductor must operate together with its associated gate-control and protection circuitry. A replacement should never be evaluated solely by checking whether the physical device can be mounted in the available space.
RC / Snubber Configuration
The ABB catalog identification for the associated 5SHX2645L0004 is IGCT RC. The RC arrangement and surrounding power-stack components need to be checked when replacing an installed unit. A different semiconductor configuration can change switching behavior, protection requirements, and stress on the converter.
Thermal Management
High-power semiconductor reliability is heavily dependent on thermal conditions. Before commissioning a replacement, inspect the heatsink or cooling interface, clamping pressure where applicable, cooling medium or airflow, thermal interface condition, and temperature-monitoring circuitry.
Gate-Control Compatibility
The gate interface is part of the system-level compatibility check. Verify the original gate unit, firing/control connection, feedback arrangement, and protection circuitry. Do not assume that a similar-looking 5SHX device can use the same gate-control hardware.
Medium-Voltage Drive Maintenance
Current records associate the component with ABB medium-voltage converter applications, including equipment in the ACS6000/PCS6000 class. The exact host equipment should still be confirmed from the drive nameplate, electrical drawings, or spare-parts list before installation.
Application Scenarios
- ABB medium-voltage drive power stages
- High-power industrial converter systems
- Medium-voltage motor-drive power conversion
- Converter power-stack maintenance
- IGCT semiconductor replacement
- Industrial power-conversion equipment refurbishment
- Maintenance inventory for legacy ABB converter systems
Engineer’s Guide: Field Pitfalls
Do not classify this as a PLC or DCS module. It is power-stage semiconductor hardware.
Match the complete identification. Record 3BHB003154R0101, 5SXE 05-0156, and any 5SHX/3BHL number appearing on the physical assembly.
Do not substitute by voltage/current rating alone. Gate characteristics, mechanical construction, cooling, snubber arrangement, and converter topology also determine compatibility.
Inspect the gate-control system. If the original IGCT failed, investigate the gate unit and associated control/protection circuits before installing another semiconductor.
Inspect the cooling system. A new semiconductor can fail quickly if the original failure was caused by inadequate cooling, poor thermal contact, or abnormal temperature.
Check the complete power stack. Inspect adjacent semiconductor devices, busbars, snubber components, fuses, current sensors, gate wiring, and protection circuits rather than treating the failed device as an isolated component.
Verify the exact host converter. Current listings associate the component with ABB high-power and medium-voltage equipment, but that does not establish universal compatibility across ABB converter families.
Frequently Asked Questions
What is ABB 3BHB003154R0101?
It is an ABB high-power IGCT-related power semiconductor component. Current records associate it with 5SHX2645L0004 / 3BHL000389P0104 and the 5SXE 05-0156 reference.
What does 5SXE 05-0156 refer to?
It is an associated ABB reference appearing with 3BHB003154R0101 in current industrial component records. Because secondary sources use the designation inconsistently, the complete physical marking and associated 5SHX/3BHL number should be checked before procurement.
Is 3BHB003154R0101 an IGCT?
Yes. Current records consistently place the part in ABB’s IGCT product family, with 5SHX2645L0004 identified as the associated IGCT type.
Is it a communication or I/O module?
No. It is power-conversion hardware. It does not provide a conventional Ethernet, PROFIBUS, Modbus, or PLC I/O function.
What equipment uses this component?
Current records associate the component with ABB high-power and medium-voltage converter equipment. Some current listings specifically reference ACS6000 and PCS6000 applications. The actual equipment model should be confirmed before substitution.
Can another ABB 5SHX device replace it?
Not automatically. The semiconductor rating, gate characteristics, mechanical arrangement, cooling, snubber configuration, and converter design all need to match.
Procurement Note
For purchasing or maintenance stock, specify the complete identification as ABB 3BHB003154R0101 / 5SXE 05-0156, and record any additional markings such as 5SHX2645L0004 or 3BHL000389P0104. Request photographs of the actual semiconductor/module markings and mounting arrangement before acceptance.
For a used or refurbished unit, electrical identity alone is not enough. The acceptance process should cover physical condition, gate interface condition, mounting surfaces, evidence of overheating, insulation condition where applicable, and test documentation appropriate to the converter power stage.
