Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | DC732F |
| Order Number | 3BDH000375R0001 |
| Product Type | Digital Input / Output Module |
| System Platform | ABB Freelance DCS / S700 I/O |
| Channel Count | 32 channels |
| Digital Inputs | 16 channels, 24 VDC |
| Configurable DI/DO Channels | 16 channels, 24 VDC |
| Input Voltage Range | Signal 0: -30 to +5 VDC; Signal 1: +13 to +30 VDC |
| Output Voltage | 24 VDC system supply dependent |
| Output Current | 0.5 A per channel |
| Process Supply Voltage | 24 VDC |
| Output Protection | Short-circuit and overload protection |
| Communication Use | Direct I/O on AC 700F / AC 900F, PROFIBUS remote I/O |
| Terminal Unit Compatibility | TU715F |
| Isolation | Electrical isolation per module |
| Diagnostics | Front LEDs for channel status, errors, supply voltage |
| Maximum Cable Length | 1000 m shielded / 600 m unshielded |
| Power Dissipation | 6 W |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 67.5 × 76 × 54 mm |
| Weight | Approx. 125 g |
Product Introduction
ABB DC732F 3BDH000375R0001 Overview
The ABB DC732F 3BDH000375R0001 is a digital input/output module designed for the ABB Freelance DCS S700 I/O family. It provides a compact interface for connecting discrete field signals to automation controllers, allowing process equipment and machine devices to exchange status and control information with the control application.
The ABB DC732F 3BDH000375R0001 combines fixed digital input channels with configurable input/output channels. Sixteen channels are dedicated 24 VDC digital inputs, while the remaining sixteen channels can be configured according to application requirements as either inputs or outputs. This arrangement allows engineers to handle equipment feedback signals and actuator commands within one module.
The ABB DC732F is used with ABB AC 700F and AC 900F Freelance controllers as direct I/O, and it can also operate as PROFIBUS remote I/O when installed in distributed architectures. It is commonly applied in process plants, utility systems, machine automation, and packaged equipment where a high-density digital interface is required.
The module connects field wiring through compatible S700 terminal units such as the TU715F. During replacement, engineers should verify terminal assignment, I/O configuration, output loading, and controller hardware configuration. A hardware swap without restoring the correct I/O mapping can result in incorrect device operation.

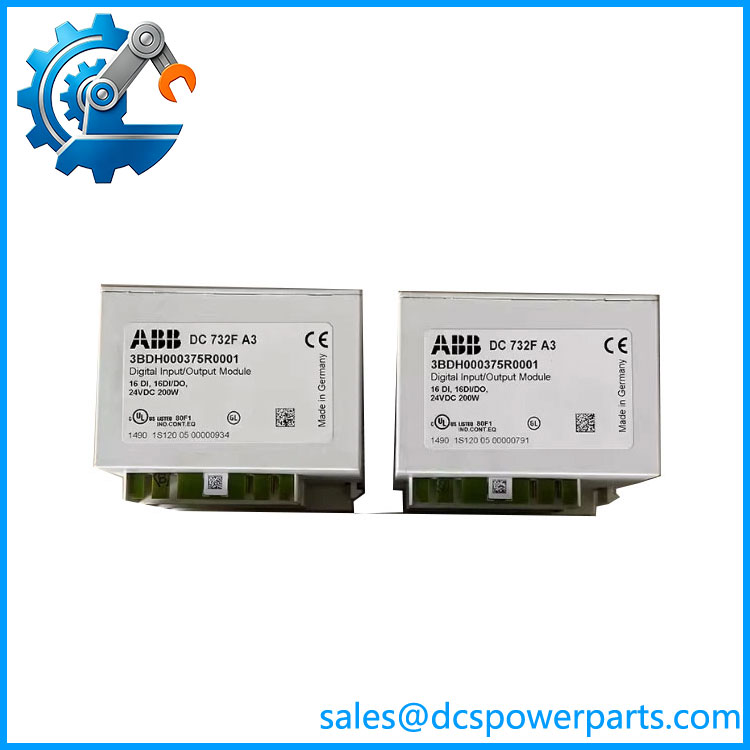

DC732F 3BDH000375R0001
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A plant reports missing device feedback, unexpected actuator behavior, or intermittent digital alarms. The DC732F may be suspected, but digital I/O faults often originate from field wiring, power distribution, or configuration issues.
Recommended troubleshooting sequence:
- Check module diagnostic LEDs
- Verify 24 VDC field supply
- Measure input signal levels
- Confirm output load current
- Inspect terminal connections
- Verify Freelance hardware configuration
The ABB 3BDH000375R0001 is only one part of the complete signal path. A healthy module can still report incorrect states if field devices or wiring are faulty.
Typical Applications
Process Control Systems
Used for:
- Motor start/stop feedback
- Valve open/close commands
- Equipment interlocks
- Alarm status monitoring
Water and Utility Automation
Applied in:
- Pump stations
- Treatment systems
- Remote equipment panels
Manufacturing Equipment
Used for:
- Sensor inputs
- Machine sequence control
- Actuator switching
Energy Applications
Applied in:
- Auxiliary equipment monitoring
- Switchgear status signals
- Local control stations
Technical Pitfalls to Avoid
1. Verify Output Load Requirements
Before connecting outputs, confirm:
- Device current demand
- Inductive load characteristics
- Protection requirements
The output channels support 24 VDC loads up to the specified current rating. Excessive loading can trigger protection functions.
2. Check Terminal Unit Compatibility
Verify:
- TU715F terminal unit installation
- Field wiring assignment
- UP/ZP process voltage connections
The relies on the correct terminal unit connection for field power distribution.
3. Confirm I/O Configuration
Before replacement, record:
- Channel assignments
- Input/output configuration
- Controller database mapping
- Field device tags
The module hardware does not automatically restore the original Freelance engineering configuration.
4. Inspect 24VDC Field Supply
Common causes of digital I/O problems:
- Voltage drops
- Blown field fuses
- Loose terminal connections
- Incorrect common reference wiring
