Description
Product Overview
Protection logic is only as reliable as the electrical measurements feeding it. The ABB 216EA62 1MRB150083R1/F 1MRB178066R1/F is the analog input unit used in the ABB REG216 numerical generator protection platform. Its primary task is to acquire analog measurement signals and make those values available to the protection system for real-time processing. ABB documentation identifies the 216EA62 as an Analog Input Unit with 24 inputs sampled simultaneously in groups of six. The documented sampling rate is 600 Hz for 50 Hz systems and 720 Hz for 60 Hz systems.
In a generator or transformer protection installation, ABB 216EA62 sits on the measurement side of the protection architecture rather than performing the final trip output function itself. Current and voltage measurement information is acquired here before being processed by the REG216 protection functions. That makes the module relevant to applications such as generator differential protection, transformer protection, overcurrent protection, voltage protection, and disturbance/event analysis, depending on the configured REG216 scheme. The REG216 hardware uses plug-in electronic units installed in a 19-inch, 6U equipment rack, with the parallel bus B448C handling data exchange between installed units.
A critical procurement point: public references disagree on several secondary specifications, including resolution, temperature range, isolation ratings, and exact signal ranges. The ABB manual confirms the 24-input architecture and 600/720 Hz sampling, but I would not use conflicting reseller figures as engineering acceptance criteria. For a replacement, match the complete 216EA62 / 1MRB150083R1/F / 1MRB178066R1/F identification and the installed REG216 configuration.
Product Introduction
When a REG216 system develops abnormal measurement values, the fault is not necessarily in the CT/PT wiring. The ABB 216EA62 is the dedicated analog acquisition unit that samples 24 inputs in six-channel groups, making it a critical measurement-stage component in the protection chain.
For a protection system upgrade or legacy replacement, exact hardware identification matters. The module occupies two rack divisions, so physical compatibility is straightforward; the electrical configuration and installed protection scheme still need to be verified before substitution.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 216EA62 |
| Type Designations | 1MRB150083R1/F; 1MRB178066R1/F |
| Product Type | Analog Input Unit / A/D Converter |
| Protection Platform | ABB |
| Primary Application | Generator and transformer numerical protection |
| Number of Analog Inputs | 24 |
| Sampling Arrangement | 24 inputs, sampled simultaneously in groups of 6 |
| Sampling Frequency | 600 Hz at 50 Hz system frequency |
| Sampling Frequency | 720 Hz at 60 Hz system frequency |
| Rack Requirement | 2 rack divisions |
| Rack Architecture | 19-inch, 6U equipment rack |
| System Bus | Parallel bus B448C |
| Input Role | Electrical measurement acquisition for protection processing |
| Typical Signals | Voltage/current measurement; exact input configuration is system-dependent |
| Resolution | Source documentation varies; verify against the installed hardware documentation |
| Power Supply | Verify from rack/system configuration |
| Operating Temperature | Verify from the applicable ABB hardware documentation |
| Condition | New Surplus, subject to inspection and functional testing |
The 24-input architecture, six-channel sampling groups, sampling frequencies, rack arrangement, and B448C parallel-bus architecture are supported by ABB’s documentation.

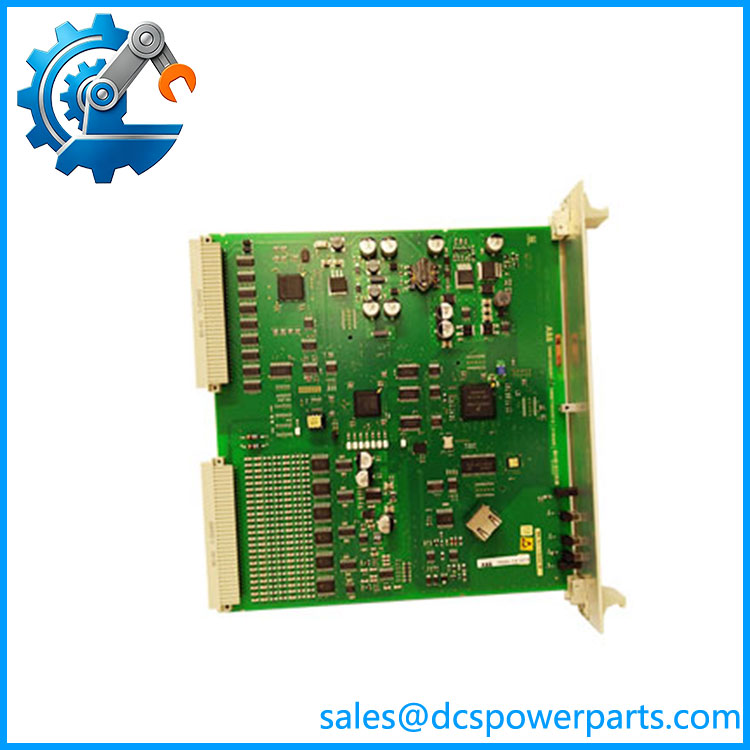

216EA62 1MRB150083R1/F 1MRB178066R1/F
Related Products
- ABB 216EA61B — An earlier/related analog input unit within the hardware family. It belongs to the same measurement architecture but should not be substituted for 216EA62 without checking the protection-system configuration.
- ABB 216DB61 — Output unit used in protection systems. It handles output/trip-related functions rather than the analog measurement acquisition performed by 216EA62.
- ABB 216GE61 — Input auxiliary relay assembly used with systems, particularly in conjunction with output and trip-circuit supervision arrangements.
- ABB 216NG63A — Related system module used in the same protection platform. Its function differs from the analog acquisition role of 216EA62.
- ABB 216VC62A — -related processing/control hardware. It operates at a different level of the protection architecture and is not a direct replacement for the analog input unit.
- ABB 216GA61 — Related hardware reference supporting the broader protection-system architecture; verify the exact suffix before procurement.
- ABB 216GD61A — Another family module, intended for a different system function from 216EA62.
- ABB 216MB66 — Related ABB hardware used elsewhere in the protection system; it should be considered complementary rather than interchangeable with the analog input unit.
Frequently Asked Questions
What is ABB 216EA62 1MRB150083R1/F used for?
The 216EA62 is the analog input unit for ABB numerical generator protection systems. It acquires 24 analog inputs, with the inputs sampled in groups of six, and feeds measurement information into the protection system.
Its job is measurement acquisition—not final trip contact switching.
How many analog signals can the 216EA62 process?
The documented configuration provides 24 analog inputs.
ABB specifies simultaneous sampling in groups of six. At 50 Hz system frequency, the sampling frequency is 600 Hz; at 60 Hz, it is 720 Hz.
That sampling architecture is important for protection applications because the module supplies time-relevant measurement data to the downstream protection functions.
Can I hot-swap the ABB 216EA62?
Do not assume hot-swapping is permitted.
Although the 216EA62 uses a plug-in rack architecture, that does not by itself establish a live-insertion procedure. The equipment should be handled according to its maintenance documentation and plant protection procedures.
For a generator protection system, I would treat the module as power-off replacement hardware unless the applicable ABB documentation explicitly permits energized removal.
Is 1MRB150083R1/F the same as 1MRB178066R1/F?
They are both associated with the 216EA62 designation, but the suffixes should not be ignored.
Before ordering, compare the complete identification on the installed module, including:
- 216EA62 designation
- 1MRB150083R1/F or 1MRB178066R1/F
- Hardware revision
- system version
- Existing rack position
- Protection configuration
A matching 216EA62 label is useful, but complete hardware identification is the safer procurement standard.
Will replacing 216EA62 erase my protection settings?
The 216EA62 is an analog input acquisition unit, not the primary protection-logic storage device. Its documented role is to acquire the 24 analog inputs and pass measurement data into the system.
Still, before replacement:
- Record the existing configuration.
- Back up available settings and event records.
- Document CT/PT input assignments.
- Record the module position and hardware identification.
- Verify measurements after commissioning.
The main risk is usually incorrect measurement configuration, not loss of application logic.
Does the 216EA62 support 4–20 mA and 0–10 V signals?
Be careful with generic specifications published for this part. Some secondary listings claim 4–20 mA and 0–10 V inputs, while ABB’s documentation available here establishes the unit as a 24-input analog acquisition module without confirming those generic process-instrument ranges.
For a generator protection application, the actual input arrangement should be determined from the configuration and applicable connection documentation, particularly where CT/PT measurement circuits are involved.
How should I verify a New Surplus ABB 216EA62?
For a protection-system spare, I would request more than a box and a part-number photograph.
Incoming inspection should include:
- Exact 216EA62 model marking
- Complete type designation
- 1MRB150083R1/F or 1MRB178066R1/F identification
- PCB and connector condition
- Rack connector inspection
- Serial/manufacturing identification where applicable
- Functional test documentation
- Confirmation of the actual condition: new surplus, unused, refurbished, or previously installed
To be completely transparent, several online listings publish contradictory specifications for this module. The ABB documentation is the better reference for the core architecture, particularly the 24-channel configuration and 600/720 Hz sampling figures.
