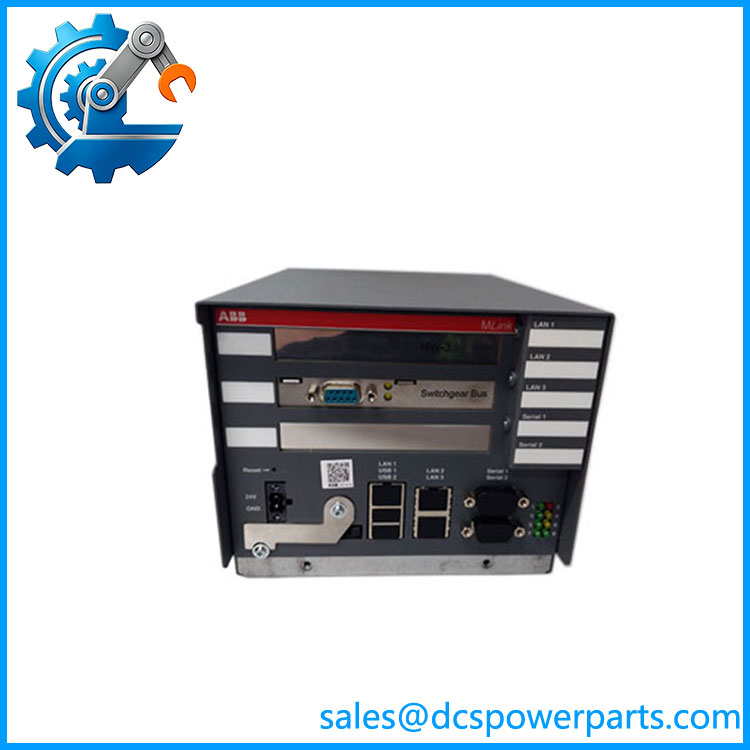

ABB 1TGE120011R2200 | Intelligent Motor Management Module, Industrial Spare Part

ABB 1TGE120011R2200 | Intelligent Motor Management Module, Industrial Spare Part

  • Model: 1TGE120011R2200
  • Brand: ABB
  • Series: MNS-iS Intelligent Motor Control Center (MControl MC101)
  • Core Function: Intelligent motor feeder control unit providing motor control, monitoring, and protection functions inside ABB MNS-iS MCC systems.
  • Product Type: Motor Feeder Control Module / MCC Intelligent Controller
  • Key Specs:
    • PROFIBUS-DP communication up to 12 Mbps
    • 230 VAC control supply
    • 4 digital inputs, 2 relay outputs, PTC motor temperature monitoring
Add To Quote
Category: SKU: ABB 1TGE120011R2200

Description

Key Technical Specifications

Parameter Value
Product Model ABB 1TGE120011R2200
Product Type MNS-iS Intelligent Motor Feeder Control Unit
ABB Product Designation MControl MC101
Application Motor control center (MCC) feeder drawer control
Compatible System ABB MNS-iS MCC system
Communication Protocol PROFIBUS-DP, up to 12 Mbps
Internal Bus MNS-iS Pbus backplane communication
Control Supply Voltage 230 VAC
Digital Inputs 4 DI
Relay Outputs 2 DO
Motor Temperature Input PTC thermistor monitoring
Protection Functions Overload, stalled rotor, phase loss, phase unbalance, ground fault, PTC overheating
Installation 53 mm MNS-iS drawer module mounting
Dimensions Approx. 53 × 125 × 260 mm
Operating Temperature -20°C to +60°C
Weight Approx. 0.7 kg



Product Introduction



ABB 1TGE120011R2200 Product Introduction

ABB 1TGE120011R2200 is an intelligent motor feeder control unit designed for ABB MNS-iS motor control center systems. As an MControl MC101 module, it manages motor start/stop functions, collects field signals, communicates through PROFIBUS-DP, and provides motor protection functions within MCC feeder drawers.

The main value of ABB 1TGE120011R2200 is its integration of motor control, protection, and communication in a compact MCC module. For plants maintaining existing MNS-iS installations, this type of controller can reduce modification work compared with replacing the complete feeder assembly. Verify the exact MNS-iS configuration and firmware compatibility before installation.

1TGE120011R2200

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)



Engineering Pain Point

A failed MCC feeder controller can stop a critical motor even when the motor, contactor, and power section are still healthy. Water plants, process facilities, and manufacturing sites often keep ABB MNS-iS systems in operation for many years, making the availability of the correct feeder control module a key maintenance concern. Replacing an MCC controller is not only a hardware swap. Communication settings, I/O mapping, and protection parameters must match the existing system.



Typical Applications

  • Water Treatment Plants – Pump motor control, overload protection, and remote status monitoring through MCC systems.
  • Chemical Processing Facilities – Control of process pumps, agitators, fans, and auxiliary motors.
  • Manufacturing Plants – Motor feeder management for conveyors, production equipment, and material handling systems.
  • Power and Energy Facilities – MCC-based motor control applications requiring distributed motor monitoring and protection.



Technical Pitfalls to Avoid

  1. Check PROFIBUS Addressing and Network Configuration
    The replacement unit must match the existing PROFIBUS-DP configuration. Incorrect node addressing can prevent communication with the MCC control system.
  2. Verify MNS-iS Drawer Compatibility
    ABB MNS-iS modules are designed for specific drawer arrangements. Confirm the feeder type, hardware revision, and installed accessories before replacement.
  3. Do Not Ignore Protection Settings
    Motor overload, phase monitoring, and PTC protection parameters should be reviewed after replacement. Default settings may not match the original motor application.



Related Products

  • ABB MControl MC101
    The functional product designation associated with 1TGE120011R2200. Used for intelligent motor feeder control inside ABB MNS-iS MCC systems.
  • ABB 1TGE120011R2201
    Related MNS-iS feeder controller variant. Differences depend on configuration options and installed application requirements.
  • ABB MNS-iS MCC Drawer Modules
    Supporting hardware assemblies used together with intelligent feeder controllers for motor starter applications.
  • ABB UMC100.3 Universal Motor Controller
    A newer generation motor management controller used for motor protection, control, and communication in modern ABB automation architectures.
  • ABB PROFIBUS-DP Communication Modules
    Supporting communication components used when integrating motor control devices into plant automation networks.
  • ABB MNS Digital Motor Control Components
    Related MCC control hardware used for distributed motor management and plant electrical automation.
  • ABB AC800M Controllers
    PLC platform commonly used for higher-level control integration with ABB motor management systems.
  • ABB REF542plus Protection Unit
    A protection and control device used in ABB electrical systems, with different applications focused on switchgear protection rather than MCC motor feeder control.
