Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | A6110 |
| Part Number | 9199-00001 |
| Manufacturer | Emerson |
| Product Series | CSI 6500 Machinery Health Monitor |
| Product Type | Shaft Relative Vibration Monitor |
| Monitoring Channels | 2 channels |
| Measurement Type | Shaft relative vibration |
| Sensor Type | Eddy-current proximity displacement probes |
| Module Size | 3U plug-in module |
| Rack Occupancy | 1 slot |
| Power Supply | 24 VDC system supply |
| Maximum Power Consumption | Approximately 6 W |
| Protection Standard | API 670 machinery protection architecture |
| Alarm Functions | Configurable vibration alarm and trip thresholds |
| Typical Equipment | Steam turbines, gas turbines, compressors, hydro turbines |
Application Scenarios & Pain Points
Critical rotating equipment rarely fails without warning. The challenge is catching the warning early enough. A faulty vibration channel, incorrect probe setup, or aging monitor card can create either false alarms or a dangerous blind spot.
Typical applications:
- Power Generation: Used on steam and gas turbines to monitor shaft movement relative to bearing housings during startup, loading, and normal operation.
- Oil & Gas Facilities: Applied on compressors and large rotating machines where vibration protection is required for continuous operation.
- Petrochemical Plants: Supports API 670 protection systems by monitoring shaft vibration trends and trip conditions.
- Hydropower Equipment: Used for turbine-generator protection where rotor movement must remain within defined limits.
Field note: A turbine unit showed inconsistent vibration readings during operation. Sensor wiring and probe condition checked normal, but the monitor channel response remained unstable. Replacing the A6110 module and restoring the original configuration removed the false vibration alarms.

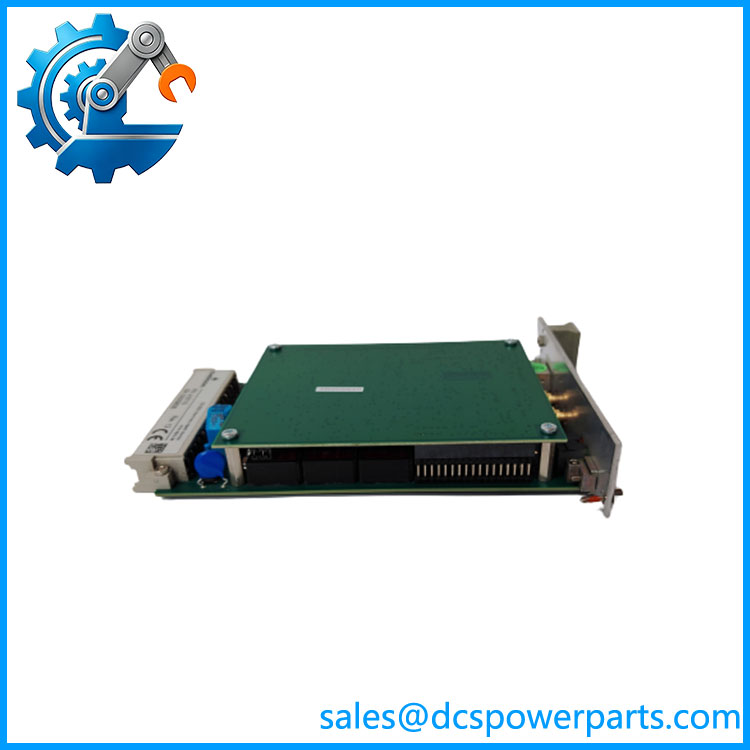

A6110 9199-00001
Related Products
- Emerson A6120 9199-00002 — Case seismic vibration monitor. Used when casing vibration measurement is required instead of shaft displacement monitoring.
- Emerson A6125 9199-00069 — Case piezo vibration monitor for accelerometer-based vibration measurement applications.
- Emerson A6140 9199-00058 — Shaft absolute vibration monitor. Used when absolute shaft vibration measurement is required.
- Emerson A6210 9199-00003 — Thrust position, differential expansion, and rod drop monitor. Designed for axial position protection applications.
- Emerson A6220 9199-00009 — Shaft eccentricity monitor used for rotor bow and startup condition monitoring.
- Emerson A6312 9199-00025 — Speed and key-phase monitoring module for rotating speed measurement and timing reference.
- Emerson A6410 9199-00005 — Valve and case expansion monitor for turbine thermal movement measurement.
- Emerson A6824 9199-00090 — Modbus communication module used to transfer CSI 6500 monitoring data to external control systems.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Incorrect Proximity Probe Configuration
The A6110 depends on correct probe characteristics and gap settings. A replacement module cannot compensate for incorrect sensor installation.
How to avoid: Verify probe model, extension cable length, gap voltage, and calibration values before startup.
⚠️ Lost Alarm and Trip Settings
A replacement monitor may boot normally with default parameters that do not match the protected machine.
How to avoid: Export the existing configuration and document alarm thresholds before removing the original card.
⚠️ Confusing Shaft Vibration With Case Vibration Modules
A6110 and A6120 look similar physically but measure different mechanical behaviors.
How to avoid: Confirm whether the system uses eddy-current shaft probes or casing accelerometers before ordering.
Frequently Asked Questions (FAQ)
What is the main function of the Emerson A6110 9199-00001?
The A6110 is a dual-channel shaft relative vibration monitor used in CSI 6500 systems to measure shaft movement through proximity probes and provide machinery protection functions.
Is the a complete machinery monitoring system?
No. It is one module inside the CSI 6500 architecture. A complete system may include sensor input modules, processor modules, communication modules, and relay modules.
What type of sensors connect to the ?
The module is designed for shaft relative vibration measurement using non-contact eddy-current displacement probes installed near the rotating shaft.
Can the replace an A6120 vibration monitor?
No. The two modules measure different parameters:
- Shaft relative vibration
- A6120: Case seismic vibration
The correct replacement depends on the original protection design.
Why does a replacement show vibration alarms immediately?
Common causes include:
- Incorrect probe gap settings
- Wrong alarm thresholds
- Configuration mismatch
- Sensor wiring problems
- Firmware or module revision differences
What should be checked before purchasing an 9199-00001?
Recommended checks:
- Complete part number
- CSI 6500 rack configuration
- Probe type and wiring
- Existing firmware revision
- Alarm/trip settings
- Application configuration backup
Is a refurbished Emerson suitable for machinery protection service?
A tested refurbished unit can be suitable when it passes channel simulation tests, power checks, alarm verification, rack communication testing, and configuration compatibility review before installation.
