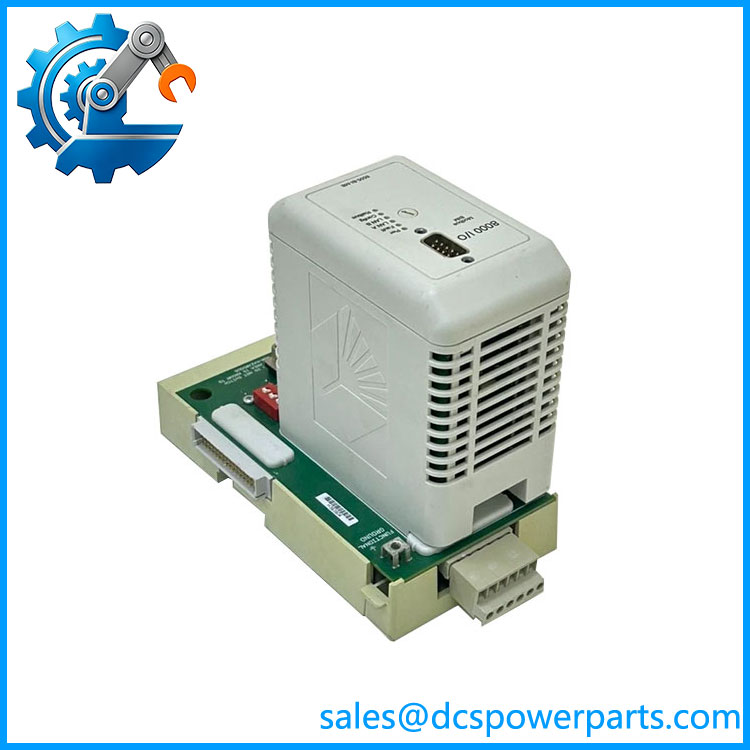

MTL 8505-BI-MB Modbus Bus Interface Module Product Description
Product Overview
MTL 8505-BI-MB is a Modbus Bus Interface Module (BIM) designed for the MTL8000 distributed I/O system, providing a communication bridge between MTL Railbus internal I/O networks and external Modbus RTU industrial communication networks. As a core communication component in distributed control systems (DCS), programmable logic controller (PLC) systems, and process automation architectures, MTL 8505-BI-MB enables field I/O modules to exchange process data with supervisory controllers, SCADA systems, and host automation platforms through a standardized Modbus interface.
The MTL 8505-BI-MB acts as the communication gateway between the internal CAN-based Railbus architecture of the MTL8000 system and external RS485/RS422 Modbus networks. It collects data from connected analog and digital I/O modules, converts internal bus information into Modbus register data, and provides reliable bidirectional communication with host controllers. Through this architecture, MTL 8505-BI-MB simplifies system integration by allowing multiple field I/O channels to be accessed through a single industrial communication link.
Designed for industrial automation and process control environments, MTL 8505-BI-MB provides high communication reliability, flexible configuration options, and compatibility with MTL8000 modular I/O stations. The module supports Modbus RTU communication rates up to 115.2 kbit/s in selected operating modes and can be installed on dedicated MTL carriers together with power supply modules and I/O modules. Its modular design makes MTL 8505-BI-MB suitable for new installations as well as maintenance and expansion projects involving existing MTL8000 automation systems.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 8505-BI-MB |
| Manufacturer | MTL (Eaton / Emerson Industrial Automation) |
| Product Type | Modbus Bus Interface Module (BIM) |
| Product Series | MTL8000 Distributed I/O System |
| Main Function | Railbus to Modbus RTU communication gateway |
| Internal Bus Protocol | CAN-based MTL Railbus communication |
| External Communication Protocol | Modbus RTU |
| Physical Interface | RS485 / RS422 |
| Transmission Rate | 1.2 to 115.2 kbit/s |
| Supported Modbus Functions | Function 01, 02, 03, 04, 05, 06, 08 |
| LAN Interface | Dual LAN communication capability |
| Bus Isolation Voltage | 500 V |
| Railbus Current Consumption | 260 mA typical / 300 mA maximum |
| Configuration Method | PC configuration software or node services module |
| Communication Response Time | Less than 4 ms |
| Mounting Method | MTL8000 BIM carrier installation |
| Module Width | 63 mm |
| Weight | Approx. 320 g |
| Operating Temperature | -40°C to +70°C (system dependent) |
Main Features and Advantages
Reliable Modbus communication gateway:
The main function of MTL 8505-BI-MB is to provide a stable communication interface between MTL8000 field I/O modules and external Modbus master devices. By converting Railbus data into Modbus register information, MTL 8505-BI-MB allows PLC systems, SCADA platforms, and industrial computers to easily access distributed field data.
Wide compatibility with automation systems:
Modbus RTU is one of the most widely used industrial communication protocols. The support provided by MTL 8505-BI-MB allows MTL8000 I/O stations to integrate with many third-party controllers, reducing system engineering complexity and improving flexibility during project implementation.
High-speed industrial communication:
MTL 8505-BI-MB supports configurable Modbus transmission speeds from low-speed communication modes up to 115.2 kbit/s depending on the network configuration. This provides efficient data exchange for applications requiring fast monitoring and control of distributed field signals.
Dual communication interface capability:
The design of MTL 8505-BI-MB supports flexible LAN communication arrangements, including redundant communication configurations depending on the installed carrier and system architecture. This improves network availability for critical industrial applications.
8505-BI-MB
Strong electrical isolation:
Industrial environments often contain electrical interference caused by motors, converters, and high-power equipment. MTL 8505-BI-MB provides electrical isolation between communication interfaces and internal system circuits, helping protect automation equipment from voltage disturbances and ground potential differences.
Modular MTL8000 integration:
Designed specifically for the MTL8000 platform, MTL 8505-BI-MB can be combined with compatible I/O modules, power supplies, and carriers to create scalable distributed control nodes. The modular approach simplifies installation and future system expansion.
Flexible configuration capability:
The configuration of MTL 8505-BI-MB can be completed through dedicated configuration software or through an MTL node services module. This allows engineers to define communication parameters, addressing, and system behavior according to application requirements.
Improved maintenance efficiency:
The modular structure of MTL 8505-BI-MB allows quick replacement without extensive rewiring. Maintenance engineers can restore communication functions efficiently, reducing downtime in critical process automation systems.
Long lifecycle support:
Many industrial facilities continue operating MTL8000-based systems for many years. MTL 8505-BI-MB provides a reliable spare and replacement solution, helping users maintain existing automation infrastructure while avoiding unnecessary system redesign.
Application Areas
Process Industry Automation:
MTL 8505-BI-MB is widely used in chemical, petrochemical, pharmaceutical, and manufacturing plants where distributed field signals must be transmitted reliably to central control systems. It provides a communication link between remote I/O stations and DCS or PLC controllers.
Oil and Gas Facilities:
Oil and gas production, refining, and pipeline systems require reliable communication between field instruments and control rooms. MTL 8505-BI-MB supports Modbus-based integration of remote I/O nodes used for monitoring valves, transmitters, alarms, and equipment status.
Power Generation Systems:
Power plants rely on distributed automation networks for monitoring turbines, auxiliary systems, and electrical equipment. MTL 8505-BI-MB provides a dependable communication interface for integrating field I/O data into supervisory control systems.
Water Treatment Applications:
Water and wastewater facilities use numerous sensors, pumps, and actuators distributed across large areas. MTL 8505-BI-MB enables centralized monitoring by connecting remote MTL8000 I/O stations with Modbus-compatible control systems.
Factory Automation:
Manufacturing facilities often require flexible communication between PLC systems and remote I/O modules. MTL 8505-BI-MB provides an efficient solution for collecting digital and analog field information from production equipment.
Industrial Retrofit Projects:
For existing MTL8000 installations, MTL 8505-BI-MB is an effective replacement and expansion component. It allows operators to upgrade communication capability while preserving existing field wiring and I/O structures.
Related Products
- MTL 8502-BI-DP – PROFIBUS-DP Bus Interface Module, alternative communication interface version of 8505-BI-MB.
- MTL 8715-CA-BI – BIM carrier supporting 8505-BI-MB and PROFIBUS communication modules.
- MTL 8718-CA-NS – Node services carrier supporting 8505-BI-MB with node management functions.
- MTL 8510-NS-MO – Node Services Module for configuration and management functions.
- MTL 8910-PS-DC – DC power supply module for MTL8000 systems.
- MTL 8103-AI-TX – 8-channel analog input module for transmitter signal acquisition.
- MTL 8104-AO-IP – 8-channel analog output module for field device control.
- MTL 8115-DO-DC – Digital output module for DC switching applications.
