Description
Product Overview

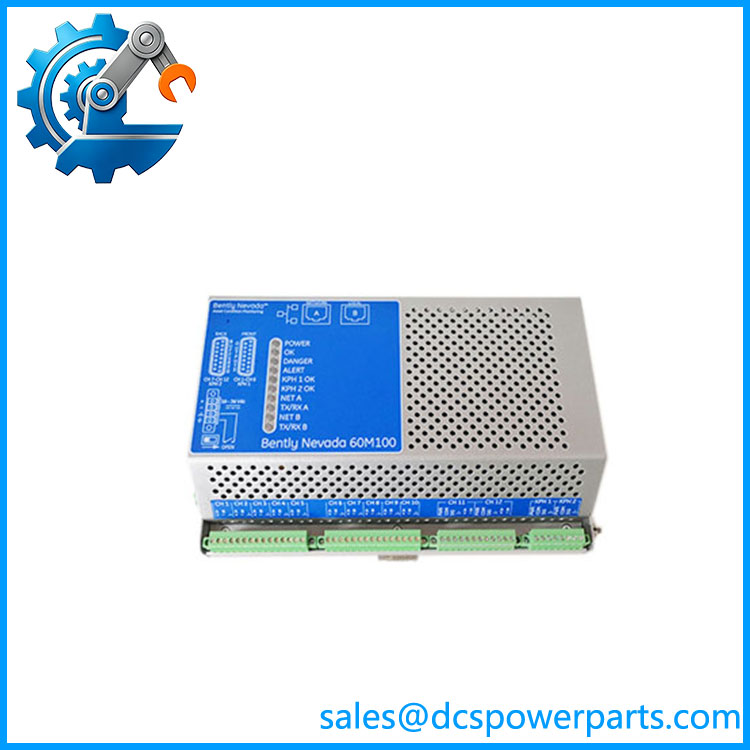

Bently Nevada 60M100-00 is an online machine condition monitoring module developed for wind turbine applications where continuous observation of critical rotating equipment is required. It combines signal acquisition, vibration analysis, speed measurement, alarming, and communication functions into a compact industrial monitoring platform. The system is designed to monitor major wind turbine drivetrain components including main bearings, gearboxes, generators, and structural vibration behavior.
The Bently Nevada 60M100-00 collects dynamic signals from connected sensors and performs onboard signal processing to calculate condition indicators, waveform data, and trend information. The module supports up to 12 dynamic input channels and two Keyphasor speed inputs, allowing engineers to analyze rotating equipment behavior without relying entirely on external processing hardware.
The 60M100-00 is commonly integrated into condition-based maintenance systems where early detection of mechanical problems is required. Typical monitored conditions include bearing degradation, gear mesh problems, rotor imbalance, shaft-related faults, and tower movement. The collected information can be transmitted through Ethernet communication interfaces using Modbus/TCP or proprietary protocols for integration with monitoring software and plant automation systems.
A typical installation structure is:
Machine Sensors → 60M100-00 Condition Monitor → Ethernet / Modbus TCP → SCADA / Plant Monitoring System
The module is designed for harsh industrial environments, including wind farms where equipment is exposed to vibration, temperature variation, and remote operating conditions.
For replacement applications, engineers should verify the complete model number, sensor configuration, communication settings, firmware compatibility, and existing monitoring database. A hardware replacement alone may not restore the original measurement configuration unless parameters and sensor mappings are correctly transferred.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 60M100-00 |
| Product Type | Wind Condition Monitoring System |
| Application | Wind turbine drivetrain monitoring |
| Power Input | 18–36 VDC |
| Maximum Current Consumption | Approx. 1.7 A |
| Dynamic Signal Inputs | Up to 12 channels |
| Keyphasor Inputs | 2 channels |
| Sensor Types | ICP accelerometers / proximity probes |
| A/D Converter | 24-bit Sigma-Delta |
| Frequency Bandwidth | Up to 40 kHz |
| Dynamic Range | Approx. 110 dB |
| Communication Interface | Dual Ethernet ports |
| Communication Protocol | Modbus/TCP, TCP/IP |
| Mounting Method | DIN rail mounting |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 0–95% RH, non-condensing |
| Dimensions | Approx. 150 × 225 × 55 mm |
| Weight | Approx. 1.4 kg |
Specifications are based on Bently Nevada 60M100 condition monitoring documentation.
Main Features and Advantages
60M100-00
Continuous Machine Health Monitoring
The main purpose of the Bently Nevada 60M100-00 is continuous observation of rotating machinery condition.
The system monitors:
- Main bearing condition
- Gearbox vibration behavior
- Generator bearing status
- Rotor-related vibration
- Tower movement
This allows maintenance teams to identify abnormal trends before mechanical damage develops.
Multi-Channel Dynamic Signal Acquisition
The module supports multiple vibration measurement points through its dynamic inputs.
Typical connected sensors:
- Accelerometers
- Proximity probes
- Speed reference sensors
The multi-channel design allows monitoring of several machine components from one monitoring unit.
Advanced Signal Processing
The 60M100-00 performs onboard processing of vibration signals.
Available measurements include:
- Waveform data
- Trend values
- Frequency-related analysis
- Statistical condition indicators
- Alarm comparisons
The module can monitor numerous static variables and generate historical trend information for maintenance analysis.
Industrial Communication Integration
The unit supports Ethernet-based communication for integration with automation and monitoring platforms.
Common communication uses:
- SCADA connection
- Remote monitoring
- Condition-based maintenance systems
- Data collection servers
Modbus/TCP support allows connection with many industrial control environments.
Designed for Wind Turbine Applications
Unlike general vibration monitors, the 60M100-00 is specifically designed around wind turbine machine train monitoring requirements.
Typical monitored equipment:
- Gearboxes
- Generator bearings
- Main shaft bearings
- Rotor systems
- Tower structures
Application Scenarios
Wind Turbine Monitoring
Used for:
- Gearbox vibration analysis
- Generator condition monitoring
- Main bearing surveillance
- Tower sway monitoring
Renewable Energy Systems
Common installations:
- Wind farms
- Remote turbine sites
- Distributed generation facilities
Rotating Machinery Diagnostics
Applicable for:
- Large rotating equipment
- High-value mechanical assets
- Critical production machinery
Related Components
| Model | Function |
|---|---|
| 133819-01 | Signal conditioning module for proximity sensor applications |
| 3300 XL Series Proximity Probes | Shaft vibration measurement sensors |
| 330180 Series Sensors | Proximity measurement devices |
| ADAPT.Wind Software | Configuration and analysis platform |
| Bently Nevada 3500 Series | Rack-based machinery protection platform |
Engineer’s Guide: Field Pitfalls
⚠️ Verify Sensor Compatibility
Before replacement, confirm:
- Sensor type
- Input channel assignment
- Sensor power requirements
- Signal scaling
- Alarm configuration
A monitoring module may appear healthy while receiving incorrect sensor signals.
⚠️ Check Ethernet Configuration
Communication issues are often related to:
- IP address settings
- Network configuration
- Modbus register mapping
- Switch configuration
- Cable faults
⚠️ Preserve Existing Monitoring Parameters
Before replacing a 60M100-00 unit, save:
- Sensor configuration
- Alarm thresholds
- Measurement definitions
- Communication parameters
- Historical setup information
⚠️ Inspect Field Sensors Before Replacing Hardware
Common causes of vibration monitoring faults:
- Damaged accelerometers
- Cable insulation failure
- Loose connectors
- Incorrect sensor mounting
- Mechanical resonance
⚠️ Refurbished Unit Testing Requirements
A proper evaluation should include:
- Power supply verification
- Ethernet communication test
- Sensor input simulation
- Channel acquisition verification
- Alarm function testing
- Configuration backup check
- Long-duration operation test
A module that boots successfully does not confirm measurement accuracy.
Frequently Asked Questions
What is Bently Nevada 60M100-00?
It is a wind turbine condition monitoring module designed for continuous monitoring of rotating machinery health.
How many vibration channels does the 60M100-00 support?
It supports up to 12 dynamic input channels and two Keyphasor inputs.
What communication protocol does it use?
The module supports Ethernet communication including Modbus/TCP.
What power supply does the unit require?
The operating voltage range is approximately 18–36 VDC.
Is the 60M100-00 a PLC module?
No. It is a dedicated machinery condition monitoring device.
