Description
GE 531X305NTBAJG1 NTB/3TB Terminal Board Product Description
Product Overview
GE 531X305NTBAJG1 is an NTB/3TB Terminal Board designed for GE 531X series industrial drive and exciter control systems. As a multifunctional interface board, GE 531X305NTBAJG1 provides terminal-level connections for digital inputs, relay outputs, analog I/O, encoder feedback, serial communication, and auxiliary power supplies. It is widely used in GE AC2000 and DC2000 adjustable speed drive platforms to provide reliable field device interfacing and signal distribution.
The GE 531X305NTBAJG1 belongs to the GE 531X replacement board family and functions as an NTB/3TB terminal assembly. Within the drive control architecture, 531X305NTBAJG1 serves as the connection point between external field devices and the main drive control electronics. It enables connection of relays, encoders, analog signals, serial communication channels, and external control wiring, simplifying system integration and maintenance.
Designed for industrial motor control applications, GE 531X305NTBAJG1 combines flexible I/O capability with rugged industrial construction. The board supports configurable encoder voltage selection, relay interfaces, analog signal scaling, and multiple power supply outputs, making it suitable for various GE drive and excitation configurations.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | 531X305NTBAJG1 |
| Manufacturer | General Electric (GE) |
| Product Type | NTB/3TB Terminal Board Assembly |
| Product Series | GE 531X Series |
| Application | AC2000 / DC2000 Drives and Excitation Systems |
| Board Function | Drive control terminal interface |
| Interface Type | Field signal connection and distribution |
| Digital Interface | Digital control input/output connections |
| Relay Outputs | 7 relay outputs (Form A/Form C configurable) |
| Relay Rating | Up to 120 VAC applications |
| Analog Interface | Low-level analog I/O scaling |
| Encoder Interface | 5 VDC / 15 VDC selectable encoder interface |
| Serial Communication | RS-232C / RS-422 interface support |
| Power Outputs | Regulated 5 VDC, 15 VDC; unregulated 24 VDC and 120 VAC supplies |
| Configuration | Jumper and potentiometer adjustment |
| Installation | GE drive cabinet mounting |
| Compatible Systems | GE 531X drive and exciter platforms |
Main Features and Advantages
Comprehensive Field Interface Capability
The primary function of GE 531X305NTBAJG1 is to provide a centralized connection interface for external control devices. The board allows drive systems to connect with field sensors, operator interfaces, relay circuits, and feedback devices, reducing wiring complexity and improving system organization.
Multiple I/O Signal Support
GE 531X305NTBAJG1 integrates various input and output functions, including digital signals, analog signals, relay contacts, encoder feedback, and serial communication interfaces. This multifunction design allows one terminal board to support multiple control requirements within GE drive systems.
Reliable Relay Interface
The board includes seven onboard relay outputs supporting Form A or Form C configurations. These relay channels provide flexible switching capability for alarms, control signals, and auxiliary equipment interfaces in industrial applications.
Encoder Feedback Configuration
531X305NTBAJG1 supports encoder feedback applications with selectable 5 VDC and 15 VDC encoder supply configurations. Jumper-based selection allows engineers to match the terminal board with different feedback devices during commissioning or replacement.

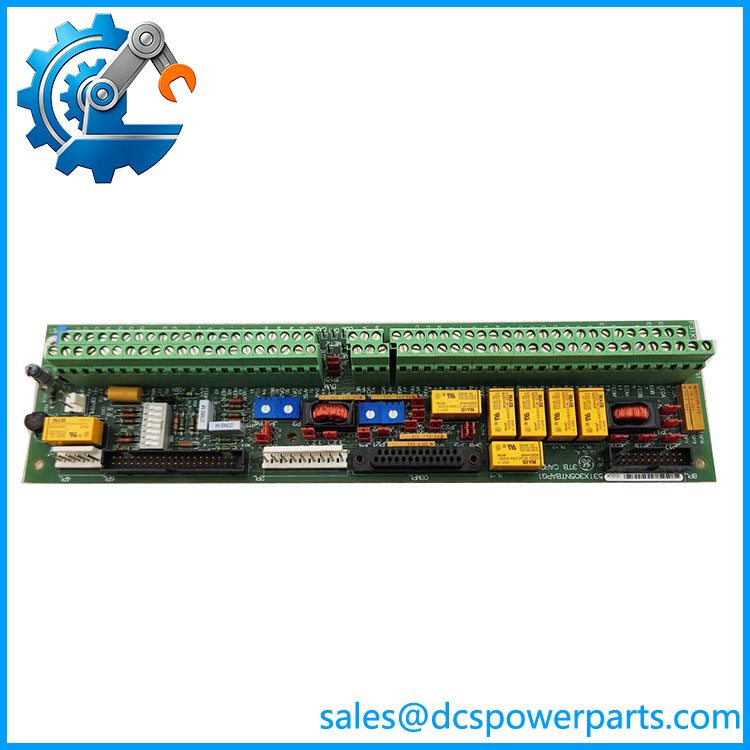

531X305NTBAJG1
Analog Signal Adjustment Capability
The integrated potentiometers provide analog input/output scaling functions. This allows technicians to adjust signal ranges and optimize compatibility between external analog devices and the drive control system.
Integrated Auxiliary Power Supply
The board provides multiple auxiliary power outputs, including regulated 5 VDC and 15 VDC supplies as well as unregulated 24 VDC and 120 VAC supplies. These power resources simplify connection of external control components.
Industrial-Grade Reliability
Built for GE industrial drive applications, 531X305NTBAJG1 is designed to operate in demanding environments with electrical noise, temperature variations, and continuous equipment operation.
Simplified Maintenance and Replacement
The modular terminal board design allows maintenance engineers to replace individual interface components instead of replacing complete drive systems. This helps reduce downtime and maintenance costs.
Extended Support for Legacy GE Drives
Many GE 531X-based AC2000 and DC2000 systems remain in operation worldwide. GE 531X305NTBAJG1 provides an effective replacement solution for maintaining existing industrial automation installations.
Application Areas
Industrial Motor Drives
GE 531X305NTBAJG1 is commonly used in adjustable speed drive systems requiring reliable field signal connections. It supports motor start/stop control, speed feedback, monitoring, and protection functions.
Manufacturing Automation
Production lines rely on accurate motor control and feedback signals. 531X305NTBAJG1 provides the interface capability required for conveyors, pumps, fans, and automated machinery.
Power Generation Facilities
Power plants use GE drive systems for auxiliary equipment such as pumps, cooling fans, and mechanical drives. The terminal board provides reliable field connectivity for these applications.
Steel and Metal Processing
Heavy industrial machinery requires stable drive control and feedback systems. GE 531X305NTBAJG1 supports motor control applications involving rolling mills and process equipment.
Oil and Gas Industry
Large rotating equipment such as compressors and pumps requires dependable control interfaces. The board supports field signal integration within GE drive systems used in these facilities.
Industrial Retrofit Projects
For plants operating legacy GE 531X drive platforms, 531X305NTBAJG1 is commonly used during maintenance, refurbishment, and system lifecycle extension projects.
