Description
Product Overview
369-HI-R-0-0-0-0-E is a Multilin Digital Motor Management Relay manufactured by GE General Electric. It is dedicated to monitoring, protection and control of three-phase AC motors.
The device samples motor voltage, current and winding temperature signals, executes comprehensive motor protection algorithms, sequence control logic and electrical metering. It supports data communication with plant DCS and SCADA systems, and records fault waveforms, startup logs and historical events.
The suffix HI stands for wide-range high control power; R represents relay output configuration; E means enhanced version with advanced diagnostic and data logging functions.
Technical Specifications
| Item | Parameter |
|---|---|
| Part Number | 369-HI-R-0-0-0-0-E |
| Module Type | Digital Motor Management Protection Relay |
| Manufacturer | GE Multilin |
| Control Power | 40–265 VAC, 50/60Hz / 50–300 VDC wide range |
| Current Input | 1A / 5A CT secondary configurable |
| Built-in RTD Channels | 12 channels for motor winding bearing temperature monitoring |
| Communication Interfaces | RS485 Modbus RTU; front panel RS232 service port |
| Protection Functions | Overload, locked rotor, phase unbalance, ground fault, underload, overvoltage, undervoltage, thermal protection |
| Additional Features | FlexCurve adjustable overload curve, waveform capture, event recording, startup data logging |
| Mounting Form | Panel cutout mounting |
| Operating Temperature | -40 ℃ ~ +60 ℃ |
| Ambient Humidity | 5%–95% non-condensing |
| Front Protection Grade | IP52 |
| Engineering Software | EnerVista 369 Setup Software |
| Spare Part Status | OEM production discontinued; surplus new and refurbished units available |

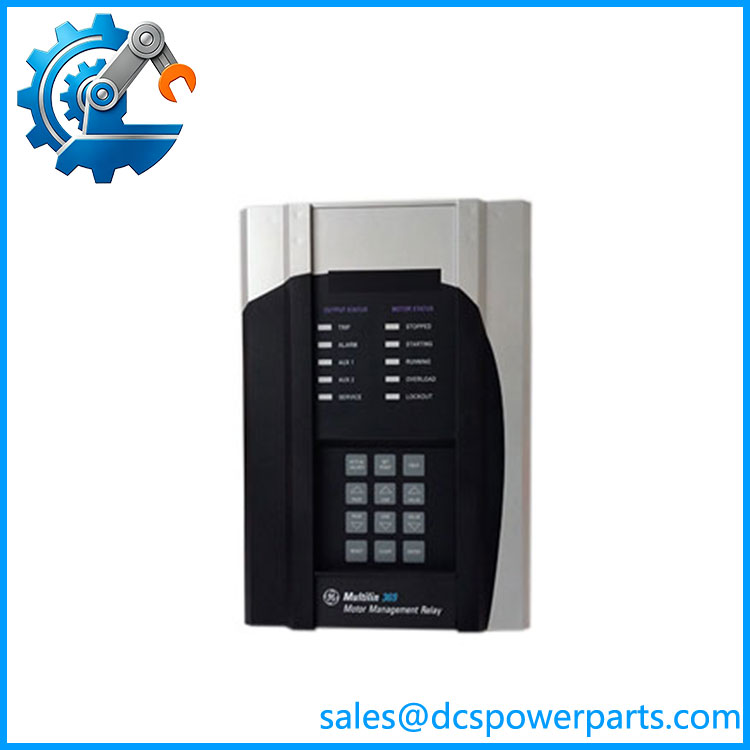

369-HI-R-0-0-0-0-E
Key Features
- Integrated all-in-one design combining protection, measurement, control and data recording, saves cabinet installation space
- Customizable thermal overload curve to match different motor insulation classes
- Built-in high-precision true RMS sampling, stable measurement under distorted harmonic load conditions
- Complete circuit self-diagnosis, detects RTD open circuit, CT circuit abnormal and internal hardware faults
- Stores trip waveform and historical fault records for post-failure analysis
- Modbus RTU communication enables seamless data exchange with DCS and monitoring systems
Important Reminder: Different suffix variants cannot be directly interchanged; replacement requires consistent full part number and parameter re-commissioning.
Application Scope
Thermal power plant auxiliary motor control cabinets, petrochemical plant pump & fan motor protection systems, water treatment plant motor control centers, oil & gas processing unit motor monitoring racks, offshore platform electrical equipment, and maintenance retrofit projects of legacy GE motor protection systems.
