Woodward 8440-1546 MFR-2 Multifunction Relay
Product Introduction
The Woodward 8440-1546 is an MFR-2 multifunction relay designed for generator control and electrical protection applications. The exact configuration is identified as MFR2S45B/A2CDD06D09HI1I4JK24MM, placing this unit within the MFR-2S family used with synchronous generator systems. The MFR-2 platform combines measurement, protection, control, synchronization, and power-management functions in one controller rather than acting as a simple protective relay. Woodward documentation describes functions including generator voltage and frequency monitoring, reverse/reduced-power protection, overload monitoring, unbalanced-load monitoring, ground-fault monitoring, mains monitoring, synchronization, circuit-breaker control, power-factor control, real-power control, and load/VAR sharing.
In practical plant applications, the Woodward 8440-1546 can sit at the center of a generator control scheme where the controller must evaluate electrical measurements and coordinate generator operation with circuit-breaker and load-management functions. The MFR-2 manual also documents operation for isolated systems, mains-parallel operation, and generator/transformer block arrangements. This makes the unit relevant to generator sets, industrial power plants, standby generation, and engine-driven power systems where synchronization and protection have to be coordinated rather than handled by unrelated standalone devices.
From a procurement standpoint, the Woodward 8440-1546 deserves careful identification before replacement. Woodward’s legacy cross-reference identifies it as an obsolete MFR-2 unit and points to 8440-1936, easYgen-3500-5/P2, as the upgrade path. That does not mean the newer controller is a wiring-level drop-in replacement. The old MFR-2 configuration, measurement ranges, discrete I/O, relay functions, parameter set, communication requirements, and generator paralleling scheme should be reviewed before approving a migration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8440-1546 |
| Manufacturer | Woodward |
| Product Type | Multifunction Relay |
| Detailed Type | MFR2S45B/A2CDD06D09HI1I4JK24MM |
| Application | Generator control, protection, synchronization, and power management |
| Generator Type | Synchronous generator applications |
| Power Supply | documentation specifies 8–36 VDC for the applicable controller supply |
| Measuring System | Generator/mains electrical measurement inputs; exact ranges depend on hardware version/configuration |
| Protection Functions | Overload, reverse/reduced power, unbalanced load, overcurrent, ground fault, voltage/frequency and mains-related monitoring |
| Synchronization | Supported by the MFR-2S version |
| Power Management | Real-power control, power-factor control, load/VAR sharing |
| Circuit-Breaker Control | Supported |
| Configuration Interface | Front-panel controls/display and PC configuration interface |
| PC Configuration | LeoPC1 via serial configuration interface |
| Communication | Interface options depend on the hardware/configuration; do not assume Ethernet from the base part number |
| Installation | Panel-mounted controller |
| Operating Temperature | Verify against the specific hardware revision and installation documentation |
| Protection Rating | Verify from the unit nameplate/manual for the exact enclosure and mounting arrangement |
| Operating Accuracy | Function- and measurement-dependent; no single accuracy figure should be assigned to the complete relay |
The manual specifically documents an 8–36 VDC controller supply for the applicable configuration and states that configuration can be performed through the front panel or by PC using the serial interface. It also distinguishes 100 V and 400 V hardware versions, which is important when evaluating an old unit from its nameplate and internal configuration.

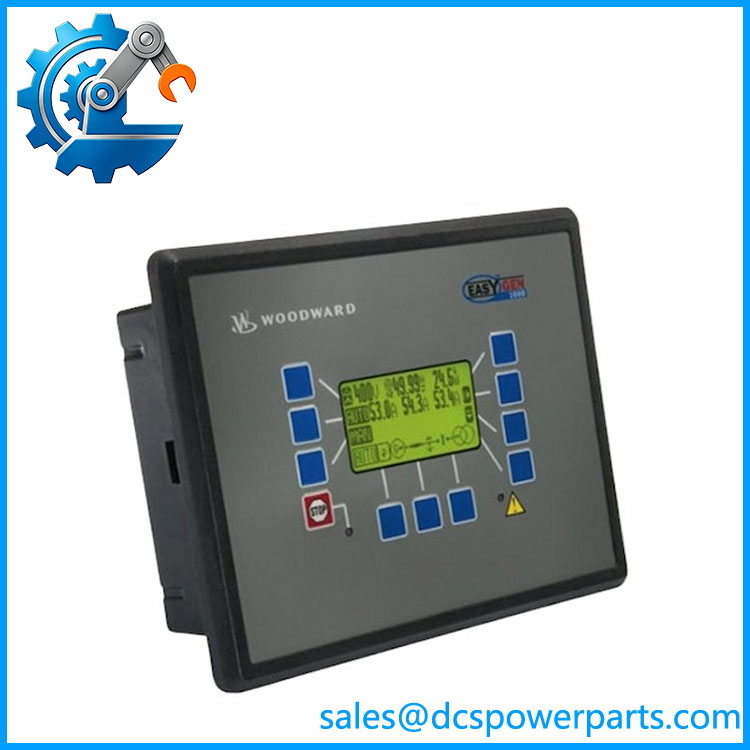

Woodward 8440-1546
Main Features and Engineering Considerations
Multifunction Generator Protection
The architecture combines several generator protection functions within one controller. Documented functions include generator overload, reverse/reduced power, unbalanced load, definite-time overcurrent, ground-fault monitoring, reactive-power monitoring, generator frequency and voltage monitoring, mains frequency and voltage monitoring, phase/asymmetry monitoring, and df/dt-related mains decoupling functions.
Synchronization and Breaker Control
The MFR-2S version is intended for synchronous-generator applications and includes synchronization functions. The controller can participate in generator circuit-breaker control and operating sequences for isolated and mains-parallel operation. This is important when replacing an existing unit because breaker timing, synchronization parameters, voltage measurement wiring, and control outputs all affect commissioning.
Power and Load Management
The documentation includes real-power control, power-factor control, and active/reactive load-sharing functions. These capabilities make the device more than a protection relay. In a generator plant, its configuration can directly influence how a machine responds to changing electrical load and how multiple machines share active or reactive power.
Configuration Is Part of the Hardware Replacement
A common mistake with legacy replacements is treating the part number as if it were the complete engineering definition. The platform has multiple hardware and option configurations. Woodward’s manual explicitly notes that the documentation covers units with available options and that functions, inputs, outputs, and configuration screens vary with the actual equipment.
Legacy Replacement Risk
Woodward’s replacement documentation identifies 8440-1546 as an obsolete unit and recommends easYgen-3500-5/P2, part number 8440-1936, as the replacement path. The older Woodward replacement material also indicates that some migration arrangements can require an ESEPRO gateway. A replacement therefore needs an engineering comparison of I/O, measurement transformers, breaker logic, communications, protection settings, and plant operating philosophy rather than a simple part-number substitution.
Application Scenarios
- Diesel or gas engine generator sets
- Industrial standby and emergency power systems
- Generator synchronization and paralleling systems
- Mains-parallel generator installations
- Isolated generator operation
- Generator/transformer block systems
- Active and reactive load-sharing applications
- Generator protection and circuit-breaker control panels
- Legacy Woodward installations requiring replacement or refurbishment
Engineer’s Guide: Field Pitfalls
1. Do not confuse 8440-1546 with a generic speed controller.
Some third-party listings describe this part incorrectly as a turbine or speed controller. The stronger Woodward cross-reference identifies it as an multifunction relay.
2. Check the complete configuration string.
The base number 8440-1546 corresponds to a specific MFR2S45B option configuration. The long configuration code should be compared against the installed unit, drawings, and parameter file.
3. Verify voltage-measurement hardware.
The documentation distinguishes 100 V and 400 V hardware versions. Do not connect a replacement based only on the nominal generator voltage. Confirm the actual voltage-input configuration and transformer ratios.
4. Preserve protection settings.
A physically compatible replacement can still create a protection problem if overload, reverse-power, ground-fault, frequency, voltage, synchronization, or breaker parameters are changed.
5. Review communication requirements separately.
The can use serial configuration and communication options, while modern Woodward replacement architectures may use different interfaces or gateways. Ethernet/Modbus capability should never be assumed from the 8440-1546 part number.
6. Treat the replacement as an engineering migration.
Woodward’s documented replacement path is an easYgen-3500-5/P2 rather than a claim that another controller is electrically identical. Compare every field termination and control function before commissioning.
Frequently Asked Questions
What is Woodward 8440-1546?
Woodward 8440-1546 is an multifunction relay, configured as MFR2S45B/A2CDD06D09HI1I4JK24MM. It is used for generator protection, synchronization, breaker control, and power-management functions.
Is 8440-1546 a PLC module?
No. It is a dedicated Woodward generator control and protection device. It should not be treated as a conventional PLC/DCS I/O module.
Is Woodward 8440-1546 obsolete?
Woodward’s legacy replacement documentation identifies the part as an obsolete device. The documented upgrade path is based on the easYgen-3500-5/P2 platform.
What replaces 8440-1546?
Woodward’s replacement mapping identifies 8440-1936, easYgen-3500-5/P2, as the recommended replacement. Migration requirements must be checked against the actual generator control scheme.
Can 8440-1936 be installed as a direct drop-in replacement?
Do not assume that. The and easYgen platforms differ in architecture, I/O, configuration, and communication arrangements. A replacement project should include wiring, protection settings, breaker logic, measurement scaling, synchronization, and communication checks.
What power supply does the use?
The manual documents an 8–36 VDC supply for the applicable controller configuration, with a stated 15 W supply specification. The exact installed configuration should still be verified from the unit documentation and nameplate.
Procurement Note
For purchasing or replacement, specify the part as:
Woodward 8440-1546 — MFR2S45B/A2CDD06D09HI1I4JK24MM — Multifunction Relay
Before accepting a replacement, request confirmation of the complete part number, hardware revision, option configuration, serial number, condition, and available parameter/configuration information. If migrating to 8440-1936, treat it as an engineering upgrade rather than a simple like-for-like component exchange.
