Description
Woodward 8280-5010
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8280-5010 |
| Manufacturer | Woodward |
| Product Family | 723 / 723PLUS |
| Product Type | Digital speed/governor controller |
| Supply Voltage | 18–40 VDC |
| Nominal Supply | 24 VDC |
| Maximum Power Consumption | 40 W |
| Speed Inputs | Magnetic pickup / proximity switch |
| Control Function | Engine speed and load control |
| Terminal Type | Screw-clamp |
| Mounting | Panel/control-cabinet installation |
| Typical Engine Type | Industrial reciprocating engines |
| Typical Application | Generator and marine engine control |
| Status | Discontinued according to current secondary lifecycle records |
The 723 platform is intended for engine-governing applications rather than general-purpose PLC duties. A published application reference specifically lists 8280-5010 among Woodward 723/723PLUS controllers used for generator control upgrades on Wärtsilä engines.
Product Introduction
The Woodward 8280-5010 is a digital engine controller from the 723 family, used to regulate engine speed and related governing functions in industrial reciprocating-engine applications. Its 18–40 VDC input makes it suitable for nominal 24 VDC engine-control systems, while the controller’s dedicated speed-control architecture is designed around engine and actuator dynamics rather than generic PLC sequencing.
For maintenance teams working on older generator or marine installations, the complete part number and revision are important. Field records associate 8280-5010 with specific Wärtsilä engine applications, including W12V46 and W12V32 installations, so the same controller designation should not be assumed to have an identical configuration in every engine package.

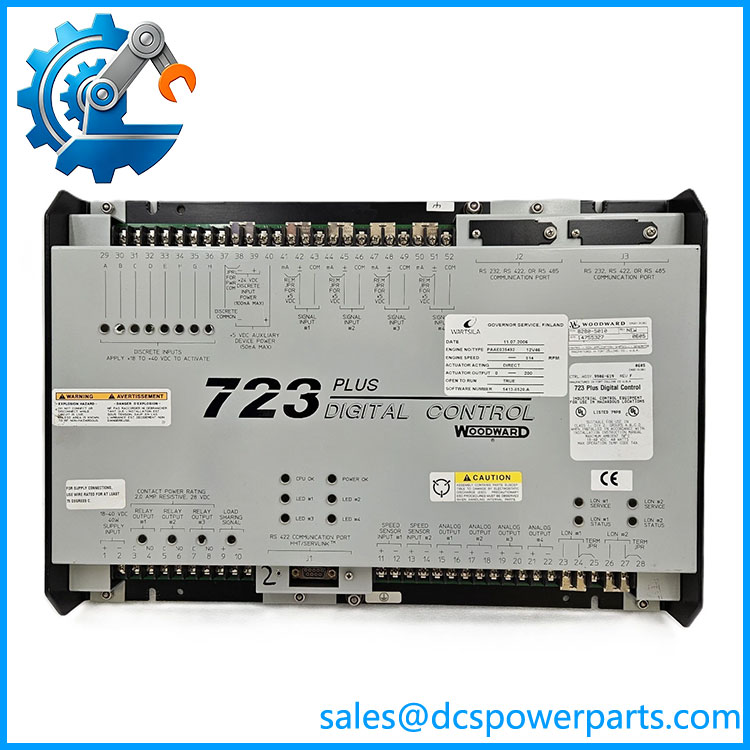

8280-5010
Engineering Pain Point
The difficult part of replacing an 8280-5010 is not simply finding another 24 VDC Woodward controller. Engine governing depends on the speed-sensing arrangement, actuator characteristics, gain and stability settings, fuel-limit logic, and application-specific configuration. A controller can power up and communicate normally while still being incorrectly configured for the engine, producing unstable speed response or incorrect actuator behavior.
Typical Applications
- Diesel generator sets requiring electronic speed and load control.
- Gas or dual-fuel reciprocating engines where digital governing replaces or supplements mechanical control.
- Marine propulsion and marine generator systems, including Wärtsilä engine packages associated with the 723PLUS platform.
- Industrial power-generation systems requiring engine speed regulation and load-management functions.
Technical Pitfalls to Avoid
- Verify the exact revision.
Field records show Rev B and Rev C examples of 8280-5010. Do not assume that a different revision is automatically equivalent; compare the hardware revision, firmware, application file, and engine package documentation. - Check the speed-sensing circuit.
Magnetic pickup and proximity-switch arrangements have different wiring and signal characteristics. Verify sensor type, tooth count, rated engine speed, pickup gap, and signal amplitude before commissioning. - Preserve the actuator configuration.
The governor output must correspond to the installed actuator and fuel-control mechanism. Replacing the controller without documenting the original actuator calibration can result in excessive or insufficient fuel demand. - Do not treat it as a generic PLC.
The 723 controller is specifically engineered for engine governing. Its control parameters and application logic have a direct relationship with engine dynamics. - Check lifecycle status before planning a long-term spare strategy.
The 8280-5010 is reported as discontinued. For a critical engine, procurement should therefore consider revision-controlled spares and an engineered migration path rather than assuming this exact controller will remain readily available.
Related Products
- Woodward 8280-5000 — closely related 723PLUS controller family member; exact application and I/O configuration must be compared before substitution.
- Woodward 8280-5020 — another 723PLUS controller associated with generator/engine control applications; not automatically interchangeable with 8280-5010.
- Woodward 8280-5030 — related 723PLUS controller used in engine-control applications; verify engine package configuration before replacement.
- Woodward 8280-419 — 723/723PLUS-related controller used in analog-load-sharing applications; functional role differs from a simple speed-control replacement.
- Woodward 8280-505 — another 18–40 VDC digital controller in the Woodward 723 family, but its application and configuration should be verified independently.
- Woodward 8280-501 — earlier 723-series controller; do not substitute based solely on the similar 8280 numbering.
Procurement check: For 8280-5010, record the complete part number, hardware revision, firmware/application configuration, engine model, actuator type, speed-sensor arrangement, and existing governor parameters before approving a replacement. For an operational engine, those details are more important than a physical match alone.
