Woodward 8273-456
Product Introduction

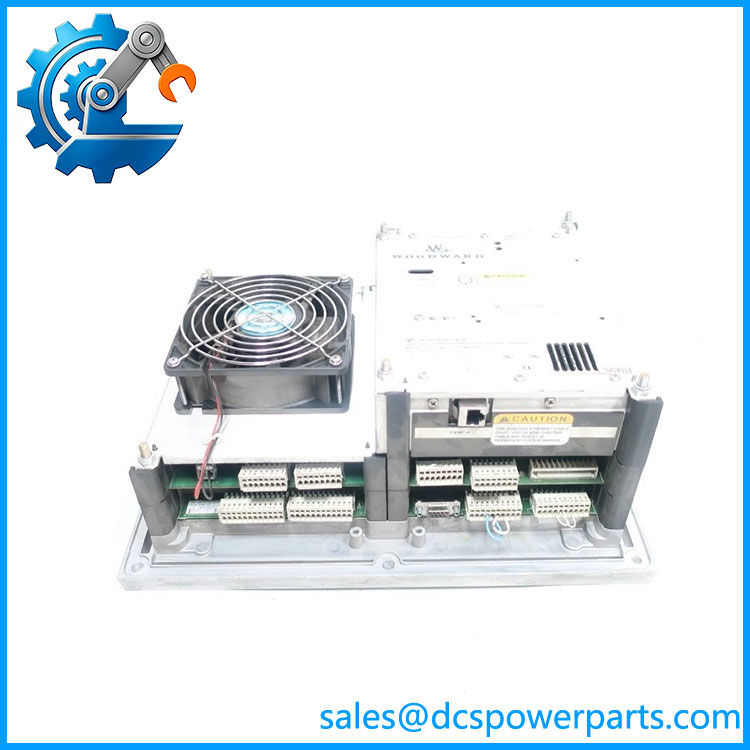

A controller replacement in an engine or generator system is rarely just a matter of matching a connector and mounting hole. The Woodward 8273-456 belongs to the Atlas control platform and is specifically identified as an Atlas assembly without the PC/104 module, Revision A. That distinction is important because the PC/104 hardware is a separate configuration element, and a board described simply as an “Atlas controller” does not necessarily contain the same hardware.
For maintenance teams supporting an installed Atlas system, the 8273-456 should therefore be purchased by its complete part number and revision. The available public evidence does not provide enough authoritative information to assign detailed processor, memory, supply-voltage, I/O, or communication specifications to this exact configuration. That is preferable to filling a procurement page with specifications belonging to another Atlas variant.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8273-456 |
| Manufacturer / Brand | Woodward |
| Product Family | Atlas |
| Product Type | Controller Assembly |
| Hardware Revision | Rev A |
| Configuration | Without PC/104 Module |
| Primary Function | Atlas engine-control system controller |
| Application | Engine / generator control |
| Mounting | Atlas system installation |
| PC/104 Module | Not included in this configuration |
| Exact Electrical Ratings | Verify from installed-system documentation/nameplate |
| Condition | Legacy; verify actual inventory condition |
The exact description “ATLAS W/O PC104 MODULE REV.A” is consistently associated with 8273-456 in available industrial inventory records.
Specification caution
I would not publish a specific DC input range, CPU speed, RAM capacity, Ethernet protocol, serial-port count, or environmental rating for 8273-456 without the applicable Woodward Atlas documentation. Search results for this part are dominated by inventory listings rather than a configuration-specific technical manual, and some listings do not provide enough evidence to establish those values.
For an industrial procurement page, “not verified” is better information than a precise number attached to the wrong hardware variant.
Application Scenarios & Pain Points
The 8273-456 is relevant to maintenance situations where an existing Woodward Atlas control installation must remain operational and the original controller assembly has become unavailable or unreliable.
Typical applications include:
- Engine control systems — Used within an Atlas-based engine-control architecture.
- Generator-set control — Applicable to control systems supporting engine-driven generation equipment.
- Marine and industrial machinery — Atlas hardware is encountered in engine-control installations where long service life can make exact replacement identification difficult.
- Legacy control-system maintenance — Useful when retaining the existing Atlas architecture is preferable to redesigning the entire control system.
A recurring field problem is incomplete identification. A cabinet may contain the controller, PC/104 hardware, interface boards, wiring harnesses, and application-specific modules. If a replacement is ordered simply as “Woodward Atlas,” there is a real possibility of receiving the wrong configuration.
8273-456
Related Products
Because Atlas configurations can vary, the following should be considered related hardware rather than automatic substitutes:
- Woodward 8273-456 — Atlas controller assembly without PC/104 module, Rev A.
- Woodward Atlas controller assemblies with PC/104 hardware — Different configuration; verify the exact ordering code before substitution.
- Atlas PC/104 module — Separate expansion/computing hardware; its presence or absence is significant when comparing controller assemblies.
- Woodward Atlas interface hardware — Application-specific interface equipment should be checked against the existing cabinet configuration.
- Woodward engine-control I/O assemblies — Related to the complete control system but not necessarily interchangeable with the controller itself.
- Woodward generator-control hardware — May coexist with an Atlas controller in generator applications; exact system architecture must be established from drawings.
Engineer’s Guide: Field Pitfalls to Avoid
1. Do not ignore “W/O PC/104 MODULE”
This is part of the identification.
8273-456 is documented as the Atlas configuration without the PC/104 module. Do not assume a visually similar Atlas controller containing PC/104 hardware is equivalent.
2. Verify the Rev A marking
The available identification specifies Revision A. For legacy Woodward equipment, revision differences can affect hardware configuration and software compatibility.
Record the complete label before removing the existing assembly.
3. Do not infer specifications from another Atlas model
Atlas is a platform, not a single universal controller configuration. A specification found for another Atlas part should not automatically be copied onto 8273-456.
This is especially important for:
- Supply voltage
- Processor
- Memory
- PC/104 configuration
- Communication interfaces
- I/O capacity
- Firmware
4. Check the PC/104 requirement before ordering
If the original cabinet uses a PC/104 module, determine whether that module is being retained separately or needs to accompany the replacement.
Ordering the controller alone may be correct—but only if the existing PC/104 hardware is compatible and serviceable.
5. Preserve the existing configuration
Before replacement, document:
- Controller part number
- Revision
- PC/104 hardware
- Interface boards
- Cable connections
- Firmware information
- Application configuration
- DIP-switch or hardware settings where present
A replacement controller that powers up but lacks the correct application configuration is not a successful field replacement.
6. Inspect used inventory carefully
For a legacy controller, incoming inspection should include:
- PCB identification
- Revision marking
- Connector condition
- Evidence of overheating
- Corrosion or contamination
- Damaged components
- PC/104 interface condition
- Mounting hardware
- Signs of previous repair
A clean exterior does not establish functional condition.
7. Test the complete control loop
If the controller is being replaced because of an engine-control problem, do not automatically assume the controller caused the fault. Verify power, sensors, actuator circuits, communications, I/O interfaces, and application configuration as part of commissioning.
FAQ
What is Woodward 8273-456?
Woodward 8273-456 is an Atlas controller assembly, Revision A, configured without the PC/104 module. This exact description appears consistently in current industrial inventory records.
Is 8273-456 a PLC module?
It should not be classified as a conventional PLC I/O module. It is an Atlas control-system controller assembly intended for engine-control applications.
What does “W/O PC104 Module” mean?
It means the listed 8273-456 configuration is supplied without the associated PC/104 module. When comparing replacement hardware, confirm whether the original installation has a separate PC/104 assembly that must be retained or transferred.
What revision is Woodward 8273-456?
The available identification specifies Revision A. When purchasing used or surplus equipment, request a photograph of the actual identification label rather than relying on a generic 8273-456 description.
Can another Woodward Atlas controller replace 8273-456?
Not automatically. The complete Atlas configuration, PC/104 arrangement, firmware, interfaces, application requirements, and wiring should be compared before approving a substitution.
What should I request when purchasing 8273-456?
Ask for photographs showing the complete 8273-456 part number, Rev A marking, board assembly, connectors, and PC/104 interface area. Also clarify whether the quoted item is the controller only or includes any separately installed Atlas/PC/104 hardware.
Why are detailed specifications difficult to verify for this part?
The current public search evidence is dominated by inventory records that identify the part but do not provide a configuration-specific Woodward technical specification sheet. For that reason, processor, memory, power, I/O, communication, and environmental values should be confirmed against the actual Atlas system documentation before publication or procurement.
