Description

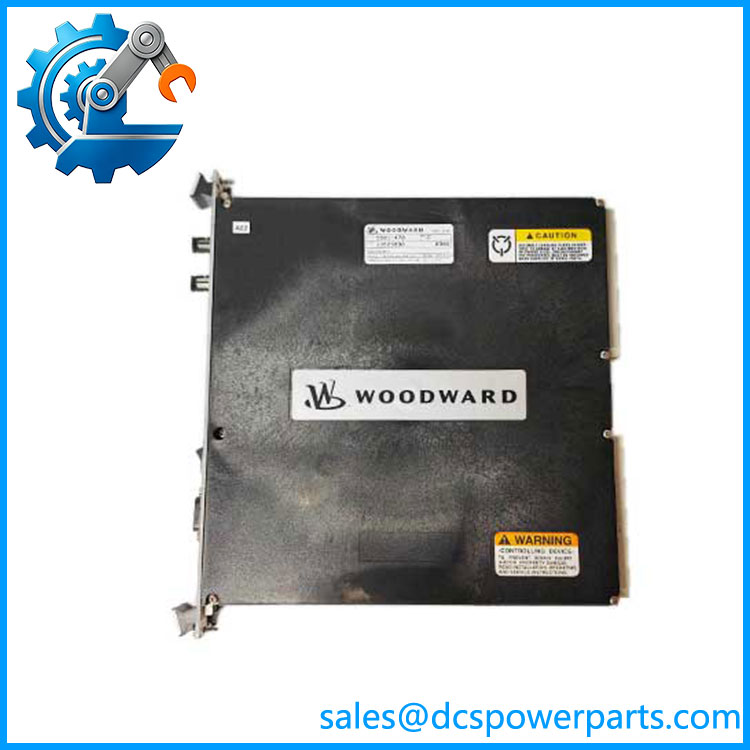

WOODWARD 5501-470
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Part Number | 5501-470 |
| Product Type | CPU Module |
| Woodward Designation | NETCON CPU_040 |
| Memory Configuration | Without LL Memory |
| System Family | NetCon |
| Processor Role | Central control processing |
| Reset | Manual reset reported |
| Connector | 9-pin interface reported |
| Status | Legacy hardware |
| Application | Industrial turbine / prime-mover control |
| Application Software | Configuration-dependent |
| Operating Temperature | Verify from applicable hardware manual |
| Supply Voltage | Verify from applicable NetCon system documentation |
| Dimensions | Verify from physical assembly/documentation |
Woodward’s own documentation identifies 5501-470 as “NETCON CPU_040, LL memory without” and separately lists 5501-471 as the NetCon 5000B SIO module. A Woodward product-change document also identifies 5501-470 as a CPU assembly associated with multiple application-software configurations.
Product Introduction
The WOODWARD 5501-470 is a legacy NetCon CPU_040 module that serves as central processing hardware within the Woodward control architecture. Its defining configuration is without LL memory, which is important when comparing it with other 5501-series NetCon CPU assemblies. The module should be treated as controller-specific hardware rather than as a general-purpose PLC CPU.
The application software associated with a 5501-470 installation can vary. Woodward’s documentation lists multiple CPU assemblies and application combinations, so the part number alone does not establish the turbine application, control algorithm, firmware revision, or exact software package installed on a particular unit.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a legacy turbine controller stops executing correctly, replacing the CPU is not always the first answer. A NetCon CPU fault can originate from memory, power, backplane connections, application software, or an external I/O problem. With the 5501-470, the additional concern is that several similar Woodward CPU assemblies exist, and their memory configurations and application assignments are not necessarily interchangeable.
5501-470
Typical Applications
- Turbine control systems — Central processing for legacy Woodward turbine-control installations.
- Prime-mover control — Application-dependent control of turbines and other driven machinery.
- Legacy industrial automation — Continued operation of older Woodward control platforms.
- Plant turnaround maintenance — Replacement of aging CPU hardware during scheduled outages.
- Critical spare inventory — Holding a verified CPU before an obsolete controller becomes a shutdown risk.
Technical Pitfalls
1. Do not confuse 5501-470 with 5501-471.
The numbers are adjacent but their functions are different. 5501-470 is the NetCon CPU_040, while 5501-471 is the NetCon 5000B SIO module.
2. Check the LL-memory configuration.
Woodward specifically identifies 5501-470 as the CPU_040 configuration without LL memory. A different CPU assembly with LL memory should not be assumed to be a drop-in replacement.
3. Application software matters.
Woodward’s change documentation associates CPU assemblies with numerous application-software part numbers. A replacement CPU may therefore require the correct application image or configuration for the particular turbine package.
4. Do not rely on generic CPU specifications from reseller databases.
Secondary listings disagree on processor type, memory capacity, bus architecture, operating temperature, and even product family. Those specifications should not be copied into a plant equipment record unless they are confirmed against the exact hardware revision.
5. Verify the physical revision.
Record the board revision, label information, connectors, memory configuration, and any Woodward assembly number before ordering. This is especially important when several generations of NetCon hardware remain in plant inventory.
6. Preserve the existing application configuration.
Before CPU replacement, back up available application data and document the installed software/configuration version. A correctly identified CPU with an incorrect application image can still leave the turbine unavailable.
7. Investigate the original failure.
Check system power, backplane connections, diagnostic indications, memory faults, and external I/O communication before declaring the CPU defective. Otherwise, the replacement CPU may experience the same failure.
8. Treat used stock as a controlled spare.
For surplus 5501-470 hardware, inspect the PCB, connectors, memory components, and revision markings. Functional testing under the correct NetCon configuration is preferable to a simple power-up test.
Related Products
- WOODWARD 5501-468 — NetCon CPU_040 configuration identified in Woodward documentation; verify its specific memory/application configuration before comparison.
- WOODWARD 5501-469 — NetCon CPU_040 configuration associated with LL-memory/application variants; not automatically interchangeable with 5501-470.
- WOODWARD 5501-471 — NetCon 5000B SIO module; serial I/O function rather than CPU processing.
- WOODWARD 5501-473 — NetCon dual-overspeed module; dedicated overspeed/protection function.
- WOODWARD 5501-476 — NetCon dual-overspeed module.
- WOODWARD 5501-477 — NetCon dual-overspeed module configured for a specific frequency application.
- WOODWARD 5501-478 — NetCon dual-overspeed module configured for a specific frequency application.
- WOODWARD 5501-479 — NetCon dual-overspeed module configured for a specific frequency application.
- WOODWARD 5503-173 — MicroNet VME CPU adapter; different hardware role from the NetCon CPU_040.
- WOODWARD 5503-335 — MicroNet 5200 CPU; different controller generation.
Procurement Note
For WOODWARD 5501-470, the critical purchasing information is not simply “CPU module.” Specify NetCon CPU_040, without LL memory, then provide the existing controller model, board revision, application software number, and physical label information.
If the unit is being purchased as a replacement for an operating turbine controller, I would also request a clear photograph of the front label and connector area. The photo can help distinguish the 5501-470 configuration from nearby NetCon CPU and SIO assemblies before the spare is committed to a shutdown-critical application.
