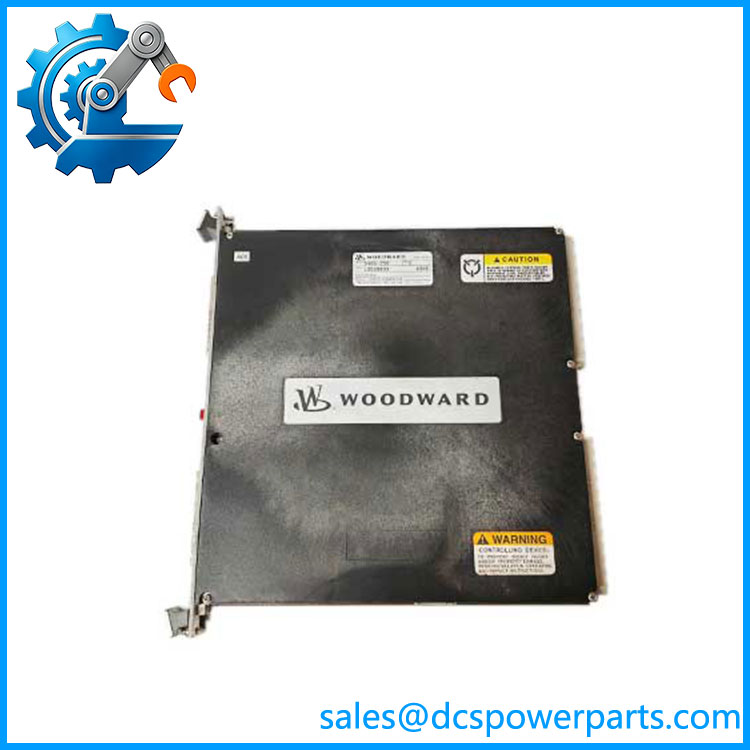

Woodward 5466-258 | Simplex High-Density Discrete I/O Module | MicroNet Legacy Spare
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Part Number | 5466-258 |
| Module Type | Simplex Discrete I/O |
| Product Family | MicroNet HDD |
| Discrete Inputs | 48 |
| Discrete Outputs | 24 |
| Input Isolation | Optically isolated inputs reported |
| Architecture | Simplex |
| Field Termination | Compatible MicroNet FTM arrangements |
| Application | MicroNet / Vertex-Pro control systems |
| Lifecycle | Obsolete / replaced |
| Replacement Family | HDDIO |
The 48-input / 24-output identification is consistent across technical references, while Woodward’s own product-change notice establishes the module as the Simplex HDD part number.
Product Introduction
The Woodward 5466-258 is a legacy MicroNet High-Density Discrete I/O module used for concentrated discrete signal handling in turbine and compressor control applications. Its 48-input/24-output configuration provided a high I/O density within the MicroNet architecture, with field termination handled through the associated FTM arrangement.
For an operating plant, the 5466-258 is primarily a maintenance and legacy-system spare rather than a new control-system selection. Woodward officially replaced the HDD family with HDDIO modules, so CPU platform and Coder version should be checked before treating a newer part as a direct substitute.
5466-258
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A failed discrete I/O card on an older MicroNet installation can create a much larger problem than simply replacing a circuit board. The I/O module, CPU generation, Coder version, field termination modules, and application configuration all have to agree. With 5466-258, the age of the hardware makes revision and software compatibility particularly important.
Typical Applications
- Woodward MicroNet turbine control panels
- Steam and gas turbine auxiliary control
- Compressor control systems using MicroNet/Vertex-Pro hardware
- Legacy plant automation systems requiring like-for-like HDD spares
Technical Pitfalls
1. Do not confuse 5466-258 with 5466-256.
Woodward identifies 5466-258 as the Simplex HDD module, while 5466-256 belongs to the redundant/TMR HDD application.
2. Replacement selection depends on the CPU and Coder version.
For 5200/P1020 systems with Coder 5.04 or later, Woodward specifies 5466-1050. For 5200 systems on Coder 4.06 or later requiring spare support, 5466-1158 is identified as the adapted replacement. Older 040/Pentium NT systems require a different evaluation.
3. Do not assume “same functionality” means unrestricted plug-and-play.
Woodward states that the newer HDDIO modules incorporate changes to self-test routines, memory mapping, and kernel handshaking. That matters when dealing with an older controller and application software.
4. Verify the FTM and cabling before installation.
The 5466-258 uses high-density field termination arrangements. A correct module with the wrong termination hardware can still result in commissioning delays.
5. Check the physical part number and revision.
Legacy Woodward cards can remain in service for many years. Before purchasing a used or surplus unit, compare the complete label, revision marking, connectors, and existing chassis configuration rather than matching only “5466-258.”
Related Products
- Woodward 5466-1050 — preferred HDDIO replacement for applicable 5200/P1020 systems using Coder 5.04 or later.
- Woodward 5466-1158 — adapted HDDIO replacement for applicable 5200 systems using Coder 4.06 or later.
- Woodward 5466-256 — legacy HDD module for TMR/redundant applications; not the same architecture as 5466-258.
- Woodward 5466-1051 — HDDIO replacement associated with the 5466-256 redundant/TMR application.
- Woodward 5501-365 — MicroNet field termination hardware used with other high-density I/O configurations; verify application-specific compatibility.
- Woodward 5466-257 — high-density analog I/O TMR module, functionally different from the discrete 5466-258.
- Woodward 5466-253 — TMR analog/speed/proportional actuator combination module, intended for a different I/O requirement.
Procurement Note
For a 5466-258 replacement, provide the existing CPU part number, Coder/application version, chassis type, and FTM part number when possible. That information is more useful than the I/O count alone when determining whether a legacy spare, 5466-1050, 5466-1158, or another Woodward-supported option is appropriate.
