Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IOC16T |
| Part Numbers | 200-565-000-013 / 200-565-101-013 |
| Manufacturer | Vibro-Meter |
| Product Type | Input/Output Interface Card |
| System Platform | VM600 Condition Monitoring System |
| Associated Card | CMC16 Condition Monitoring Card |
| Channel Count | 16 channels |
| Terminal Interface | 48 screw terminal connections |
| Signal Types | Dynamic vibration, tacho, process signals |
| Channel Configuration | DIL switch selectable |
| Signal Conditioning | Integrated input conditioning and EMI protection |
| Bus Interface | VM600 Raw Bus / Tacho Bus routing |
| Communication Option | Isolated RS-485 interface option |
| Installation | Rear rack mounting in ABE04X / ABE055 systems |
| Replacement Function | Field signal interface for machinery monitoring |
Application Scenarios & Pain Points
Machinery protection systems depend on clean, correctly scaled vibration signals. A sensor may be healthy, yet poor signal conditioning or a failing interface card can create false alarms, missed warnings, or unstable trends.
Typical applications:
- Power Generation: Used with VM600 monitoring systems for turbine, generator, and auxiliary rotating equipment vibration monitoring.
- Oil & Gas Facilities: Supports compressor, pump, and rotating machinery protection where early fault detection is required.
- Chemical Processing: Applied on critical pumps, fans, and process machinery where vibration trends affect maintenance decisions.
- Industrial Manufacturing: Used for monitoring high-value rotating assets such as motors, gearboxes, and production line drives.
Field note: A compressor station experienced repeated vibration alarms that did not match mechanical inspection results. Signal tracing showed inconsistent input conditioning from the interface card. Replacing the IOC16T and verifying sensor wiring restored stable vibration monitoring.

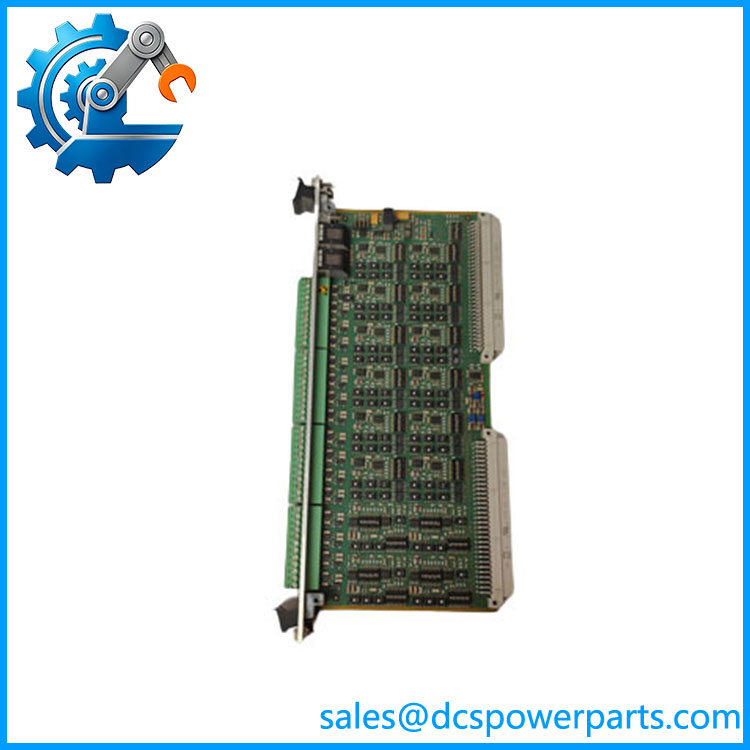

IOC16T
Related Products
- Vibro-Meter CMC16 — Main condition monitoring card paired with IOC16T. The CMC16 performs monitoring functions while IOC16T handles field signal interfacing.
- Vibro-Meter MPC4 — Machinery protection card used in VM600 systems for vibration monitoring and protection applications.
- Vibro-Meter IOC4T — Lower-channel interface card for applications requiring fewer field connections.
- Vibro-Meter IOC8T — Intermediate I/O interface option for specific VM600 monitoring configurations.
- Vibro-Meter CPUM — VM600 processor and communication module handling system processing and data exchange.
- Vibro-Meter RPS6U — redundant power supply module supporting rack operation.
- VM600 ABE04X Rack — Standard rack assembly supporting IOC16T installation and monitoring modules.
- VM600 ABE055 Rack — Portable or compact rack option supporting IOC16T-based monitoring configurations.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Wrong Sensor Type Configuration
The supports multiple signal types, but channel settings must match the installed sensors.
How to avoid: Confirm whether each channel is configured for vibration, tacho, or process input before replacement.
⚠️ CMC16 and Pairing Errors
The interface card works as part of a matched monitoring assembly.
How to avoid: Record the associated CMC16 model, rack position, and channel mapping before removing the card.
⚠️ Terminal Wiring Mistakes
A wiring error can produce false vibration readings even when the replacement module is healthy.
How to avoid: Label every field wire, check terminal assignments, and inspect screw terminals for loose connections or oxidation.
Frequently Asked Questions (FAQ)
What is the main function of the Vibro-Meter ?
The is an input/output interface card used with CMC16 monitoring systems to connect and condition vibration, tacho, and process signals.
Are 200-565-000-013 and 200-565-101-013 interchangeable?
They belong to the same family, but replacement should be confirmed against the installed hardware revision and application configuration.
Is the a standalone vibration monitor?
No. The provides field interface functions. The associated monitoring card, such as , performs the primary monitoring and analysis functions.
What equipment typically uses the ?
Common applications include:
- Gas turbines
- Steam turbines
- Compressors
- Pumps
- Generators
- Large industrial rotating machinery
Why does a replacement show incorrect vibration readings?
Possible causes include:
- Incorrect channel switch settings
- Wrong sensor type selection
- Wiring polarity issues
- Incorrect configuration
- Damaged sensor cables
What should be checked before purchasing an ?
Recommended checks:
- Exact part number
- Associated or monitoring card model
- Rack type
- Sensor types connected
- Channel configuration
- Existing terminal wiring
Is a refurbished suitable for machinery protection service?
A tested refurbished module can be suitable when it passes channel verification, signal conditioning checks, connector inspection, and compatibility testing with the existing rack configuration.
