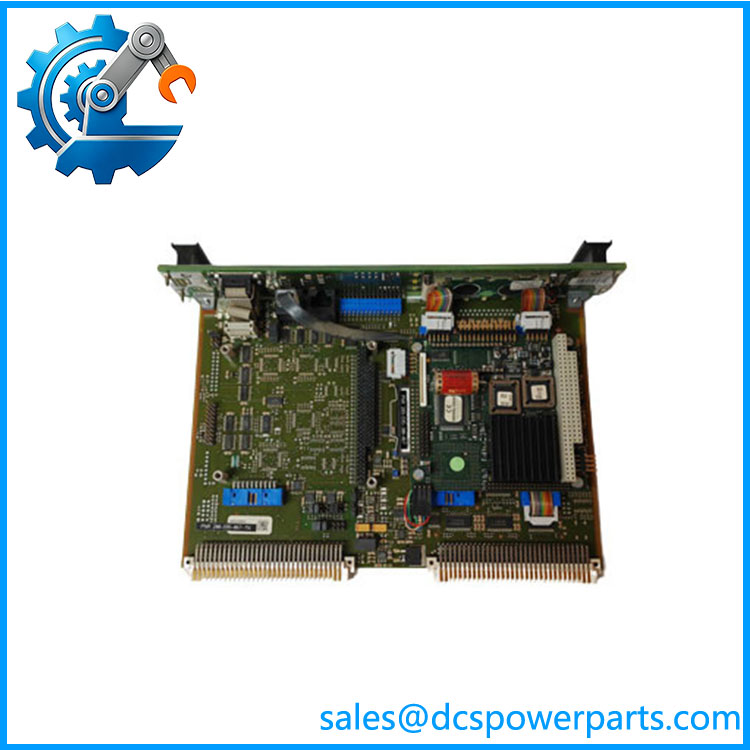

The VM600 CPU-M is a high-performance main central processing unit module designed for the VM600 series industrial machinery vibration and health monitoring system. As the core control and data processing unit of the entire monitoring system, it undertakes global system operation control, real-time data calculation, logic judgment, alarm management and upper computer data interaction tasks. With industrial-grade high-speed processing capability, reliable system scheduling mechanism and perfect fault tolerance design, it ensures long-term stable and accurate operation of large-scale rotating machinery monitoring and protection systems in harsh industrial environments.
1. High-speed Centralized Data Processing: Adopts industrial high-performance CPU core, supporting simultaneous processing of multi-channel vibration, speed, displacement and temperature monitoring data. It realizes high-speed real-time calculation, spectrum analysis and trend data sorting, ensuring low-delay response of system monitoring data.
2. Global System Operation Control: Acts as the system master control unit, responsible for unified scheduling and management of all functional I/O modules in the VM600 chassis. It synchronizes data collection timing, unifies logic operation standards, and coordinates alarm output and interlock action execution to ensure systematic and consistent system operation.
3. Rich Communication & Docking Capability: Built-in multiple industrial Ethernet and serial communication interfaces, supporting stable data transmission with upper monitoring software, DCS and SCADA systems. It realizes real-time upload of operating data, fault information and alarm records, as well as remote parameter configuration and system diagnosis.
4. Complete Alarm & Logic Management Function: Integrates multi-level alarm threshold judgment, delay filtering and fault locking logic. It supports customizable alert and danger alarm rules, effectively filtering accidental signal interference, ensuring accurate alarm output and reliable equipment safety interlock control.
5. Intelligent System Self-diagnosis & Fault Tolerance: Realizes full-range self-diagnosis of chassis power supply, module status, communication link and data abnormality. It can automatically locate system faults, record fault logs and trigger fault alarms, providing accurate data support for equipment maintenance and troubleshooting.
6. Industrial-grade High Stability & Anti-interference: Adopts reinforced industrial circuit design and EMC electromagnetic shielding technology, with strong resistance to on-site electromagnetic interference, temperature fluctuation and vibration impact. It supports 24/7 uninterrupted stable operation of industrial monitoring systems.
7. Hot-swap & Expandable Architecture: Supports online hot-swap replacement without system shutdown, effectively reducing system maintenance downtime. It features flexible system expansion, supporting free expansion of various I/O modules to adapt to different scale machinery monitoring projects.
CPU-M
Product Parameters
|
Item
|
Specification
|
|
Part Number
|
VM600 CPU-M
|
|
Product Type
|
Main CPU Control Module for Vibration Monitoring System
|
|
Applicable System
|
VM600 Series Machinery Health & Vibration Monitoring System
|
|
Core Function
|
System master control, real-time data processing, alarm logic judgment, communication data transmission, system self-diagnosis
|
|
Processing Performance
|
High-speed industrial CPU core, supporting multi-channel synchronous data operation and analysis
|
|
Communication Interface
|
Industrial Ethernet, standard serial communication interface, supporting multi-protocol data transmission
|
|
System Management
|
Unified scheduling of chassis I/O modules, synchronous data acquisition, centralized logic control
|
|
Alarm Function
|
Multi-level threshold judgment, configurable delay filtering, fault record storage and alarm output
|
|
Self-diagnosis Mechanism
|
Full system status monitoring, automatic fault location, log recording and abnormal alarm feedback
|
|
Hot-swap Support
|
Support Online Hot-swap Replacement
|
|
Power Supply
|
24VDC Industrial Standard Power Supply
|
|
Operating Temperature Range
|
-20℃ ~ +60℃
|
|
Storage Temperature Range
|
-40℃ ~ +85℃
|
|
Working Humidity
|
5%~95% Non-condensing
|
|
Environmental Performance
|
Industrial EMC anti-interference, vibration and shock resistance design
|
|
Installation Method
|
Standard Chassis Rack Slot Mounting
|
|
Industrial Standard
|
Compliant with industrial machinery monitoring and EMC safety certification standards
|
Product Usage Method
1. Pre-installation Inspection: Inspect the VM600 CPU-M module appearance, circuit board, communication interfaces and fixing parts to confirm no damage, oxidation or loose components. Verify the matching compatibility with VM600 system chassis and various I/O modules to meet system master control operation requirements.
2. Static Protection Operation: Complete module installation and wiring in a dry, dust-free and static-proof industrial environment. Wear professional anti-static gloves and wrist straps to prevent static discharge from damaging internal CPU processing chips and precision control circuits.
3. Module Installation & Fixation: Insert the VM600 CPU-M module smoothly into the designated master control slot of the system chassis, and tighten the fixing screws to ensure stable contact with the backplane bus. Avoid poor contact and system operation abnormality caused by on-site equipment vibration.
4. Interface Wiring Connection: Connect 24VDC power supply cable, upper computer communication cable and system bus cable in strict accordance with official wiring specifications. Distinguish different functional interfaces to prevent wrong wiring, short circuit and communication failure faults.
5. System Parameter Configuration: After confirming correct wiring and installation, connect the dedicated VM600 configuration software. Set system operation parameters, module addressing rules, alarm threshold logic and communication protocol parameters according to on-site machinery monitoring requirements, then download and save all configuration data.
6. System Debugging & Operation Verification: Start the system self-diagnosis program to check CPU module operating status, bus communication stability and I/O module scheduling status. Simulate equipment operation data and abnormal signals to verify data processing accuracy and alarm logic response reliability.
7. Online Operation & Daily Maintenance: After passing debugging and verification, put the module into long-term online operation as the system core control unit. Regularly check module operating temperature, communication status and wiring tightness, clean dust periodically, back up system configuration and fault log data to ensure continuous and stable operation of the machinery monitoring system.
Product Application Fields
1. Thermal & Gas Power Industry: Widely used in VM600 monitoring systems for power plant steam turbines, generators, fans and water pump units. It serves as the core control unit to complete real-time monitoring data processing and equipment safety alarm management, ensuring safe operation of power generation units.
2. Petroleum & Chemical Industry: Applied in health monitoring systems of large compressors, turbo machinery and rotating process equipment in oil and gas fields and chemical plants. It realizes centralized processing and intelligent judgment of equipment vibration and operating parameters, supporting predictive maintenance of chemical equipment.
3. Metallurgy & Building Materials Industry: Suitable for monitoring system master control of large industrial fans, kiln transmission equipment and high-load rotating units in steel and cement plants. It stably processes mass operating data and provides accurate fault early warning for industrial production equipment.
4. Water Treatment & Energy Industry: Used in health monitoring systems of hydropower units and energy transmission equipment, undertaking system operation scheduling and data analysis tasks, ensuring long-term stable and safe operation of energy equipment.
5. Industrial Intelligent Machinery Monitoring: As the core master control module of VM600 series monitoring system, it is widely deployed in various industrial rotating machinery monitoring scenarios, providing core computing, control and data transmission support for equipment health monitoring, fault diagnosis and safety protection systems.
