  • Model: DVSC-TT-14C-09
  • Brand: Vision
  • Series: Vision AC Servo Drive
  • Core Function: Closed-loop servo amplification for precision position, speed, and torque control
  • Type: AC Servo Drive / Servo Amplifier
  • Control: Position, speed, and torque control
  • Command: Pulse-command and bus-based motion control reported
  • Feedback: Encoder-based servo feedback; exact encoder configuration must be verified
  • Condition: Legacy/older-generation unit; verify availability and revision before procurement
Add To Quote
Category: SKU: Vision DVSC-TT-14C-09

Description

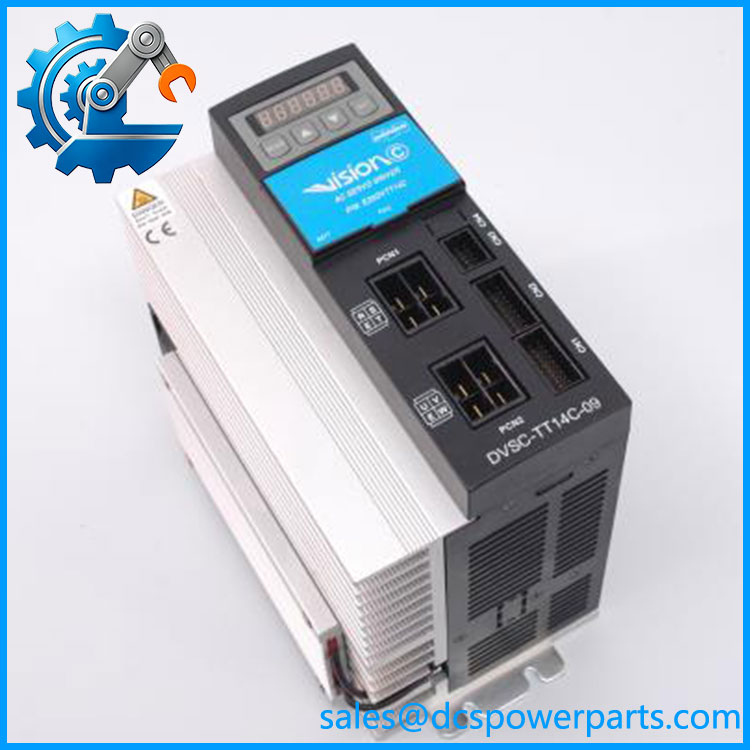

Vision DVSC-TT-14C-09 AC Servo Drive



Key Technical Specifications

Parameter Specification
Manufacturer Vision
Model DVSC-TT-14C-09
Product Type AC Servo Drive
Product Family Vision Drives-AC Servo
Input Supply AC 200–230 V, 50/60 Hz, 3-phase — reported by current technical listings
Rated Power 1.5–2.0 kW — reported by current technical listings
Control Modes Position / Speed / Torque
Communication RS-485 / Modbus-RTU reported
Command Interface Pulse command reported
Digital I/O Photocoupler-isolated I/O reported
Feedback Absolute or incremental encoder support reported
Mounting Cabinet / wall mounting
Operating Temperature 0–50 °C reported
Approx. Weight 3.7 kg reported

The available technical listings consistently classify the DVSC-TT-14C-09 as a Vision AC servo drive. One source gives a 200–230 VAC three-phase supply and 1.5–2.0 kW rating, while another identifies it simply as a Vision Drives-AC Servo unit without publishing electrical ratings.



Product Introduction

The Vision DVSC-TT-14C-09 is an AC servo drive used with a compatible servo motor for closed-loop motion control. Available documentation describes position, speed, and torque control functions, with pulse-command operation and RS-485/Modbus-RTU communication reported for this model.

This is a component where the exact motor and feedback pairing matters as much as the drive rating. Field replacement should therefore be based on the complete drive nameplate, motor model, encoder type, control wiring, and parameter set rather than the DVSC-TT-14C-09 model number alone.

DVSC-TT-14C-09

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

The main replacement risk is electrical and feedback compatibility. A servo amplifier may power up normally while still being unsuitable for the installed motor because of encoder protocol, motor-current rating, feedback wiring, or parameter differences.

Typical Applications

  • Machine tools — Servo-axis position and speed control.
  • Automated machinery — Coordinated positioning and repetitive motion.
  • Packaging equipment — Servo-driven indexing and synchronized mechanisms.
  • Industrial motion systems — Closed-loop motor control requiring position, speed, or torque regulation.

Technical Pitfalls to Avoid

  1. Do not rely on conflicting online power ratings.
    One source reports 200–230 VAC and 1.5–2.0 kW, while another web page incorrectly presents the same model with 380 VAC and 14 kW. That discrepancy is too large to ignore. The drive nameplate or original technical manual should take priority.
  2. Match the servo motor and encoder.
    The drive is part of a motor-drive-feedback system. Replacing only the amplifier without checking encoder type, motor current, resolver/encoder wiring, and parameter data can result in encoder alarms or uncontrolled commissioning behavior.
  3. Verify the control interface.
    Pulse-command and RS-485/Modbus functions are reported for the model, but the exact terminal allocation and supported operating modes should be confirmed against the machine’s original wiring documentation.
  4. Check revision and firmware before substitution.
    A field repair record confirms this exact model in service, including a unit identified with serial number TT10I131. That supports its use as a legacy field component, but does not establish interchangeability between hardware revisions.



Related Products

  • Vision DVSC-TM-14D-04 — Related Vision servo-drive model identified alongside the DVSC-TT-14C-09.
  • Vision DVSD-TT Series — Related Vision drive family with documented operating information.
  • Vision AC Servo Drive Series — Same general servo-amplifier product family.
  • Vision AC Servo Motors — Motor-side equipment that must be matched to the drive feedback and electrical ratings.
  • RS-485/Modbus Servo Systems — Relevant where the existing machine uses serial motion control.
  • Pulse-Command Servo Systems — Relevant for PLC or motion-controller pulse-train positioning.



Procurement Check

For a replacement, request or verify the following before approving the unit:

  • Exact model:
  • Complete nameplate photograph
  • Input voltage and phase
  • Rated/peak output current
  • Compatible servo motor model
  • Encoder or feedback type
  • Control method: pulse, analog, or serial
  • RS-485/Modbus configuration if used
  • Hardware revision
  • Firmware revision
  • Existing parameter backup

Important: Current public sources are not sufficiently consistent to treat every published electrical value as authoritative. For an installed machine, the nameplate and original Vision documentation should override reseller specifications.
