Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Vibro-Meter / Meggitt |
| Product Family | VM600 / VM600Mk2 |
| Model | ABE040 |
| Ordering Number | 204-040-100-011 |
| Product Type | System Rack |
| Rack Height | 6U |
| Rack Width | 19-inch |
| Backplane | Integrated VME backplane |
| Primary Function | Mechanical mounting and electrical interconnection |
| Supported Hardware | VM600/VM600Mk2 processing, I/O, relay, CPUx and power-supply modules |
| Power Supply | 1 or 2 × RPS6U |
| Power Supply Type | RPS6U rack power supply |
| Processing Card Position | Front |
| Associated I/O Position | Rear |
| Rack Controller Support | CPUx |
| Monitoring Software | VM600 MPSx / VibroSight, depending on installed architecture |
| Application | Machinery protection / condition monitoring |
| Mounting | 19-inch cabinet or panel |
| Part Configuration | 204-040-100-011 |

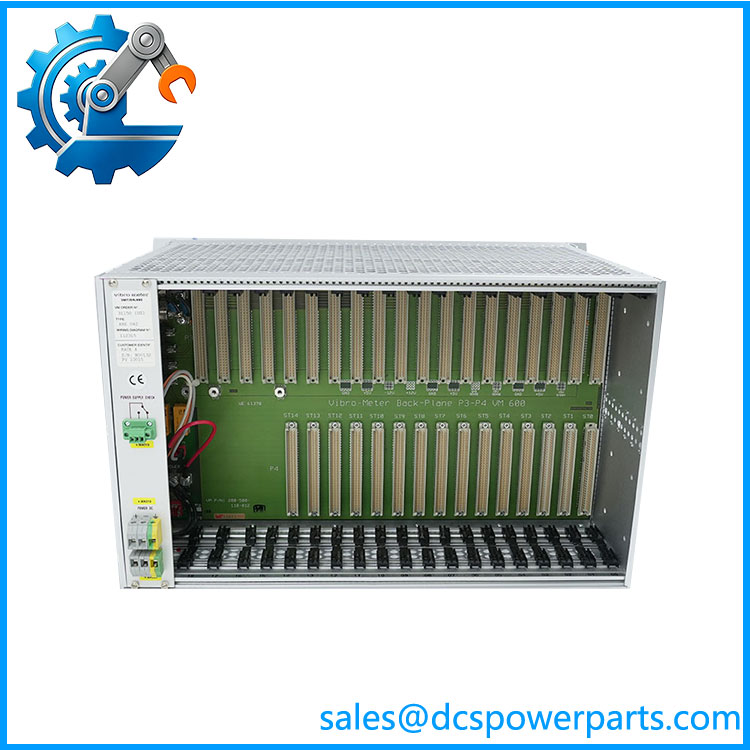

The ABE040 documentation describes the VM600/VM600Mk2 rack as a 6U system rack with an integrated VME backplane. The backplane provides electrical interconnections among power supplies, signal-processing modules, I/O cards, relay cards, and CPUx rack-controller hardware.
A useful distinction: 204-040-100-011 is not a monitoring card itself. It is the rack infrastructure. The measurement and protection functions come from the cards installed inside it.
Application Scenarios & Pain Points
When a VM600 rack has a damaged backplane connector, failed power distribution path, or incorrect rack variant, swapping individual monitoring cards will not solve the problem. The rack is effectively the electrical highway for the entire monitoring assembly.
- Turbine monitoring: Provides the rack infrastructure for VM600 protection and condition-monitoring cards used around steam or gas turbine systems.
- Compressor trains: Houses vibration acquisition, relay, processing, and communication cards needed for machinery monitoring.
- Pump and motor protection: Supports modular configurations where vibration, speed, and other machinery measurements are brought into a central rack.
- Legacy maintenance: A practical replacement for damaged or mechanically worn system racks where the existing processing and I/O cards remain serviceable.
The ABE040 architecture places processing modules at the front and associated I/O modules at the rear, giving technicians access to field wiring without disturbing the front processing-card arrangement.
Brief Field Case
A common maintenance mistake is to replace a failed RPS6U and assume the rack is cleared. If several cards still show abnormal behavior, inspect the backplane, power-distribution connections, and rack supply-status relay. A rack-level fault can affect multiple cards at once, making the symptoms look like several independent module failures.
ABE040
Related Products
- Vibro-Meter -ABE040 204-040-100-011 — Subject rack configuration. Provides the system backplane and mounting structure for the installed card set.
- Vibro-Meter -ABE042 204-042-100-011 — Closely related ABE042 rack. Its primary mechanical distinction is the position of the mounting brackets, so cabinet dimensions and mounting arrangements must be checked before substitution.
- Vibro-Meter RPS6U 200-582-200-011 — Rack power supply installed in ABE04x racks. It supplies the cards and is complementary to the ABE040 rather than a replacement for it.
- Vibro-Meter XMV16 620-001-001-116 / 600-003 — Extended vibration monitoring card providing 16 dynamic and four tachometer channels. It installs in the rack’s processing-card section.
- Vibro-Meter XIO16T 620-002-000-113 — Associated I/O card for XMV16 configurations. It occupies the rear card position and provides field interfaces.
- Vibro-Meter MPC4 — machinery protection/condition-monitoring processing card. It uses the ABE040 rack as its system-level mounting and interconnection platform.
- Vibro-Meter CMC16 — condition-monitoring card. It provides monitoring functionality within the rack rather than rack infrastructure itself.
- Vibro-Meter IOC4T — input/output card used with compatible processing modules. It provides field connections while the supplies the rack-level interconnection.
- Vibro-Meter CPUM — rack-controller/CPU hardware. It can be installed within the ABE04x system architecture for rack-level processing and communications.
- Vibro-Meter RLC16 — relay card for protection/status functions. It relies on the rack’s power and backplane infrastructure.
The Engineer’s Guide: Field Pitfalls to Avoid
WARNING 1 — variants are not automatically mechanically identical.
versions have different ordering numbers, including configurations for standard, varnished, separate-circuit, and regional certification requirements.
How to avoid it: Match the complete 204-040-100-011 number. Do not approve a replacement simply because the label says “.”
WARNING 2 — Do not overlook the backplane when troubleshooting multiple card faults.
The ‘s integrated VME backplane provides the electrical interconnections among the installed modules.
How to avoid it: If several cards simultaneously lose power, communication, or expected status, inspect rack power distribution and backplane connections before condemning individual cards.
WARNING 3 — Check RPS6U configuration and rack loading.
The ABE04x rack can accommodate one or two RPS6U power supplies. One 330 W can support a full rack under specified conditions up to 50°C; two supplies may be used for redundancy or broader environmental operating conditions.
How to avoid it: Calculate the installed-card power requirement and verify the actual configuration before changing the rack or power architecture.
Frequently Asked Questions (FAQ)
What is – 204-040-100-011?
It is a Vibro-Meter /VM600Mk2 6U system rack used to house and electrically interconnect machinery-protection and condition-monitoring modules. The rack incorporates a VME backplane and provisions for power supplies.
Is 204-040-100-011 a vibration monitoring card?
No. It is the rack/chassis and backplane assembly. Cards such as XMV16, MPC4, CMC16, IOC4T, and relay modules provide the actual monitoring, protection, processing, and I/O functions.
How many modules can the hold?
Published descriptions differ slightly depending on whether the discussion concerns single-width cards or card-pair configurations. The important engineering point is that the provides multiple module positions and supports combinations of single-width and multi-width cards.
For a replacement project, use the existing rack population and card widths as the acceptance reference rather than relying on a generic slot-count statement.
Can be used with both and VM600Mk2?
The 204-040-100-011 configuration is identified for the VM600Mk2/ system-rack family. However, individual cards and rack generations have their own compatibility requirements.
Check the installed card ordering numbers before mixing generations.
What is the difference between and ABE042?
The two racks are closely related. The primary mechanical difference is the position of the mounting brackets.
That sounds minor until the rack is being installed in an existing cabinet. Measure the mounting position before approving an ABE042 as a replacement for an .
Can the use two power supplies?
Yes. The architecture permits one or two rack power supplies. Two supplies can provide redundancy or support a different power-loading/environmental arrangement.
Do not assume that simply adding a second supply automatically creates a redundant system; the actual rack wiring and system configuration need to support the intended arrangement.
What should I request when buying a replacement ?
For a critical spare, request:
- Exact 204-040-100-011 identification.
- Front and rear photographs.
- Backplane connector condition.
- Rack mounting-bracket configuration.
- quantity and configuration.
- Power-status relay condition.
- Physical inspection for bent pins or damaged VME connectors.
- Confirmation of /VM600Mk2 compatibility.
- Warranty and condition statement.
For a used rack, pay particular attention to the VME backplane connectors. A rack can look clean from the front while having oxidation, bent contacts, or mechanical damage at the card interfaces—the kind of fault that can turn a straightforward card replacement into a much longer troubleshooting job.
