Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX / Schneider Electric |
| Model | DI3506X |
| Product Type | Digital Input Module |
| System Platform | Tricon Safety Instrumented System |
| Input Type | Discrete digital input |
| Channel Count | 32 input points |
| Input Voltage | 120 VAC class |
| Architecture | Triple Modular Redundant (TMR) |
| Isolation | Field-to-system isolation |
| Diagnostics | Channel and module-level fault diagnostics |
| Communication Interface | Tricon internal safety bus |
| Mounting | Tricon controller chassis |
| Application | SIS, ESD, process shutdown, safety monitoring |
| Operating Environment | Industrial process control cabinets |
Product Introduction

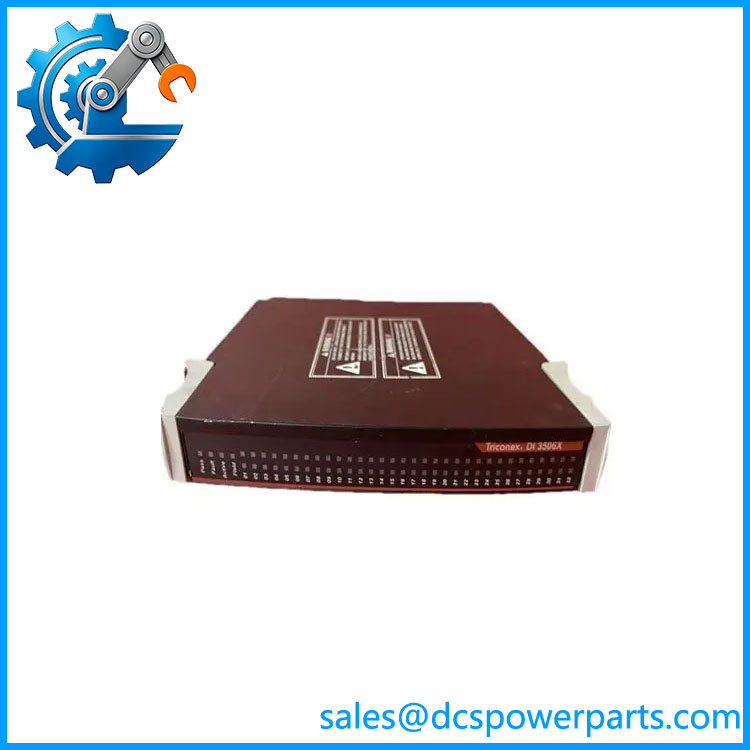

TRICONEX DI3506X Overview
The TRICONEX DI3506X is a digital input module designed for use in Tricon safety instrumented systems where reliable monitoring of discrete field signals is required. It provides the interface between field devices and the Tricon controller, allowing safety logic applications to process critical on/off signals from plant equipment.
The TRICONEX DI3506X operates within the Tricon Triple Modular Redundant (TMR) architecture. Unlike standard PLC digital input cards, the module is designed around fault tolerance and continuous diagnostics. Each input channel is monitored through redundant processing paths, allowing the system to identify internal faults while maintaining operation according to the configured safety strategy.
The TRICONEX DI3506X is commonly installed in applications involving emergency shutdown systems, safety interlocks, and critical process monitoring. Typical connected devices include limit switches, pressure switches, trip contacts, alarm contacts, and other discrete field instruments. Replacement requires verification of the exact Tricon hardware configuration, input voltage type, chassis position, and application database.
DI3506X
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A safety system reports a digital input channel fault or unexpected field status change. The controller remains online, but operators receive inconsistent indications from shutdown devices or protective switches.
The troubleshooting path should include:
- Field contact condition
- Terminal wiring
- Input voltage measurement
- Module diagnostics
- Controller event logs
- Safety application configuration
The TRICONEX DI3506X is part of a safety chain, meaning a small wiring or configuration issue can appear as a module-related fault.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for monitoring:
- Emergency stop circuits
- Shutdown pushbuttons
- Valve position feedback
- Trip relay contacts
Oil and Gas Facilities
Applied in:
- Refinery protection systems
- Offshore platforms
- Compressor protection packages
- Pipeline safety systems
Chemical Processing Plants
Used for:
- Reactor protection
- Safety interlocks
- Process trip monitoring
Power Generation
Applied in:
- Turbine protection systems
- Boiler safety circuits
- Auxiliary equipment shutdown systems
Technical Pitfalls to Avoid
1. Confirm Input Voltage Class
The belongs to a specific digital input voltage category. Installing a module with an incorrect input rating can create false states or damage the interface.
2. Verify Tricon Hardware Revision
TRICONEX modules may have hardware revisions that affect compatibility with existing chassis configurations and firmware releases.
Confirm:
- Controller model
- Main processor firmware
- I/O configuration database
- Module revision
3. Check Field Circuit Design
Digital input faults often originate from:
- Failed field contacts
- Incorrect common wiring
- Blown field fuses
- External relay problems
Replacing the input module should not be the first assumption.
4. Maintain Safety Configuration Records
Before replacement, preserve:
- I/O point mapping
- Logic documentation
- Alarm settings
- Cause-and-effect documentation
A hardware replacement without configuration verification can affect safety system availability.
