Triconex 7400056-110
Product Overview
The Triconex 7400056-110 is the 2551-1 DI External Terminator, an external termination assembly used with the Triconex 2551 digital input architecture. Current component references identify 7400056-110 specifically as the 2551-1 termination assembly, while other Triconex parts listings distinguish it from the 7400056-310 and 7400056-360 assemblies used with other 2553 configurations.
This distinction is important in a Triconex installation. The 7400056-110 is not the digital-input processing module itself. It provides the field-side termination/interface associated with the 2551 input arrangement. Current documentation describes the assembly as a DI external terminator, with a reported 115 V configuration. One detailed listing identifies the model as 2551-1, assembly number 7400056-110, revision 03, and 115 V.
For maintenance engineers, the practical role is therefore straightforward: it connects the external digital-input field wiring to the associated Triconex I/O architecture while preserving the termination arrangement expected by the 2551 system. The exact wiring, channel allocation, commons, fusing, and field-device interface must still be checked against the installed Triconex documentation. A 24 VDC termination assembly with a similar physical appearance is not an acceptable substitute simply because it belongs to the same Triconex family.
The 7400056-110 also needs to be distinguished from the 7400056-310 and 7400056-360 assemblies. Those numbers are associated with 2553 digital-input configurations, including 24 VDC variants. This is a good example of why Triconex spare procurement should use the complete assembly number rather than a shortened “7400056” family reference.
Product Introduction
A termination assembly can look like a passive accessory until a field signal disappears at the controller. In a safety-system cabinet, incorrect termination can produce misleading diagnostics, unavailable channels, or an input state that does not correspond to the field device.
The Triconex 7400056-110 is specifically associated with the 2551-1 DI external termination and a reported 115 VAC configuration.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 2551-1 |
| Part Number | 7400056-110 |
| Manufacturer / Brand | Triconex |
| Product Type | DI external terminator |
| Primary Function | Digital-input field termination |
| Associated I/O Module | Triconex 2551 |
| Reported Field Voltage | 115 VAC |
| Assembly Revision | Rev. 03 commonly reported |
| System Role | External interface between field wiring and Triconex DI architecture |
| Processor | None; this is a termination assembly |
| Firmware | Not applicable |
| Communication Protocol | Not applicable |
| Installation | Triconex system field termination/interface arrangement |
| Channel Count | Not reliably verified for this exact assembly |
| Input Current | Not reliably verified |
| Isolation Rating | Not reliably verified |
| Operating Temperature | Not reliably verified |
| Protection Rating | Not reliably verified |
The 2551-1, 7400056-110, and 115 V identification is directly reported by current component documentation.
Do not transfer the specifications of the related 2553 termination assemblies to this part. Current references list 7400056-310 and 7400056-360 separately as 2553 digital-input termination assemblies, with the latter specifically associated with a 24 V digital-input configuration.

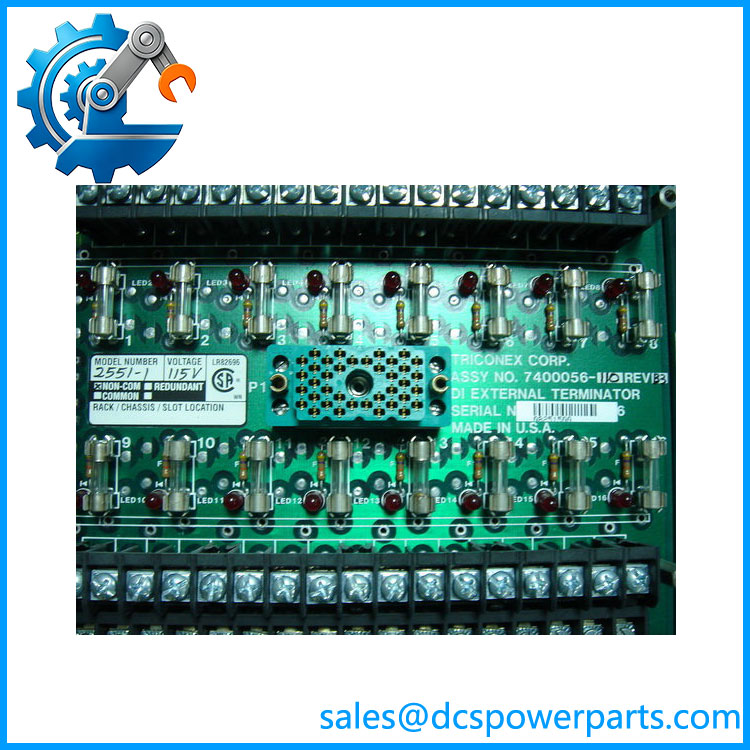

Triconex 7400056-110
Major Features and Practical Advantages
Dedicated 2551 digital-input termination
The primary function of 7400056-110 is field termination for the Triconex 2551 digital-input architecture. It is therefore part of the I/O signal path rather than a processor, communication card, or standalone digital-input module.
This matters during troubleshooting. Replacing the input module while leaving a defective termination assembly or field interface in place may not resolve the actual signal problem.
115 VAC configuration
The documented 115 V designation is the most important electrical identifier for this assembly. A termination assembly intended for a 24 VDC digital-input configuration should not be substituted merely because the connector arrangement appears similar. The Triconex 2553 family uses different termination assemblies, including 24 V variants.
External termination architecture
The “external terminator” designation indicates that the assembly sits outside the primary I/O processing hardware. It provides the physical interface between field wiring and the Triconex input system.
For plant maintenance, this makes the termination assembly part of the signal-integrity chain. Field wiring, terminal condition, jumper configuration, commons, and the associated input module all need to be considered together.
Legacy Triconex support
The 7400056-110 is relevant primarily to installations retaining the older 2551 architecture. Keeping an exact termination spare can reduce the need to modify field wiring during maintenance.
There is little engineering value in replacing an exact termination assembly with a generic terminal board unless the complete electrical interface has been redesigned and validated.
Revision-specific identification
Current listings commonly identify the assembly as Rev. 03. For a safety-related installation, the revision should be recorded rather than assuming all 7400056-110 assemblies are identical.
Related Products
- Triconex 2551-1 — The digital-input termination configuration associated with 7400056-110. The two identifiers should be checked together during procurement.
- Triconex 2551 — Associated digital-input assembly within the same architecture; 7400056-110 provides its external termination interface.
- Triconex 7400056-310 — Digital-input external terminator associated with the 2553-1 24 VDC configuration; not a direct electrical substitute for the 115 V 7400056-110.
- Triconex 7400056-360 — 2553-6 24 V digital-input external terminator; different system configuration from 7400056-110.
- Triconex 2553 — Digital input assembly associated with the 7400056-310/360 termination family.
- Triconex 2553-1 — 24 VDC digital-input configuration using 7400056-310.
- Triconex 2553-6 — 24 V digital-input configuration associated with 7400056-360.
- Triconex 7400058-110 — External termination assembly associated with the 2551 digital-output/other I/O termination family; do not confuse it with the 7400056-110 DI assembly.
- Triconex 7300057-100 — 24 V digital-input external terminator identified for another Triconex input configuration.
FAQ
What is Triconex 7400056-110?
It is the 2551-1 DI External Terminator, used as the field termination/interface assembly for the Triconex 2551 digital-input architecture.
Is 7400056-110 a Triconex digital input module?
No. It is a digital-input external termination assembly. The associated 2551 hardware performs the input processing. Treating the 7400056-110 as the actual input electronics can lead to an incorrect replacement decision.
What voltage does 7400056-110 use?
Current part-specific documentation identifies the 2551-1 / 7400056-110 configuration as 115 V.
Do not confuse it with 7400056-310 or 7400056-360, which are associated with 2553 digital-input configurations and include 24 V variants.
Can I replace 7400056-110 with 7400056-310?
Not as a direct substitution. The two assemblies belong to different Triconex input configurations and have different documented voltage/system associations. Verify the complete module and termination assembly combination before replacement.
Can I hot-swap the 7400056-110?
Do not assume hot replacement. Even though it is a termination assembly rather than a processor, it is connected to field circuits in a safety-control system. Follow the site’s approved Triconex maintenance procedure, isolate the appropriate field power, and verify the circuit state before disconnecting wiring.
Does 7400056-110 have firmware?
No firmware should be expected in the termination assembly itself. It is an external interface/termination component rather than a programmable processor module.
How do I verify the correct replacement?
Check the physical label for:
- 2551-1
- 7400056-110
- Assembly revision
- Voltage designation
- Associated Triconex input module
- Terminal arrangement
- Field wiring documentation
- Existing termination configuration
- Physical connector and mounting arrangement
- Test/inspection status of the replacement
For a safety-system spare, the complete assembly number and electrical configuration should take precedence over a generic “Triconex DI terminator” description.
Procurement Note
Triconex 7400056-110 is a termination assembly, not the 2551 input-processing electronics. The strongest current references identify it as 2551-1 DI External Terminator, 115 V, with Rev. 03 commonly shown.
The most important procurement distinction is between the 7400056-110 2551-1 configuration and the 7400056-310 / 7400056-360 2553 configurations. They share the 7400056 family number but should not be treated as interchangeable.
